Olympus EVIS X1 - Page 81

CV-1500
CV-190/190PLUS/290
MAJ-2363
81

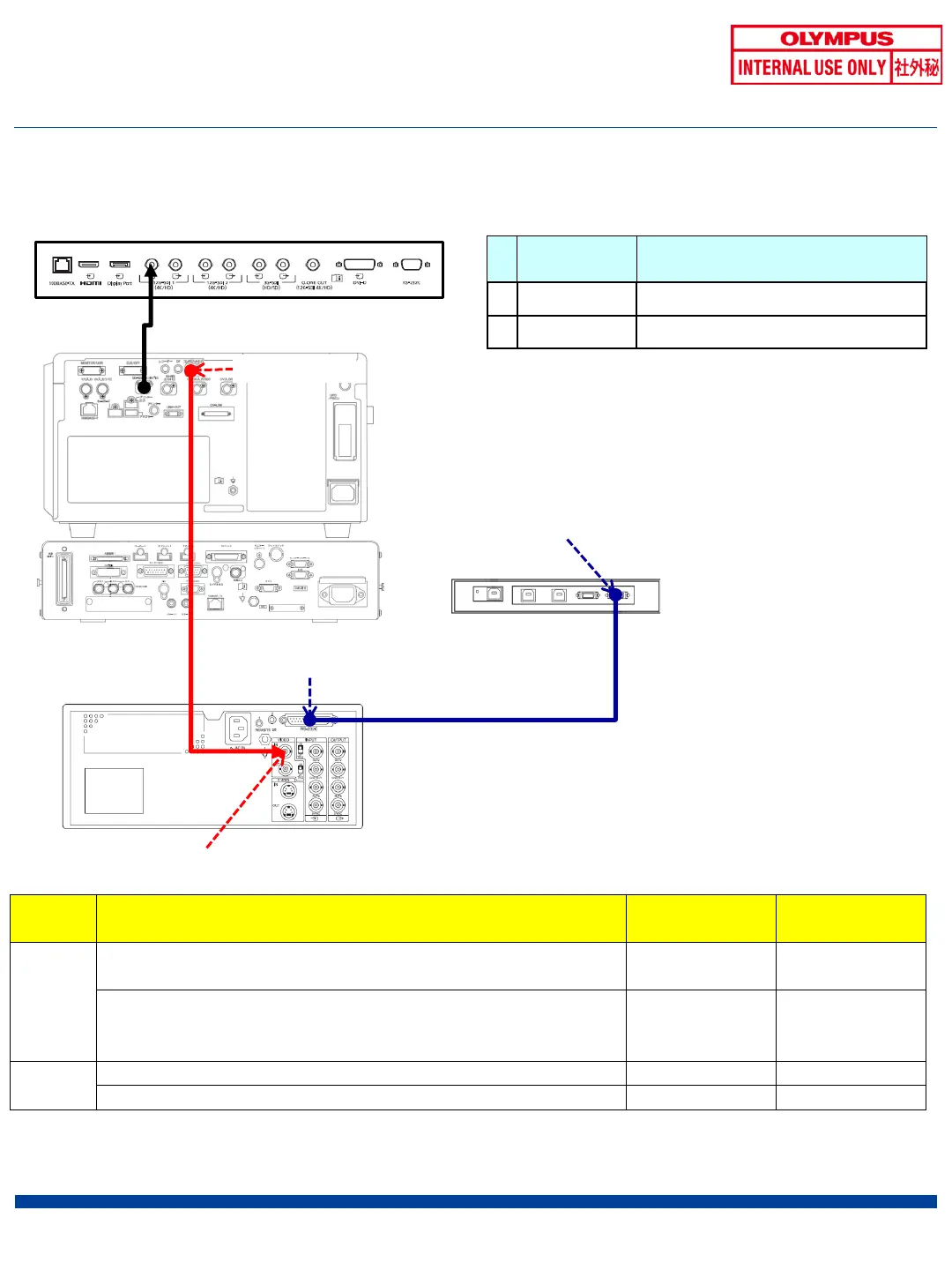

◆ CV-190/190PLUS/290+OEP-4 1
Composite output
VIDEO IN
RS-232C
PRINTER・IMH
1
2
#
Product
symbol
Name
1
MB-677 BNC cable (3M)
2
MH-995 Remote cable
<List of Cables>
OEV321UH
OEP-4
* For OEV321UH connection and setting
Refer to "CV-190/190PLUS/290+OEV321UH".
*
■ Precautions
・ Set in the order of "CV Communication Device Connecting Model" to "Video Printer Connecting Model".
In the opposite order of setting
If this is done, "Video printer type" will be "Not connected".
Setting
model
Step Default
Setting
parameter
CV
-
1500
Setting > System setting > Peripherals 1 > Video printer
type
Not connected
OEP-4
Setting> User Setting > Release/Pre
-freeze
>Release 1 save location or Release 2 save location
Portable
memory
Portable
memory
Video printers
OEP-4
BASIC SETUP>INPUT SEL
COMPONENT
VIDEO
INPUT SETUP>SD/HD SEL
AUTO AUTO
[SETTING INFORMATION]
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
