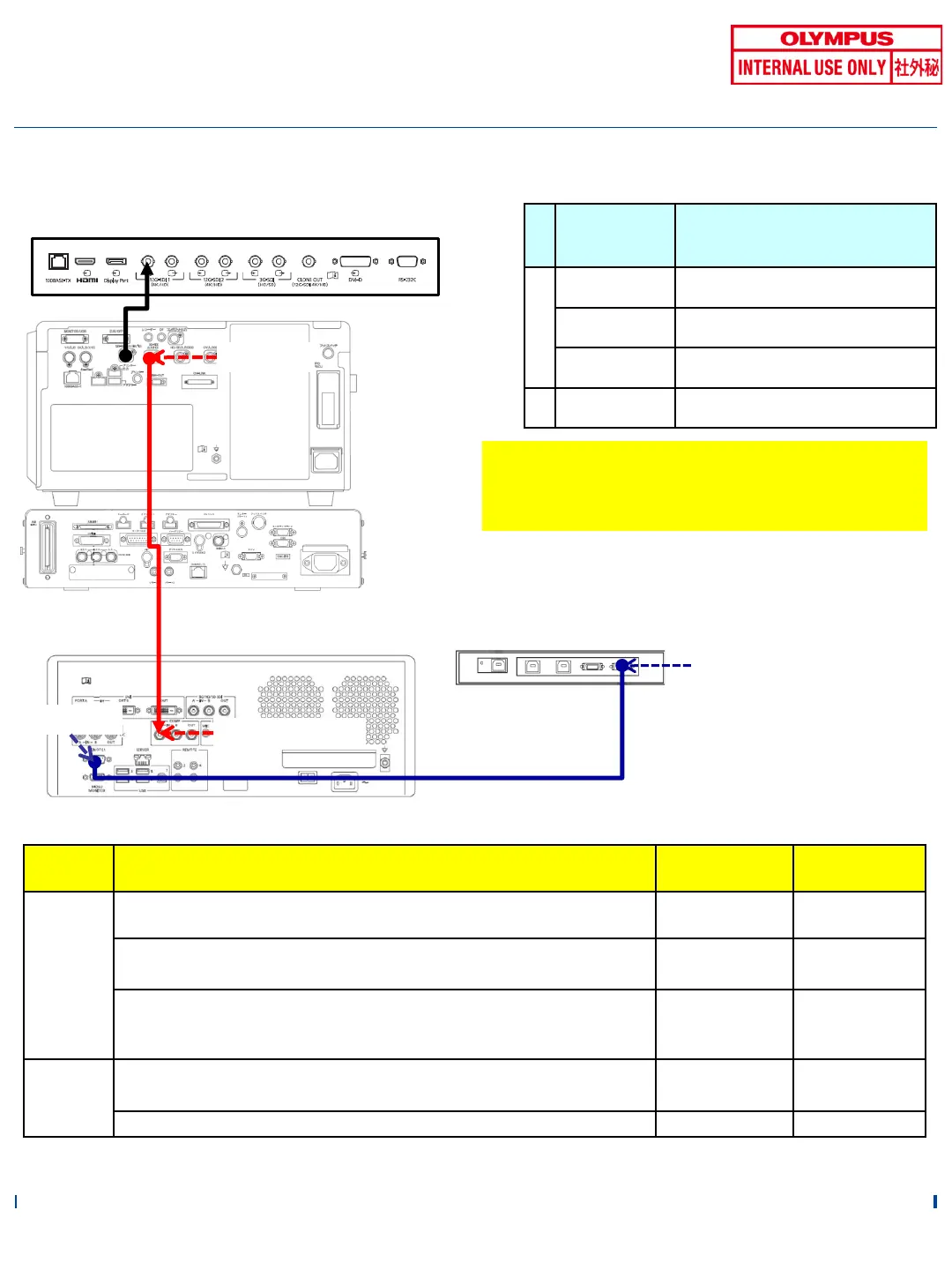

◆ CV-190/190PLUS/290+IMH-200 1
♯
Product
symbol
Name
1
MAJ-2430 3G-SDI cable (1.5M)
MAJ-2015 3G-SDI cable (3.0M)
MAJ-2016 3G-SDI cable (8.5M)
2 MAJ-1021 Remote cable
<List of Cables>
Setting
model
Step Default After change
CV-1500
Setting > System setup > Video output > 3G-SDI OUT
(HD/SD) signal
HD:1080p HD:1080p
Setting > System setup > Peripherals 1 > Video recorder type Not connected Option
Setting> User Setting > Release/Pre-freeze
>Release 1 save location or Release 2 save location
Portable
memory
Portable
memory
Video recorder
IMH-200
Settings > System Settings> Devices/Accessories > Devices
>REMOTE1
No Device
Processor
Type 1
Settings > Rec Function Setting > VIDEO > PORT A PORT A PORT A
! Caution!
Since IMH-200 is not compatible with 4K
format, set the CV output to HD:1080p.
■ Precautions
・ Set in the order of "CV Communication Device Connecting Model" to "Video Recorder Connecting
Model". Set in the opposite order of setting
When it is performed, the video recorder type will be not connected.
・ Turn on the IMH Remote Lock.
OEV321UH
IMH-200
1
*
3G-SDI out
3G/HD/SD SDI A IN
PRINTER/IMH
REMOTE 1
3
* For OEV321UH connection and setting
Refer to "CV-90/190PLUS/290+OEV321UH".
[SETTING INFORMATION]
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
