Omnia Omnia.9 Installation And Operation Manual

5


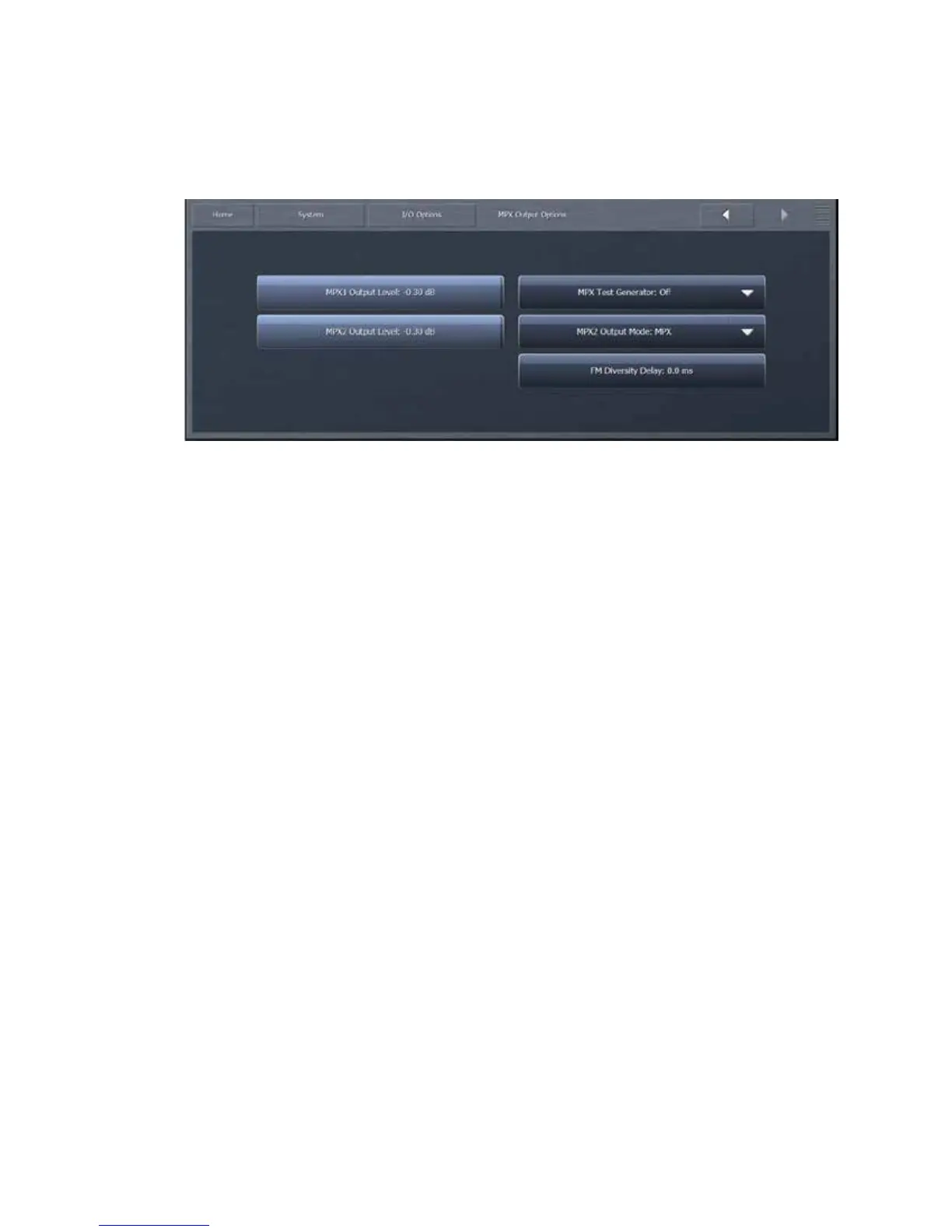

 IfyouareusingoneofOmnia.9’scompositeoutputs,returntotheI/OOptionsMenu,then
selectMPXOutputOptionstosetthelevelsoftheMPXOutputandadjusttheFMDiversity
Delay.

 Return to the Home menu, select one of the three internal inputs, select Source Audio,
selectSource,andusetheInputGainslidertosettheinputlevels.Whendrivingtheinput
with typical program material at normal operating levels, adjust the Input Gain while
watchingtheInputmetersintheProcessingdisplaywindowuntiltheorangepeakblipsare
between15and12dBFS.Theaveragelevelmetersshouldstayinthegreen.

 ReturntotheHomeMenu,selectFM,selectProcessing,thenselectLoadPresettochoose
oneofthefactorypresets."Rustonium"isthedefaultpresetandprovidesawellbalanced
soundwithcompetitiveloudness,suitablefornearlyanyformat.However,wesuggestyou
auditionallofthefactorypresetstogetafeelforeachofthem.
FrontPanelUserInterfaceOverview
Omnia.9’s front panel touch screen simultaneously provides access to the user interface and
displaysawealthofinformationaboutyourprocessingandsignal.
ControlssuchastheSpeakerandHeadphoneVolumelevelscanbeadjustedviathetouchscreenby
placingyourfingeronthecontrolandslidingleftorright.Doubletappingonaslidingcontrolwill
bringupanenlargedviewforeasieradjustment.
TappingonabuttonsuchastheMenucontrolopensupdropdownmenus,cyclesthroughaseries
ofoptions,ornavigatestoasubmenu.

Omnia Omnia.9 Specifications

General

Brand	Omnia
Model	Omnia.9
Category	Recording Equipment
Language	English
