Omron 3G3MX2 Series User Manual

1 - 3
1 Overview
Drive Programming User’s Manual (I580-E2)

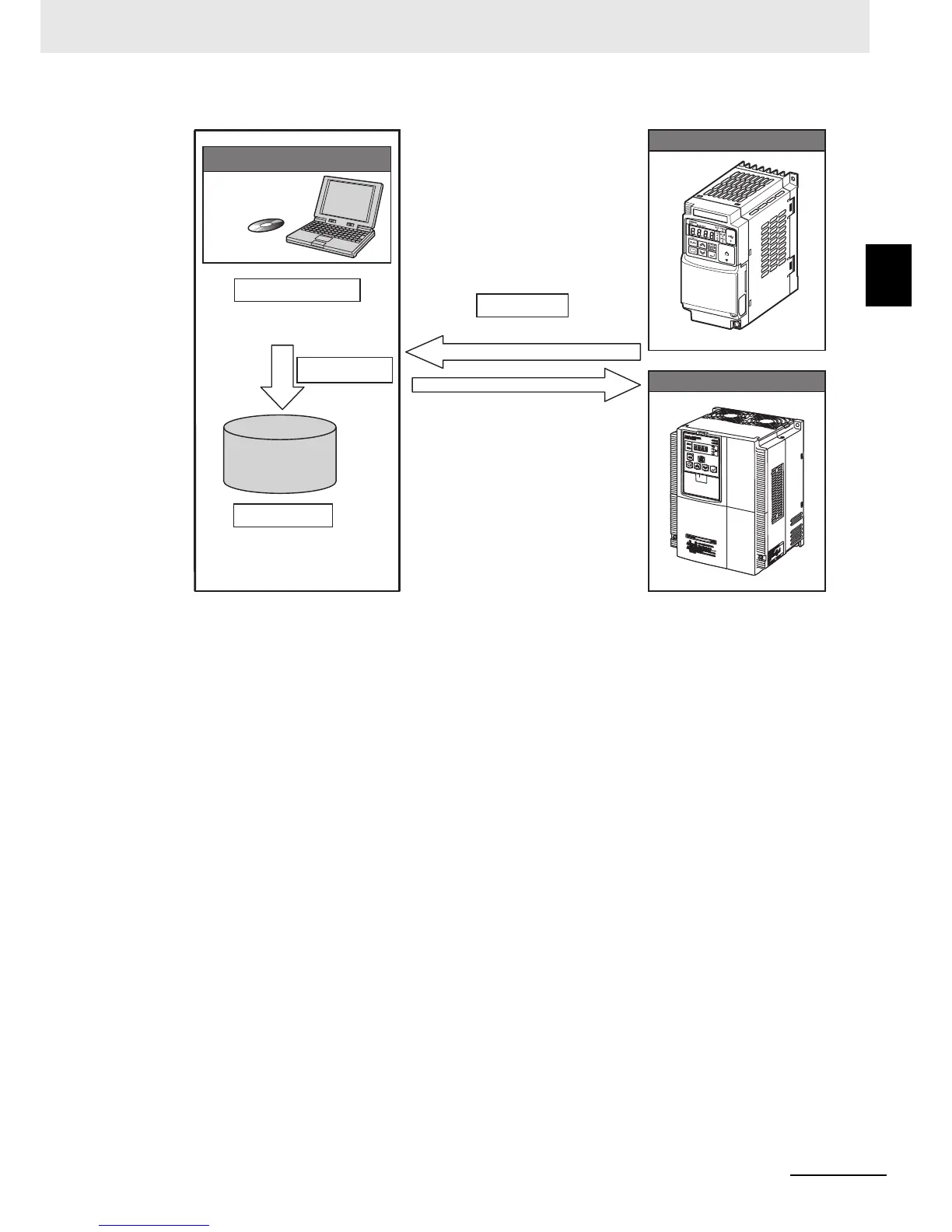

1-1 Overview of Drive Program-
ming
1
User Programs
Compilation
Download
Connect directly
or via
communications
Upload
(Drive Programming)
Programming
Debugging support
Transmission
Creation, editing and
saving of user programs
Program execution
Monitor
Parameter changed
CX-Drive
Ver. 2.7 or higher
Monitoring software
Ver. 2.0 or later
3G3RX Series Inverter
Ver. 2.0 or later
3G3MX2 Series Inverter

Omron 3G3MX2 Series Specifications

General

Frequency Range	0.1 to 400 Hz
Control Method	V/f Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Safety Standard	CE, UL, cUL
IP Rating	IP20
Output Voltage	3-phase 200-240V AC
Output Frequency	0.1 to 400 Hz
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault, Short circuit
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Braking Unit	Built-in
Communication	Modbus RTU
Communication Interface	RS-485
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload
