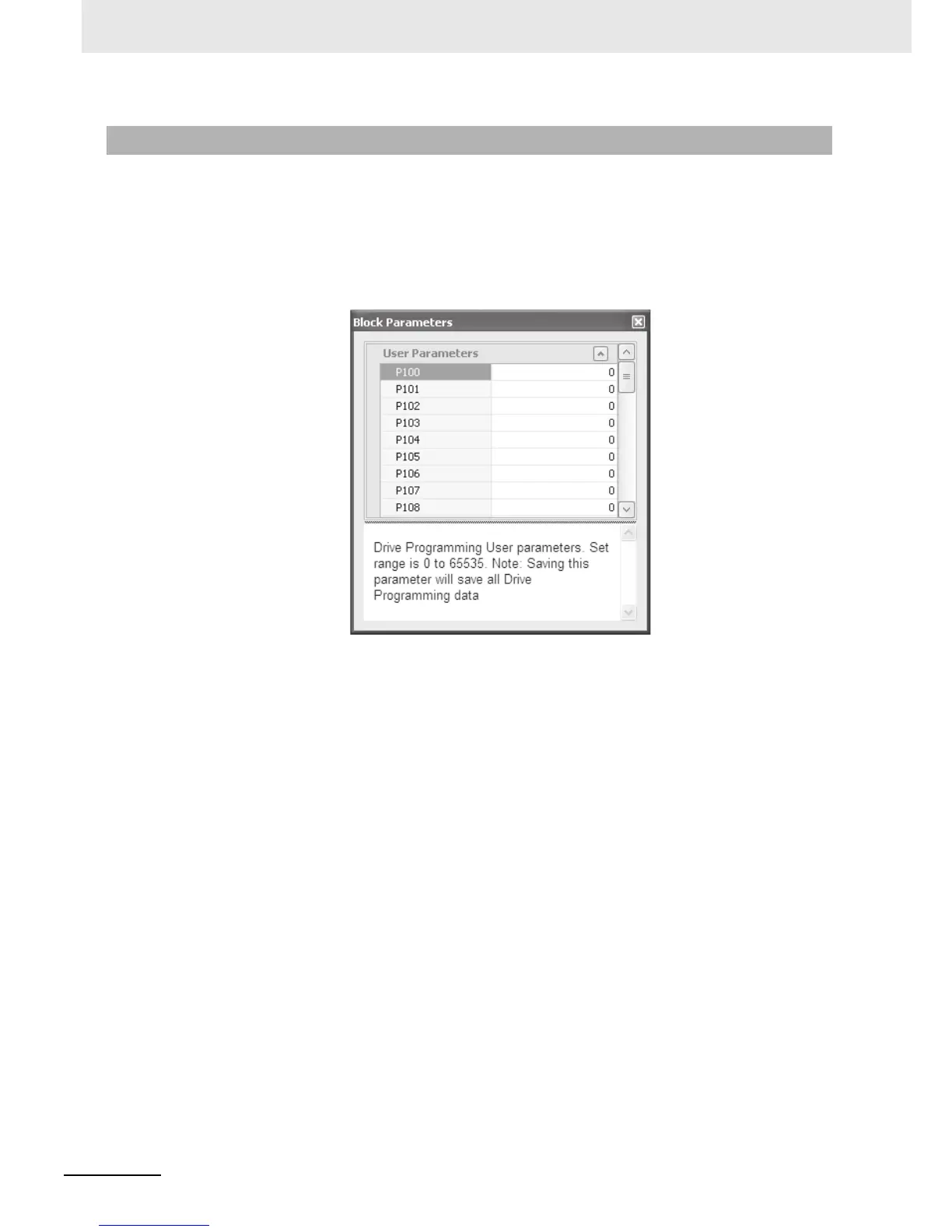

The Block Parameters window allows you to edit Drive Programming user parameters which act as
variables of the program. The displayed parameters are organized in categories.
The Block Parameters is displayed when the Drive Programming Editor is started. You can also show
or hide it by clicking [Drive Programming] - [Block Parameters] in the [View] Menu.
The Block Parameters window is displayed by default at the right side of the CX-Drive.
You can separate the window by double-clicking the title bar (wide frame of the window).
To change the value of a parameter, place the cursor at its row and click on the edition box to the right
of its number. Enter the new value. A warning will be displayed if the entered value exceeds the valid
range.
At the lower part of the window, a help text for the user parameters is displayed.
4-2-5 Block Parameters Window

Omron 3G3MX2 Series Specifications

General

Frequency Range	0.1 to 400 Hz
Control Method	V/f Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Safety Standard	CE, UL, cUL
IP Rating	IP20
Output Voltage	3-phase 200-240V AC
Output Frequency	0.1 to 400 Hz
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault, Short circuit
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Braking Unit	Built-in
Communication	Modbus RTU
Communication Interface	RS-485
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload
