4 Drive Programming Editor
4 - 6
Drive Programming User’s Manual (I580-E2)

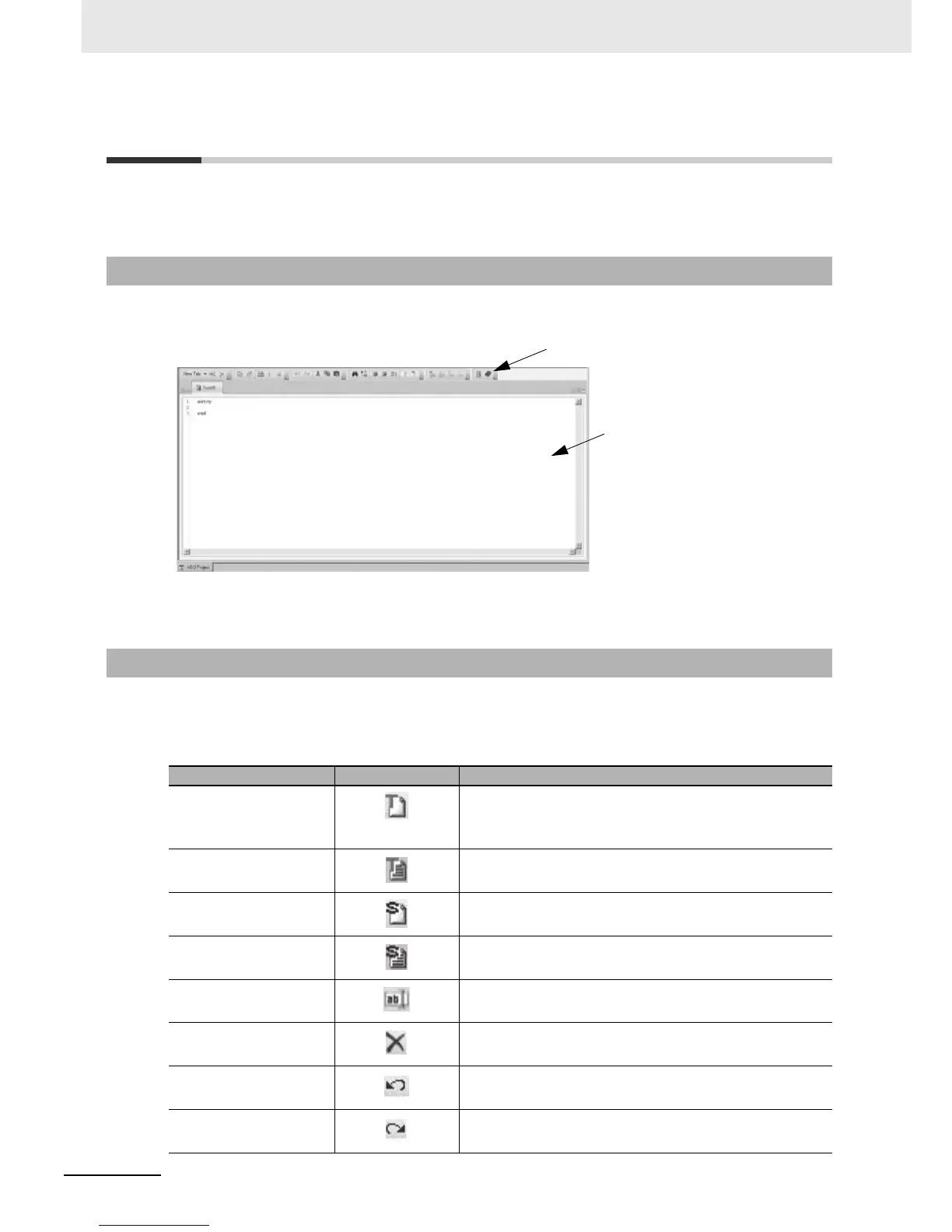

4-2 Parts of Drive Programming Editor
This section provides the detailed information on each function of the Editor and windows related to the
Drive Programming in the CX-Drive.
The Drive Programming Editor is the main widow for the Drive Programming function.
This window consists of the toolbar in which common commands are included and the Drive Program-
ming area in which the program is displayed as text or flowchart.
The Drive Programming Editor provides the following commands:
Common commands
4-2-1 Drive Programming Editor
4-2-2 Toolbar
Command Icon Description
New Task (flowchart) Creates a new flowchart task for the program. Task is a unit of
program executed in the Drive Programming.
New Task (text) Creates a new text task for the program. Task is a unit of pro-
gram executed in the Drive Programming.
New Subroutine (flow-
chart)
Creates a new flowchart subroutine. A subroutine is a part of
the program which is executed only when it is called.
New Subroutine (text) Creates a new text subroutine. A subroutine is a part of the
program which is executed only when it is called.
Rename Current Task Renames the current task or subroutine.
Delete Current Task Deletes the current task or subroutine.
Undo Undoes the latest change.
Redo Redoes the undone operation.
