4-2-4 Toolbox Window

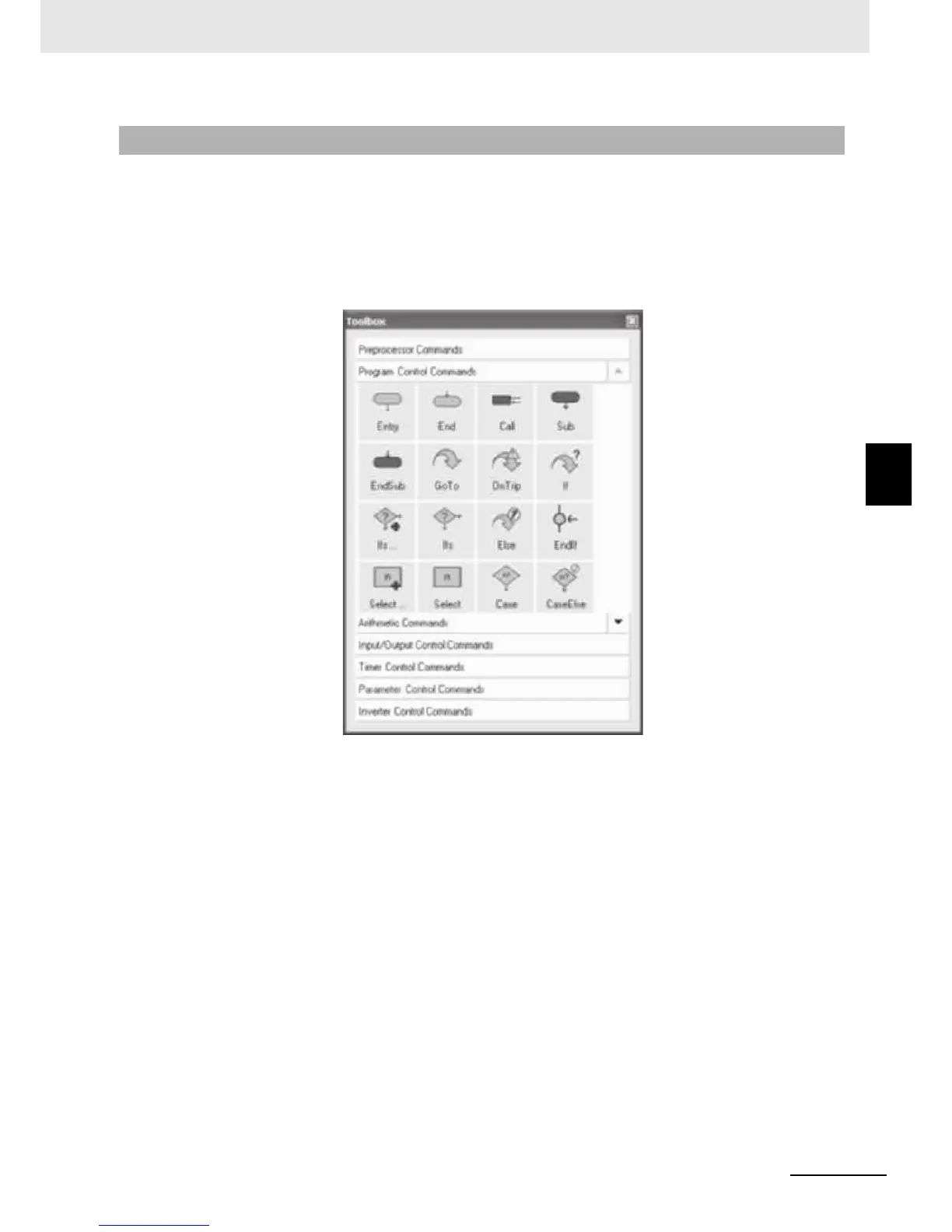

The Toolbox window allows you to add blocks to the Drive Programming area by drag and drop. It dis-
plays the blocks supported for a particular command, organized in categories.
The Toolbox is displayed when the Drive Programming Editor is started. You can also show or hide it by
clicking [Drive Programming] - [Toolbox] in the [View] Menu.
The Toolbox window is displayed by default at the right side of the CX-Drive.
You can separate the window by double-clicking the title bar (wide frame of the window).
You can also select its display style by right-clicking on it with the mouse. Three styles are available:
large icons, small icons, and list. In any style, a short help text will be shown when you place the mouse
cursor on a block.
Click on any category title to display the blocks which belong to that category.
