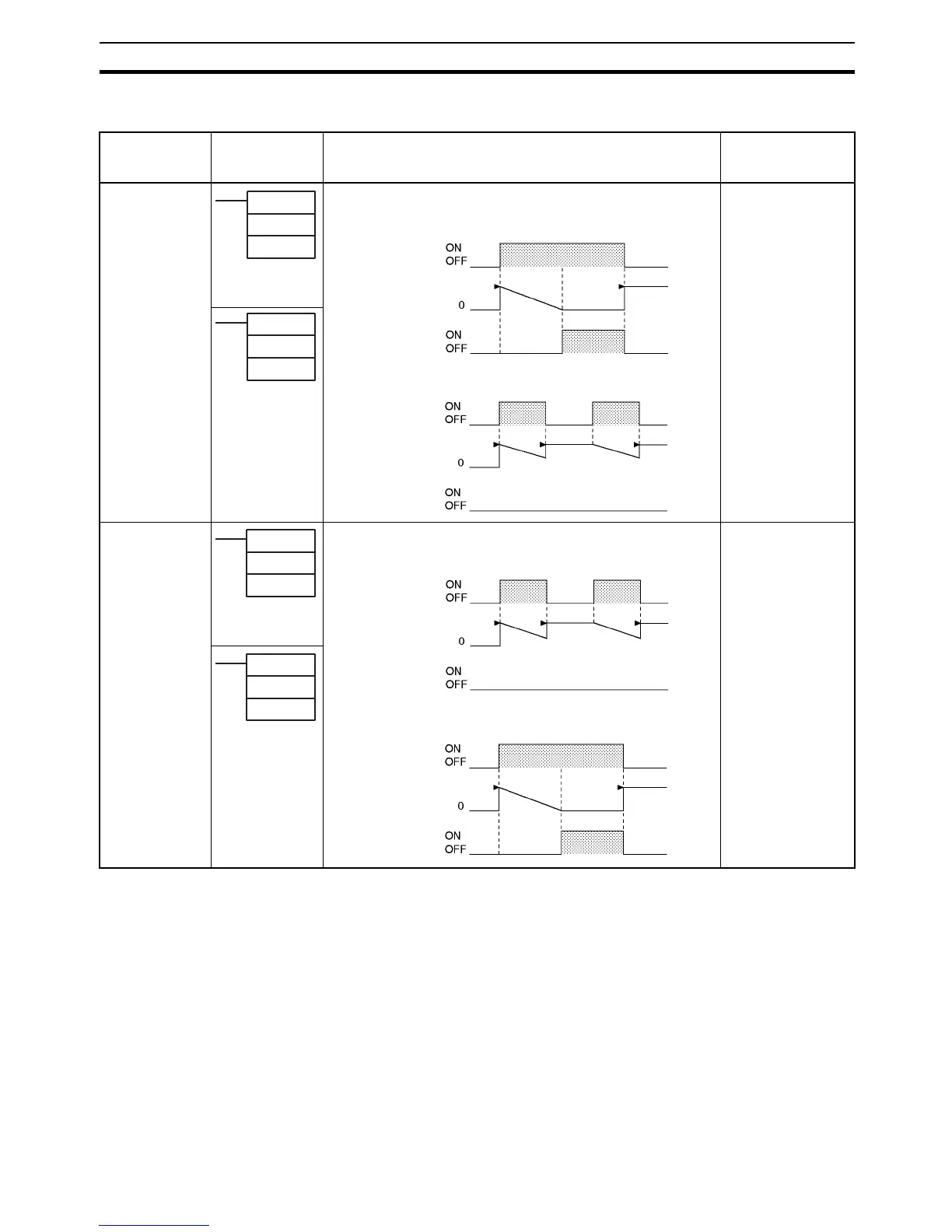

Timer and Counter Instructions
Section 3-4
3-4 Timer and Counter Instructions
Instruction
Mnemonic
Code
Symbol/Operand Function Location
Execution condition
HUNDRED-MS
TIMER
TIM
(BCD)
TIMX
(Binary)
(CS1-H, CJ1-H,
CJ1M, or CS1D
only)
Output
Required
TEN-MS TIMER
TIMH
015
(BCD)
TIMHX
551
(Binary)
(CS1-H, CJ1-H,
CJ1M, or CS1D
only)
Output
Required
TIM
N
S
N: Timer number
S: Set value
SV
SV
Timer input
Timer PV
Completion
Flag
Timer input
Timer PV
Completion
Fla
g
TIM/TIMX(550) operates a decrementing timer with units of 0.1-s.
The setting range for the set value (SV) is 0 to 999.9 s for BCD
and 0 to 6,553.5 s for binary (decimal or hexadecimal).
Timer Input Turned OFF before Completion Flag Turns ON
TIMX(550)
N
S
N: Timer number
S: Set value
TIMH(015)
N
S
N: Timer number
S: Set value
SV
SV
Timer input
Timer PV
Completion
Fla
g
Timer input
Timer PV
Completion
Flag
TIMH(015)/TIMHX(551) operates a decrementing timer with units
of 10-ms. The setting range for the set value (SV) is 0 to 99.99 s
for BCD and 0 to 655.35 s for binary (decimal or hexadecimal).
Timer Input Turned OFF before Completion Flag Turns ON
TIMHX(551)
N
S
N: Timer number
S: Set value
