Other Functions Section 6-11
The following table shows the corresponding settings when using a Program-
ming Console.
The input response times for the 80 slots in a CS/CJ PLC (Rack 0 Slot 0
through Rack 7 slot 9) can be set in the 80 bytes in addresses 10 through 49.
6-11-2 I/O Area Allocation
A Programming Device can be used to set the first word for I/O allocation in
Expansion Racks (CS/CJ Expansion Racks and C200H Expansion I/O
Racks). This function allows each Rack’s or each slot’s I/O allocation area to
be fixed within the range CIO 0000 to CIO 0999. (The first words are allocated
by rack number and slot number.)

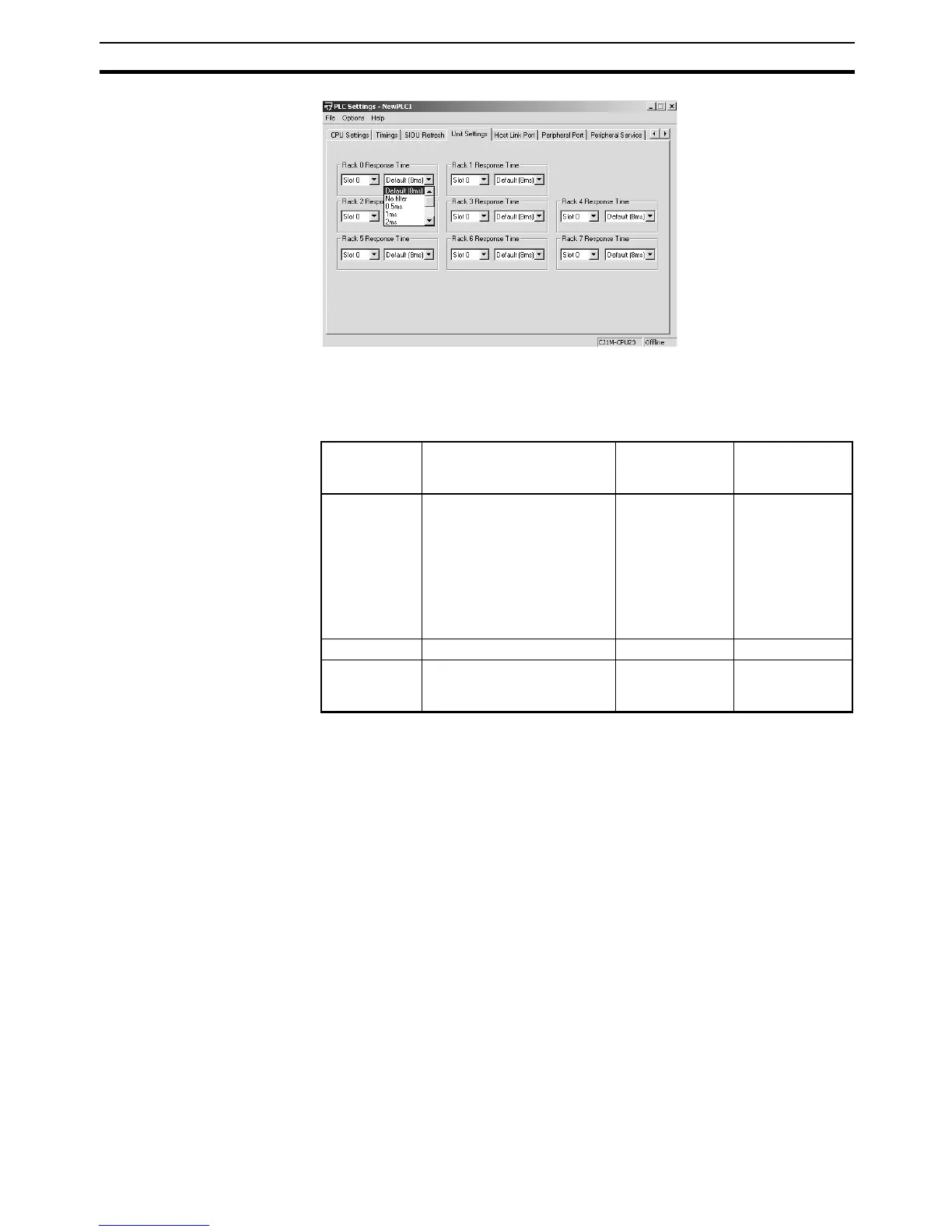

Set the first words in I/O tables from the CX-Programmer.
Programming
Console
address
Name Setting (Hex) Default (Hex)
+10, bits 0 to 7 CS/CJ Basic I/O Unit
Input Response Time for
Rack 0, Slot 0
00: 8 ms
10: 0 ms
11: 0.5 ms
12: 1 ms
13: 2 ms
14: 4 ms
15: 8 ms
16: 16 ms
17: 32 ms
00 (8 ms)
:: ::
49, bits 8 to 15 CS/CJ Basic I/O Unit
Input Response Time for
Rack 7, Slot 9
Same as above. 00 (8 ms)
