Manipulating Files Section 5-2
5-2-2 FINS Commands
The CPU Unit can perform the following file memory operations when it
receives the proper FINS command. These are similar to the Programming
Device functions.

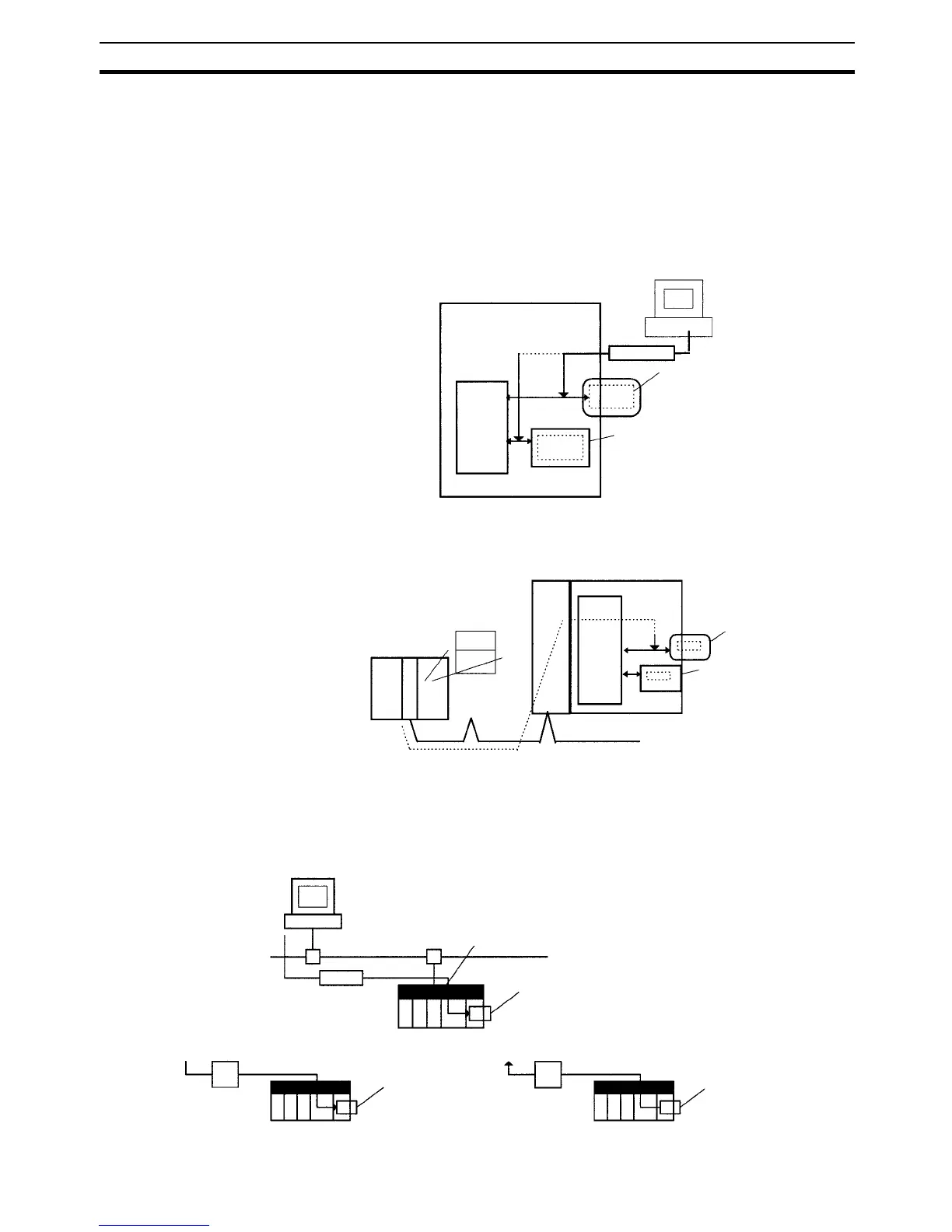

FINS Commands via Host Link
A computer connected via a Host Link System can send a FINS command
with a Host Link header and terminator.
FINS Command from Another Network PLC
Another PLC on a network can send FINS command using CMND(490).
Note A computer on an Ethernet Network can read and write file memory (Memory
Cards or EM file memory) on a CPU Unit through an Ethernet Unit. Data in
files can be exchanged if the host computer functions as an FTP client and
the CS/CJ-series PLC functions as an FTP server.
CPU Unit
I/O
memory
User
program
Parame-
ter area
Host computer
FINS command
Memory Card
EM file memory
Another PLC
on the network
CMND
instruction
CPU Unit
I/O
memory
User
program
Parame-
ter area
Memory Card
EM file memory
FINS command
Host computer (FTP client)
Ethernet
Ethernet Unit
FTP command
Memory Card or
EM file memory
Memory Card to computer
Memory Card or
EM file memory
File
Memory Card or
EM file memory
Computer to Memory Card
File
