Omron E5CK User Manual

7.6 Checking Indication Accuracy
E5CK
7–13
Ă• Preparation

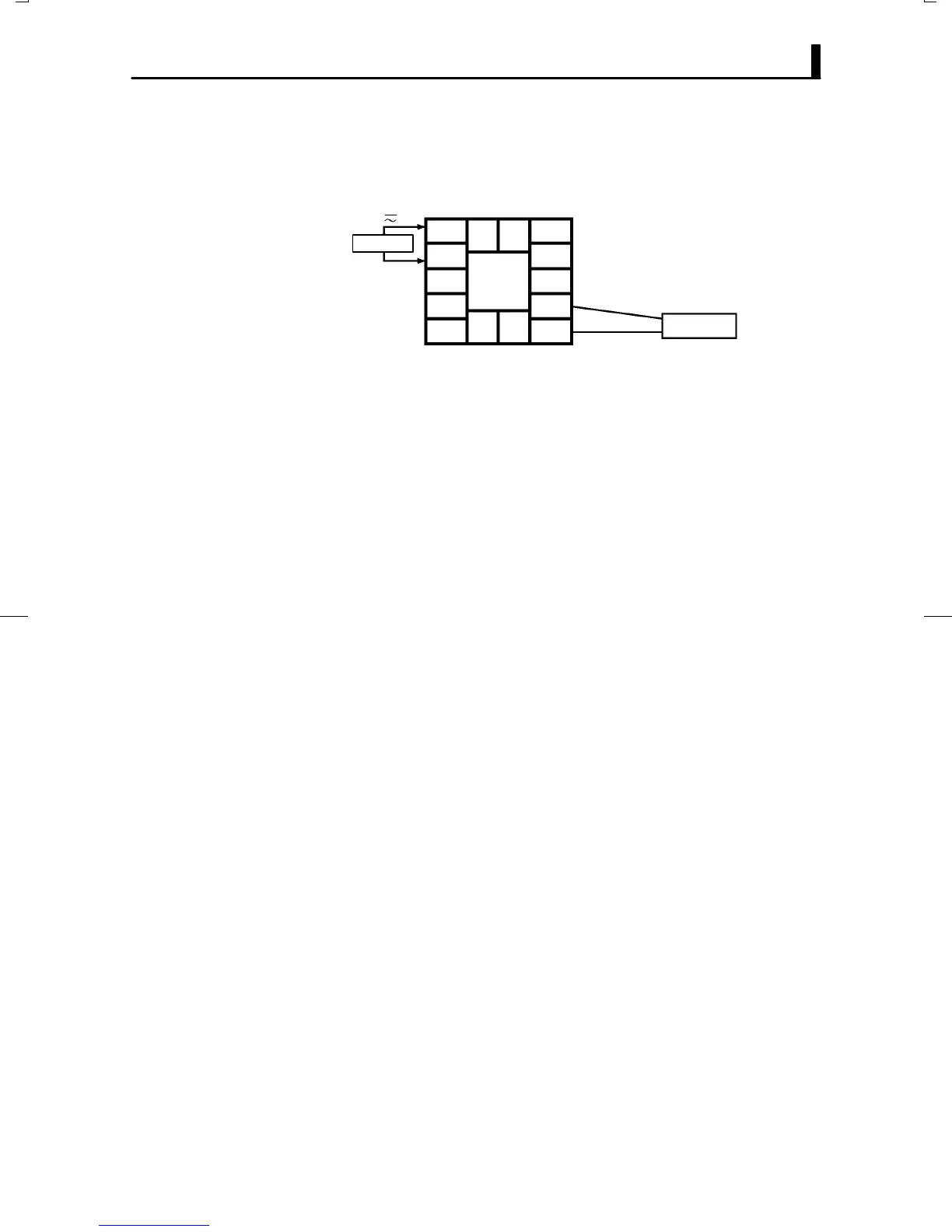

The following figure shows the required device connection.
10
9
8
7
6
5
4
3
2
1
1413
1211
STV
AC100-240V
(AC/DC24V )
~
SOURCE
Ă• Operation
Set the STV to the current value equivalent to the check value or set the
STV to the voltage value equivalent to the check value.
F Current input or
Voltage input

Omron E5CK Specifications

General

Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP20
Control Type	PID
Input Type	Thermocouple, RTD
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Mounting Type	Panel
Display Type	Digital
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Dimensions	48 x 48 x 78 mm
Ambient Operating Humidity	25% to 85% RH
