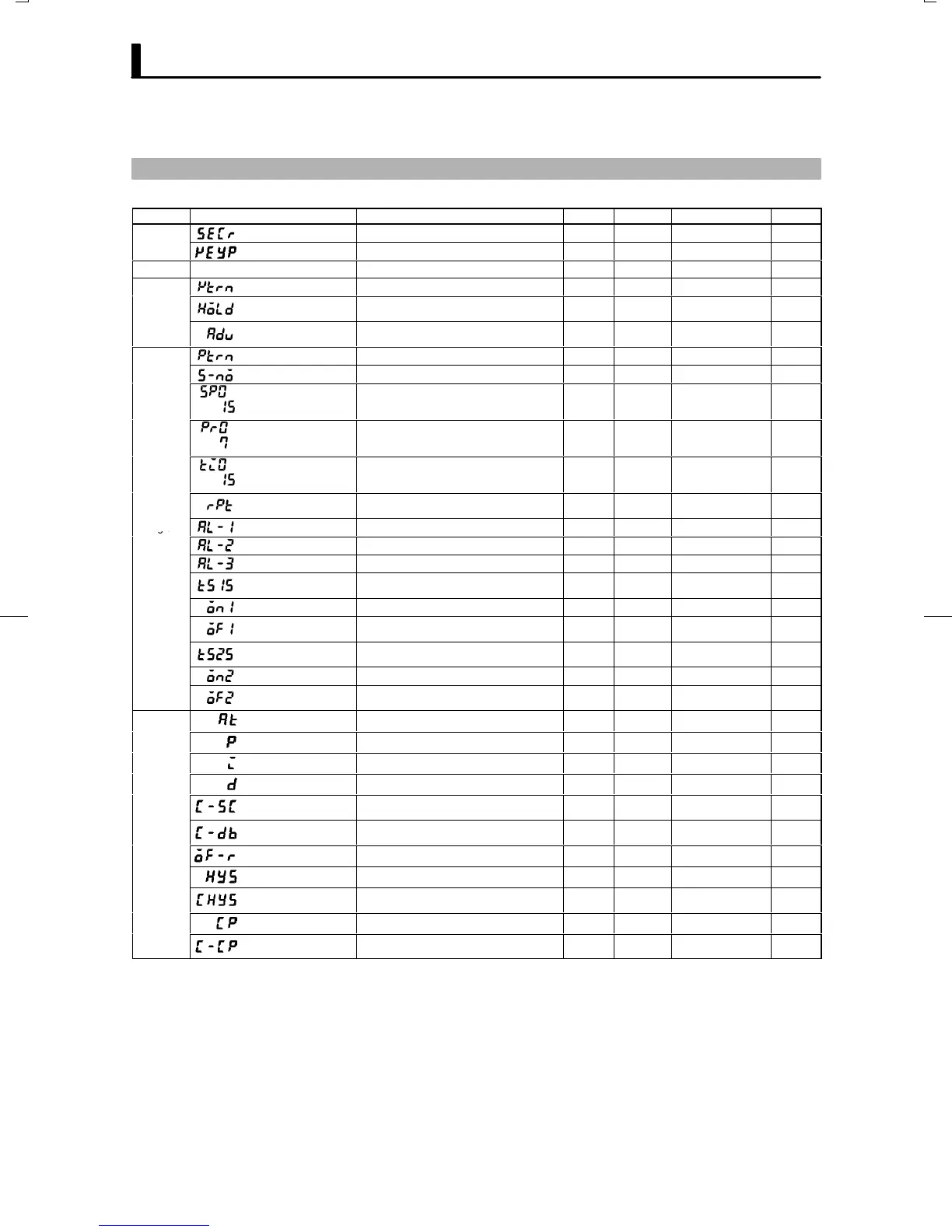

SETTING LIST
Mode Parameter Name Setting Range Unit Default Remarks Setting
Protect
Security 0 to 6 None 1
Protect
Key protect 0/1/2/3 None 0
Manual Manual MV -5.0 to 105.0 % 0.0
Pattern No. 0 to number of patterns -1 None 0
Level 0
Hold OFF/ON None OFF
At program opera-
tion
Advance OFF/ON None OFF
At program opera-
tion
Pattern No. 0 to number of patterns -1 None 0
Number of steps 1 to 16 None 8
to
Steps 0 to 15 SP/
Target SP 0 to 7
SP lower limit to SP upper limit EU 0
to
Ramp rate 0 to 7 0 to 9999 *3 0
to
Step 0 to 15 time/
Soak time 0 to 7
0.00 to 99.59 *4 0.00
Pattern execution
count
0 to 9999 Times 1
Program
Alarm value 1 -1999 to 9999 EU 0
Program
Alarm value 2 -1999 to 9999 EU 0
Alarm value 3 -1999 to 9999 EU 0
Time signal 1 enabled
step
0 to 15 None 0
Time signal 1 ON time 0.00 to 99.59 *4 0.00
Time signal 1 OFF
time
0.00 to 99.59 *4 0.00
Time signal 2 enabled
step
0 to 15 None 0
Time signal 2 ON time 0.00 to 99.59 *4 0.00
Time signal 2 OFF
time
0.00 to 99.59 *4 0.00
AT Execute/Cancel OFF/ AT-1/AT-2 None OFF
Proportional band 0.1 to 999.9 %FS 10.0
Integral time 0 to 3999 sec 233
Derivative time 0 to 3999 sec 40
Cooling coefficient 0.01 to 99.99 None 1.00
At heating and
cooling control
Level 1
Dead band -19.99 to 99.99 %FS 0.00
At heating and
cooling control
Manual reset value 0.0 to 100.0 % 50.0
Hysteresis (heat) 0.01 to 99.99 %FS 0.10
Hysteresis (cool) 0.01 to 99.99 %FS 0.10
At heating and
cooling control
Control period (heat) 1 to 99 sec 20
Control period (cool) 1 to 99 sec 20
At heating and
cooling control
*2
*2
*2
