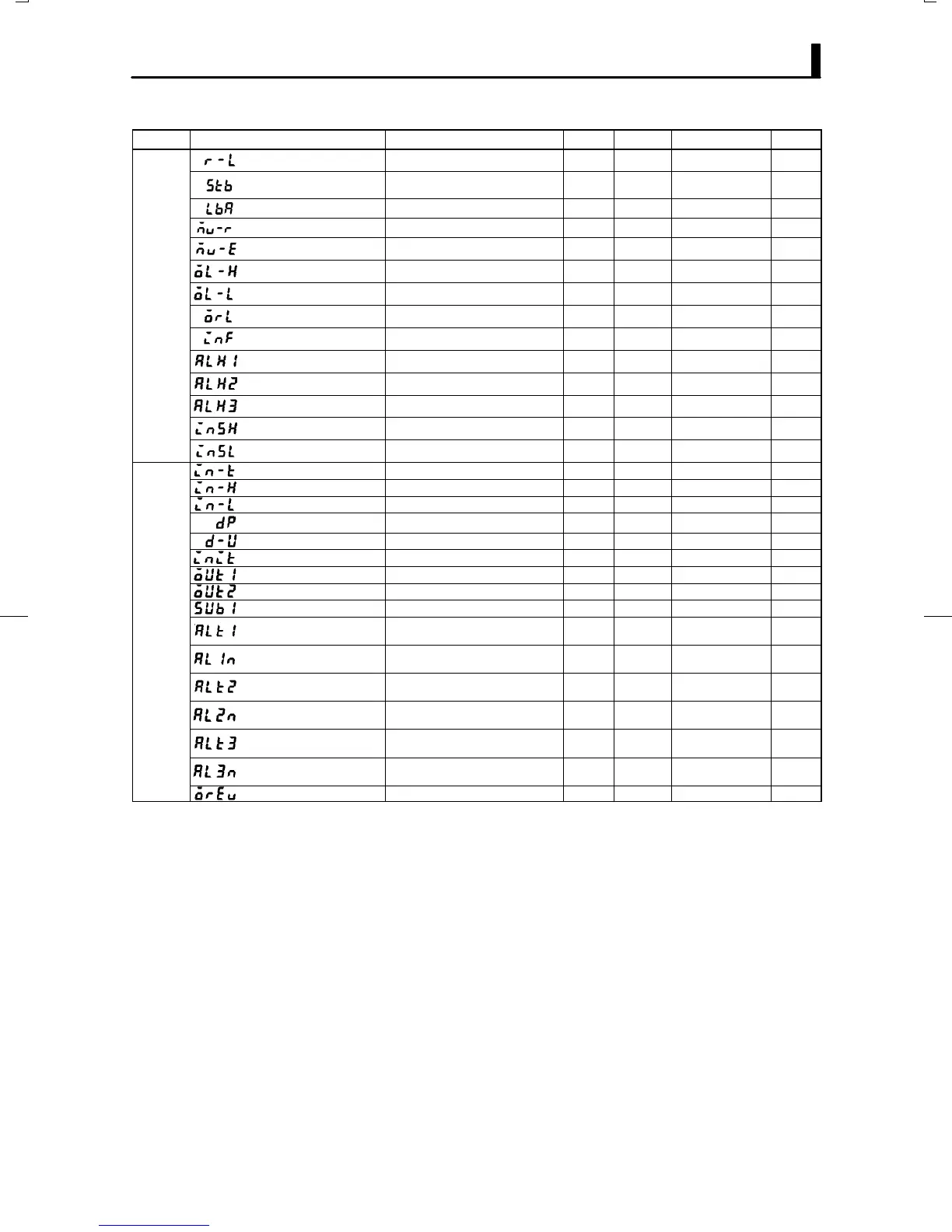

SETTING LIST
E5CK
A–7
Mode Parameter Name Setting Range Unit Default Remarks Setting
Remote/Local RMT/LCL None LCL
Standby time 0.00 to 99.59
Hour,
Min.
0.00
LBA detection time 0 to 9999 Sec 0
MV at reset -5.0 to 105.0 % 0.0
MV at PV error -5.0 to 105.0 % 0.0
MV upper limit MV lower limit +0.1 to 105.0 % 105.0
MV lower limit -5.0 to MV upper limit -0.1 % -5.0
Level 2
MV change rate limitter 0.0 to 100.0 %FS 0.0
Input digital filter 0 to 9999 sec 0
Alarm 1 hysteresis 0.01 to 99.99 %FS 0.02
Alarm 2 hysteresis 0.01 to 99.99 %FS 0.02
Alarm 3 hysteresis 0.01 to 99.99 %FS 0.02
Input shift upper limit -199.9 to 999.9 °C/°F 0.0 Temperature input
Input shift lower limit -199.9 to 999.9 °C/°F 0.0 Temperature input
Input type 0 to 21 None 2
Scaling upper limit Scaling lower limit +1 to 9999 None 100 Analog input
Scaling lower limit -1999 to scaling upper limit -1 None 0 Analog input
Decimal point 0 to 3 None 0 Analog input
C/F selection C/F None C Temperature input
Parameter initialize Yes/No None NO
Control output 1 assignment *7 None HEAT
Control output 2 assignment *7 None AL-1
Auxiliary output 1 assignment *8 None AL-2
Setup
Alarm 1 type 1 to 11 None 2
Output assignment
needed
Alarm 1 open in alarm N-O/N-C None N-O
Output assignment
needed
Alarm 2 type 1 to 11 None 2
Output assignment
needed
Alarm 2 open in alarm N-O/N-C None N-O
Output assignment
needed
Alarm 3 type 1 to 11 None 2
Output assignment
needed
Alarm 3 open in alarm N-O/N-C None N-O
Output assignment
needed
Direct/Reverse operation OR-R/OR-D None OR-R
*1 During heating and cooling control, the lower limit becomes Ć105.0%
*2 Use Program List" (page AĆ11) for the setting value of each step.
*3 EU/Time unit of ramp rate
*4 Program time unit
*5 During heating and cooling control, the setting range becomes 0.0 to 105.0%.
*6 During heating and cooling control, the setting range becomes Ć105.0 to 0.0%.
*7 HEAT/COOL/ALĆ1/ALĆ2/ALĆ3/HBA/LBA/TSĆ1/TSĆ2/PEND/STG
*8 ALĆ1/ALĆ2/ALĆ3/HBA/LBA/TSĆ1/TSĆ2/PEND/STG/S.ERR/E333
*1
*2
*5
*6
