3.4 Setting Alarm Type
E5CK
3–11

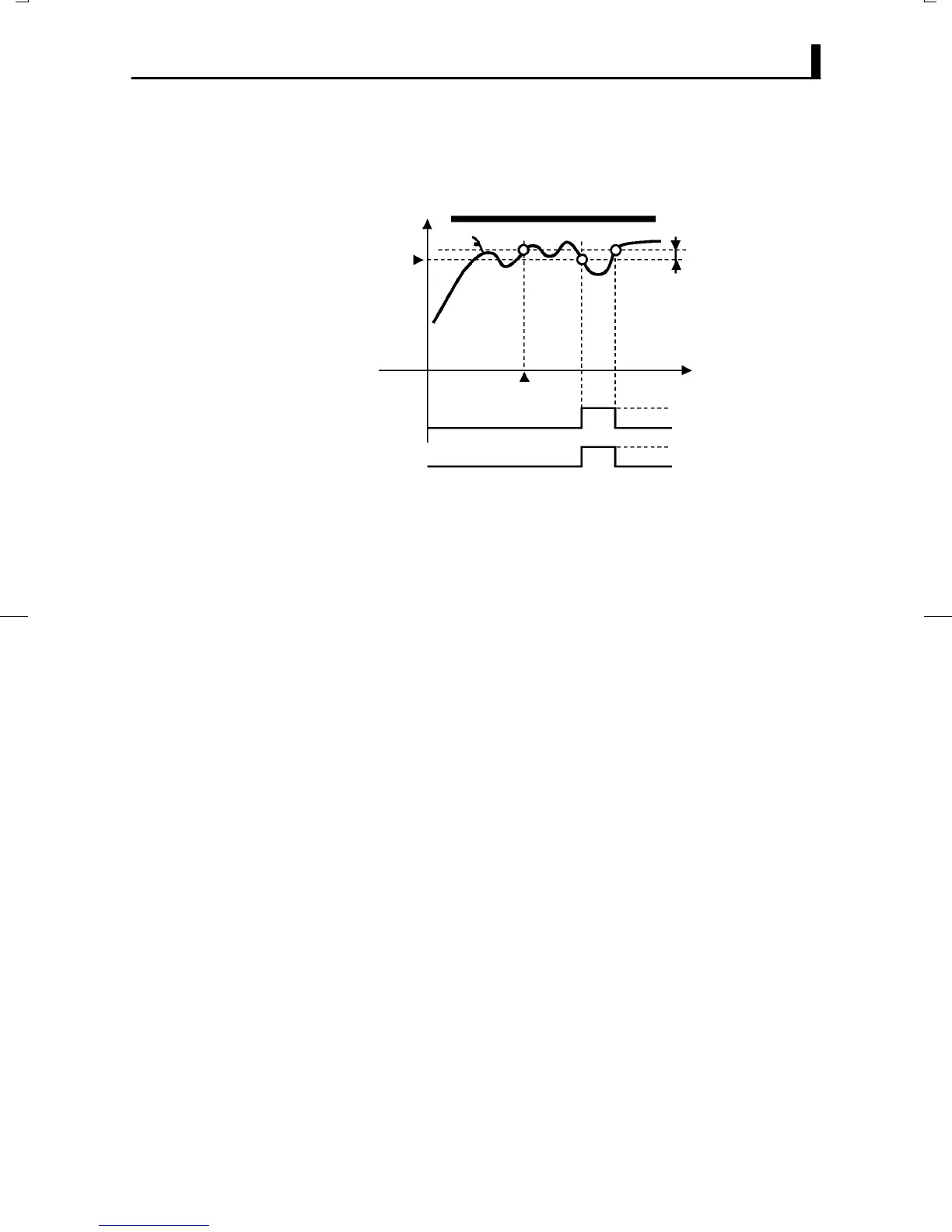

The figure below visually summarizes the above descriptions of alarm opĆ
erations (when alarm type is set to lowerĆlimit alarm with standby seĆ
quence"):
Alarm type: lower limit alarm with
standby sequence
Alarm value
Alarm
Standby sequence
canceled
PV
Alarm hysteresis
Time
ON
OFF (open)
output
ON (closed)
OFF
F Summary of
alarm operations
