4.3 Ramp Rise Rate Setup Program
E5CK
4–7
4.3 Ramp Rise Rate Setup Program
Chapter 3 described programs that used the time setup method." ProĆ
grams were executed using a combination of SPs and step time values. The
E5CKĆT also supports the ramp rise rate setup method." By this method,
programs are executed using three program elements: target SP", rate
of rise" and soak time."
To select a ramp rise rate program, set the Step time/rate of rise programĆ
ming" parameter (expansion mode) to
: rate of rise."

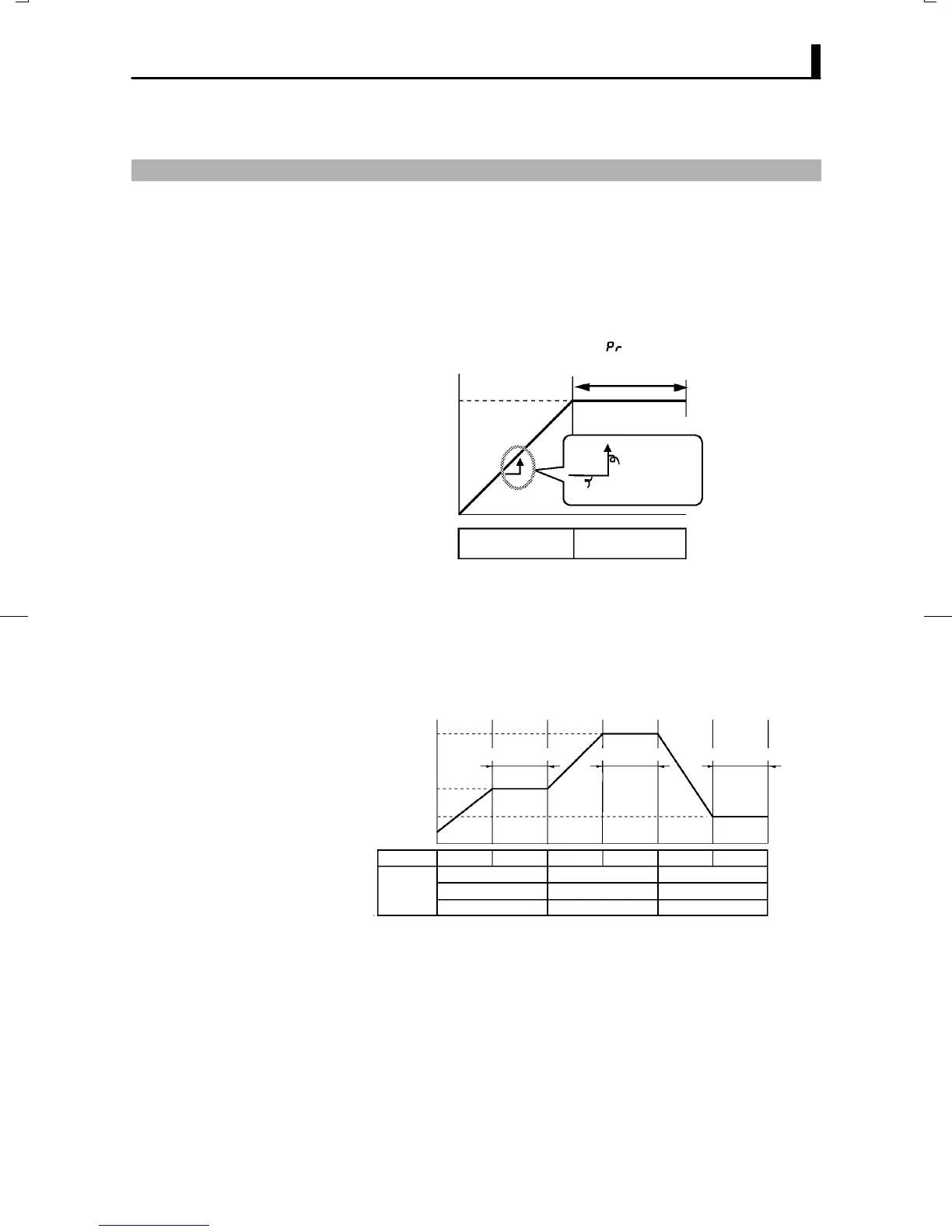

Target SP
Step
Ramp step Soak step
Rate of rise
Time unit of ramp rate
Soak time
N N+1
Set each of the above program elements in the target SP 0 to 7", rate of
rise 0 to 7" and soak time 0 to 7" parameters.
In a ramp rise rate program, parameters are set to two steps as shown in
the figure above. The following figure shows the relationship between the
program and parameters.
Target SP 2
Target SP 0
Target SP 1
Soak time 0 Soak time 1 Soak time 2
Step
Parameter
012345
Target SP 0 Target SP 1 Target SP 2
Rate of rise 0 Rate of rise 1 Rate of rise 2
Soak time 0 Soak time 1 Soak time 2
To Next Page
