When control characteristics are already known, the PID constants can be set
directly to adjust control.
PID parameters are set in the proportional band" (P), integrated time" (I) and
derivative time" (D) parameters in the adjustment level".
About PID parame-
ters
CHAPTER 3 BASIC OPERATION
E5GN
3–14

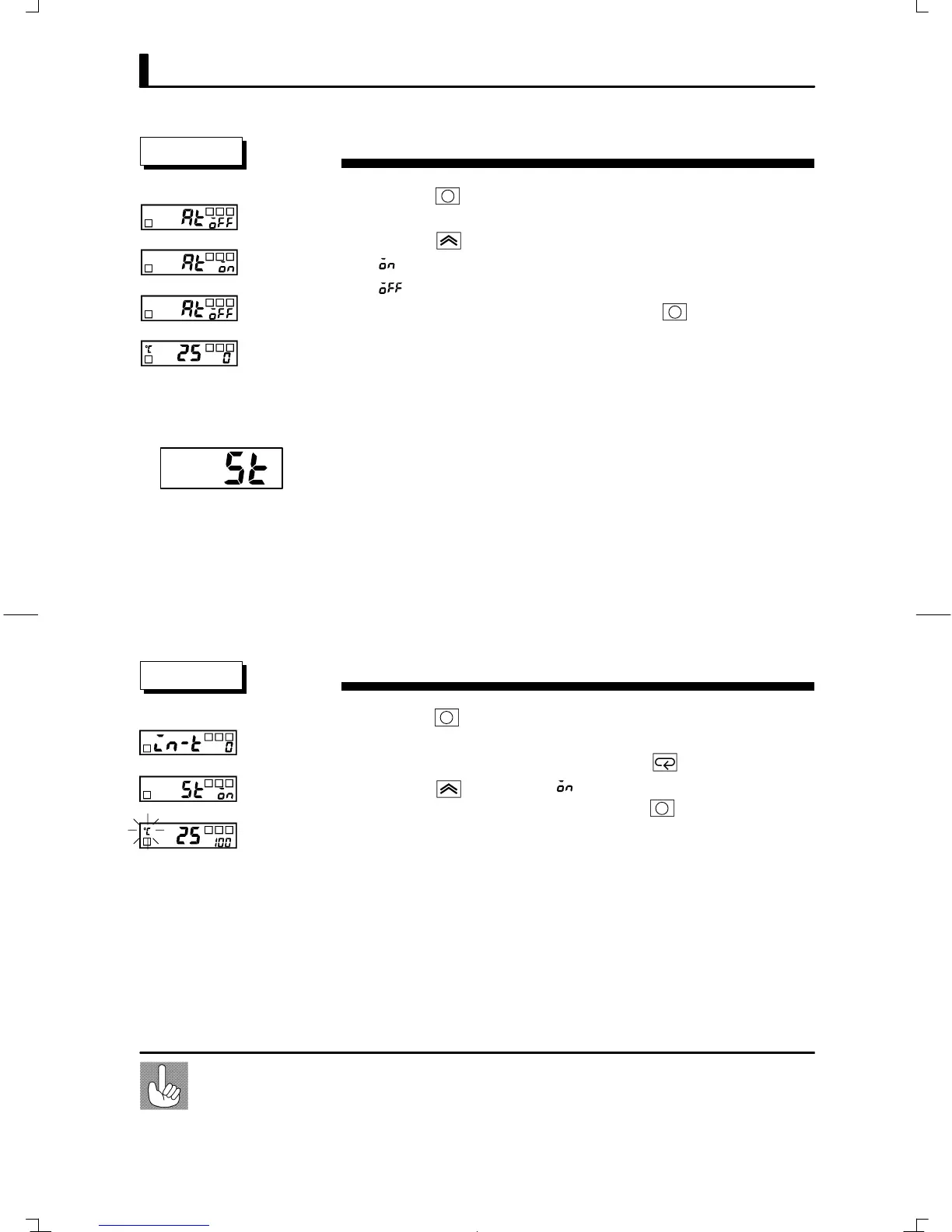

Execute autoĆtuning (AT).
(1) Press the key for less than one second to move from the operaĆ
tion level" to the adjustment level".
(2) Press the key to start execution of AT (autoĆtuning).
 " is displayed during AT execution.
(3)  " is displayed when AT ends.
(4) To return to the operation level," press the key.
The ST (selfĆtuning) function executes tuning from the start of program
execution to calculate the PID constants matched to the control target.
Once the PID constants have been calculated, ST is not executed when the
next control operation is started as long as the set point remains
unchanged.
ST (selfĆtuning) is executed when the ST" parameter is set to ON" in the
initial setting level".
When the ST function is in operation, be sure to turn the power supply of
the load connected to the control output ON simultaneously with or before
starting operation of the E5GN.
Execute selfĆtuning (ST).
(1) Press the key for at least three seconds to move from the operaĆ
tion level" to the initial setting level".
(2) Select the ST" parameter by pressing the
key.
(3) Press the
key to select  " (default).
(4) To return to the operation level," press the key. The temperature
display blinks during selfĆtuning (ST) execution.
Operation Procedure
AT execute/
cancel
Adjustment Level
PV
Operation level
JST (self-tuning)
Operation Procedure
Input type
Initial setting level
ST
