Omron E5GN - Initial Setting Level

E5GN
5–17

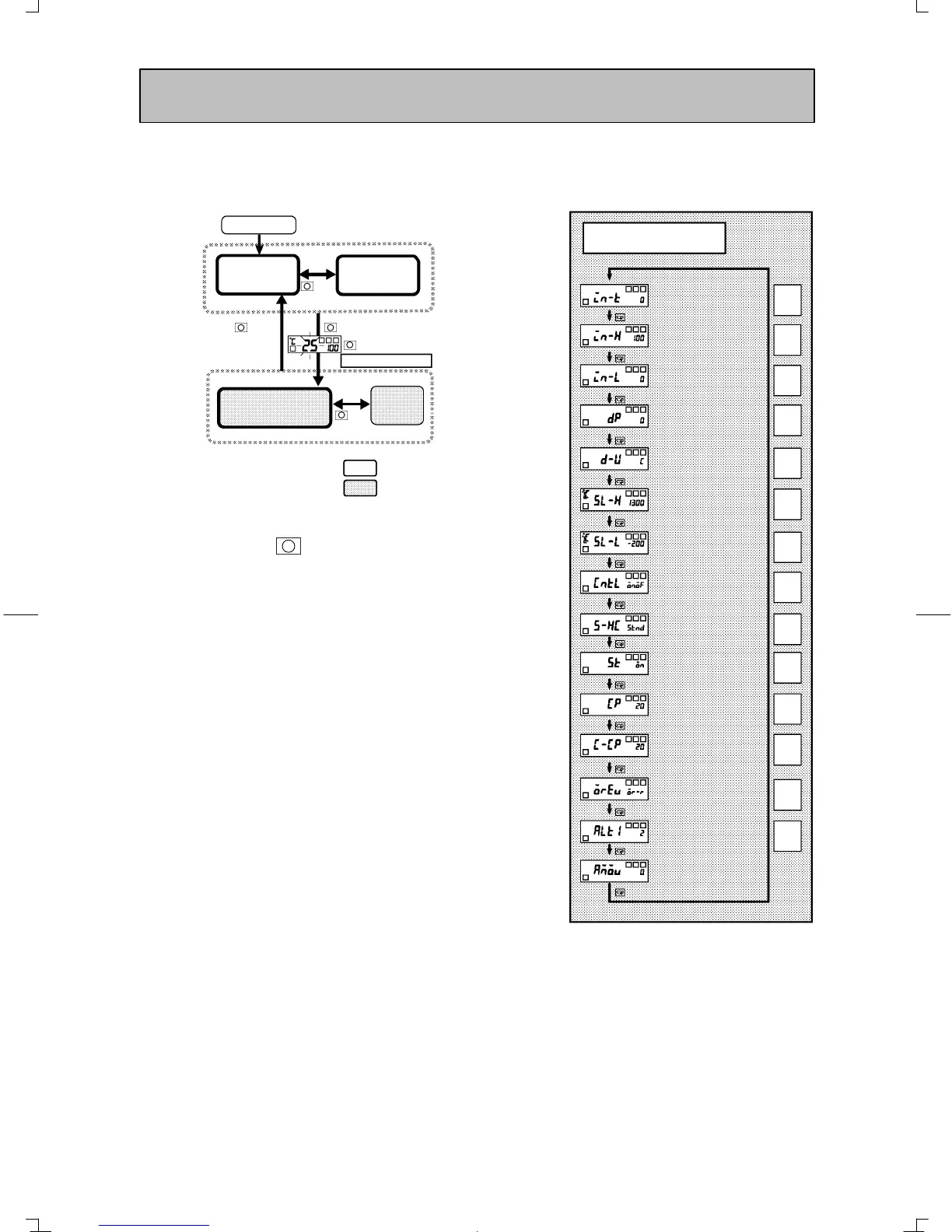

This level is for setting up the basic specifications of the E5GN. In this level, you can set the
input type" parameter for selecting the sensor input to be connected to the E5GN, limit the setĆ
ting range of set values or set the alarm mode.
Control in progress
Control stopped
Power ON
Operation
level
Adjustment
level
Initial setting level
Commu-
nications
setup level
1 second
min.
key
less than
1 sec.
key
less than
1 sec.
key
Control stops
3 seconds min.key
The PV display flashes after one second
key
To move from the operation level to the initial setting
level, press key for three seconds or more.
Ă• The initial setting level is not displayed when iniĆ
tial/communications protection" is set to 2". This
initial setting level can be used when initial setting/
communications protection" is set to 0" or 1".
Ă• The scaling upper limit", scaling lower limit" and
decimal point" parameters are displayed when
analog input is selected as the input type.
Initial Setting Level
Page
Initial setting level
Input type
Scaling upper limit
Scaling lower limit
Decimal point
_C/_F selection
Set point upper limit
Set point lower limit
PID / ON/OFF
Standard/heating and
cooling
Control period (OUT2)
Direct/reverse
operation
Alarm 1 type
Move to advanced
function setting level
5-18
5-19
5-19
5-19
5-20
5-20
5-20
5-21
5-21
5-22
5-23
5-23
ST
5-22
Control period (OUT1)
5-22
