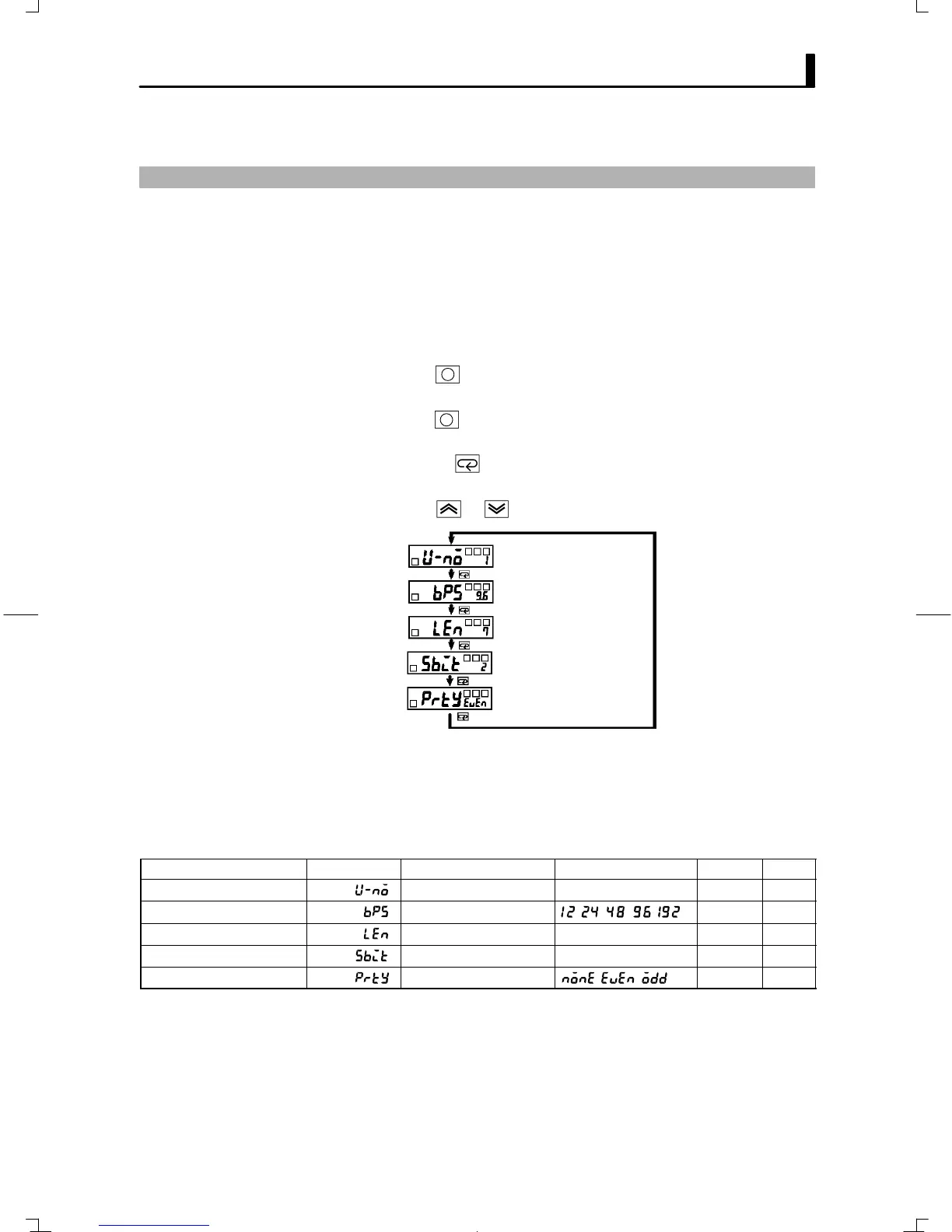

1.4 Communications Function
The E5GN can be provided with a communications function that allows
you to check and set controller parameters on a host computer. If the comĆ
munications function is required, use the model supporting the commuĆ
nications function E5GNĆj03j. For details on the communications funcĆ
tion, see the separate Communications Functions User's Manual."
Follow the procedure below to move to the communication setting level.
(1) Press the
key for at least three seconds in the operation level".
The level moves to the initial setting level".
(2) Press the
key for less than one second. The initial setting level"
moves to the communications setting level".
(3) Pressing the key advances the parameters as shown in the followĆ
ing figure.
(4) Press the or keys to change the parameter setups.
Communications unit No.
Baud rate
Data bit
Stop bit
Parity
Set the E5GN communications specifications so that they match the comĆ
munications setup of the host computer. In the case of a oneĆtoĆN connecĆ
tion, match the communications setup of all units.
Parameter Symbol Setting Set value Default Unit
Communications unit No. 0 to 99 1 None
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2
.... .,,,,
9.6 kbps
Data bit 7, 8 7 Bit
Stop bit 1, 2 2 Bit
Parity None, even, odd
,,
Even None
F Setting up
communications
data
