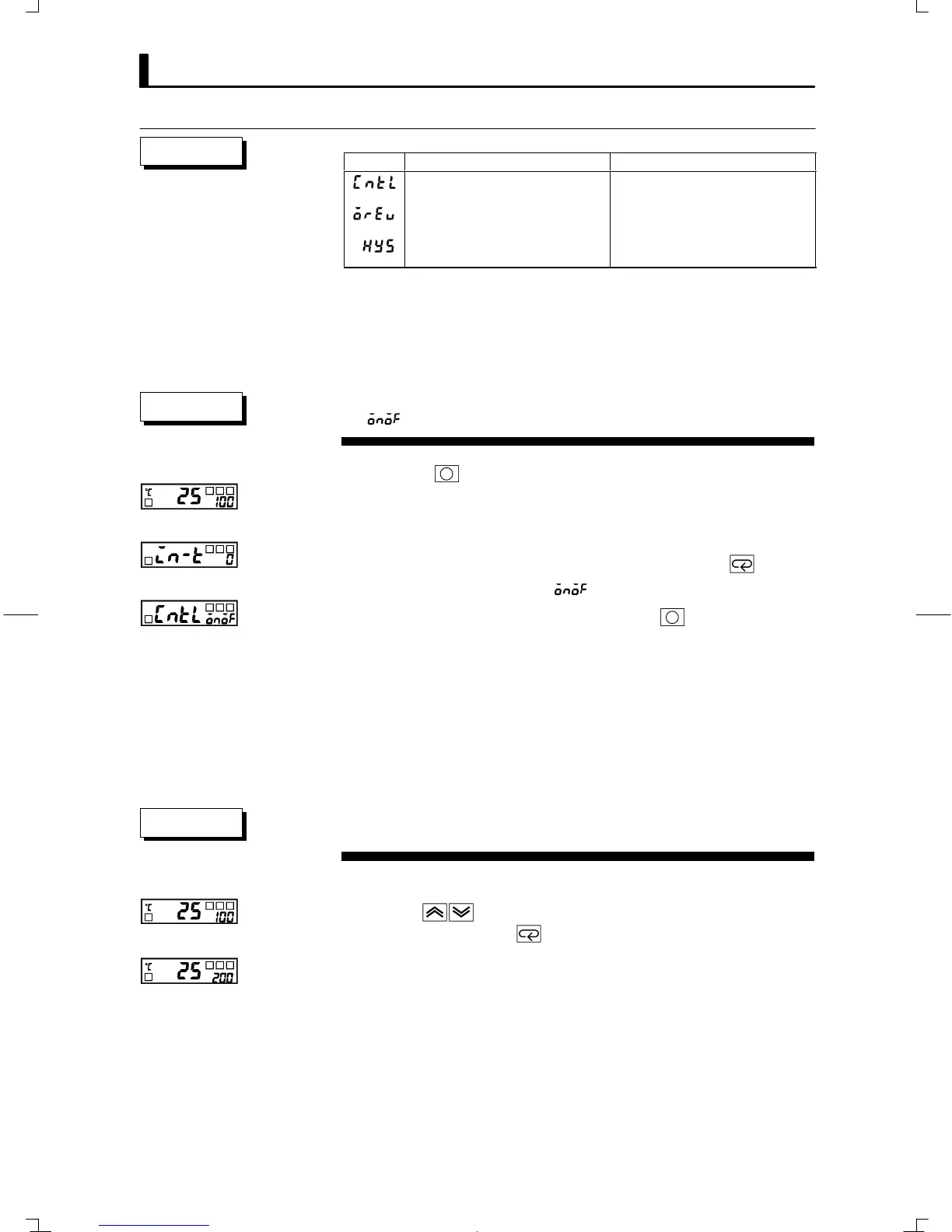

CHAPTER 3 BASIC OPERATION
E5GN
3–12
Symbol Parameter Name: Level Description
PID / ON/OFF:
Initial setting level
For specifying control method
Direct/reverse operation:
Initial setting level
For specifying control method
Hysteresis:
Adjustment
ON/OFF control
To execute ON/OFF control, set the set point," PID / ON/OFF" and
hysteresis" parameters.
• Setting the PID / ON/OFF parameter
In this example, let's first check that the PID / ON/OFF" parameter is set
to  " in the initial setting level".
(1) Press the key for at least three seconds to move from the operaĆ
tion level" to the initial setting level".
(2) The input type" is the first parameter displayed when you have
moved to the initial setting level.
(3) Select the PID / ON/OFF" parameter by pressing the key.
(4) Check that the set value is  " (default).
(5) To return to the operation level" press the
key for at least one
second.
Next, set the set point value.
• Setting the SP
In this example, set the set point value (200). The lower display (No.2 disĆ
play) shows the set value (SP value).
(1) Select PV/SP" at the operation level.
(2) Use the keys to set the SP value. (For example, 200) To set the
value either press the key or wait more than two seconds.
Parameters
JSetup
Operation Procedure
PV
Operation level
Input type
PID / ON/OFF
Initial setting level
Operation Procedure
PV/SP
Operation level
