4.5 Setting Multi-SP
You can select set points 0 to 3 by changing the set value of the multiĆSP"
parameter. The multiĆSP" display conditions are as follows:
The following table shows the relationship between the multiĆSP"
parameter set value and the selected set point.
Multi-SP Selected Set Point
0 Set point 0
1 Set point 1
2 Set point 2
3 Set point 3
Before you set the MultiĆSP", cancel protection and move to the
advanced function setting level".
Set MultiĆSP uses" to ON in the advanced function setting level.
In the following example, let's set the set point to 2".
(1) Press the key and key simultaneously for at least three
seconds to move from the operation level" to the protect level".
(2) Select initial setting/communecations protection" by pressing the
key.
(3) Set the parameter to 0" (move to advanced function setting level
enabled).
(4) Press the
key and key simultaneously for at least one second
to move from the protect level" to the operation level".
(5) Press the
key for at least three seconds to move to the initial setĆ
ting level".
(6) Select move to advanced function setting level" by pressing the
key.
(7) Press the key to enter the Ć169" (password).
(8) Select MultiĆSP uses" by pressing the key.
Set the parameter to ON.
(9) Press the key for at least one second to move to the initial setting
level".
(10) Press the key for at least one second to move to the operation
level".

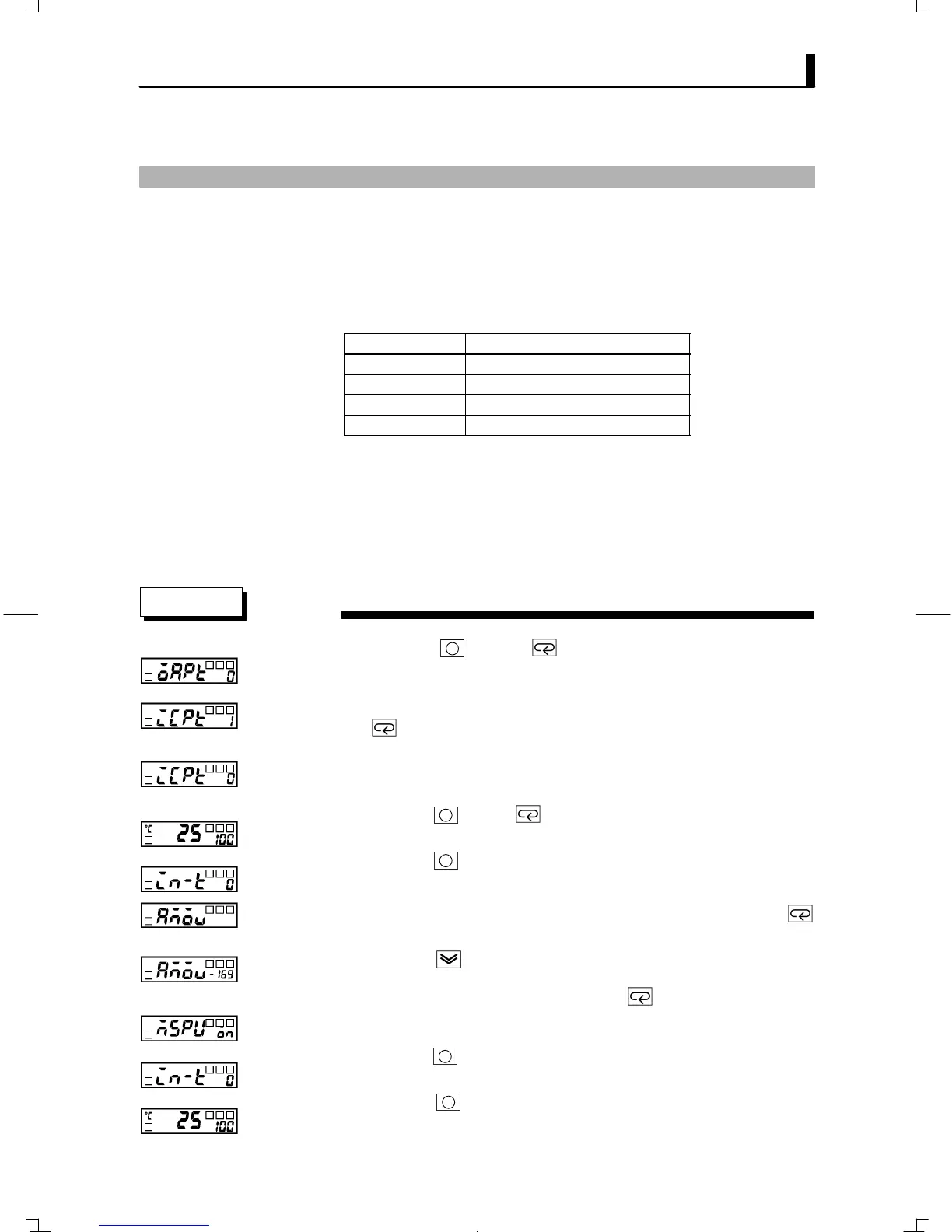

JSetting the SP by
key operation
JSetup
Operation Procedure
Operation
/adjustment
protection
protect level
Initial setting/
communica-
tions protec-
tion
Initial setup/
communica-
tions protec-
tion
PV/SP
Operation level
Initial setting level
Advanced function
setting level
Initial setting level
Operation level
