CHAPTER 1 INTRODUCTION
E5GN
1–6
1.3 How Setup Levels Are Configured and Operating
the Keys on the Front Panel

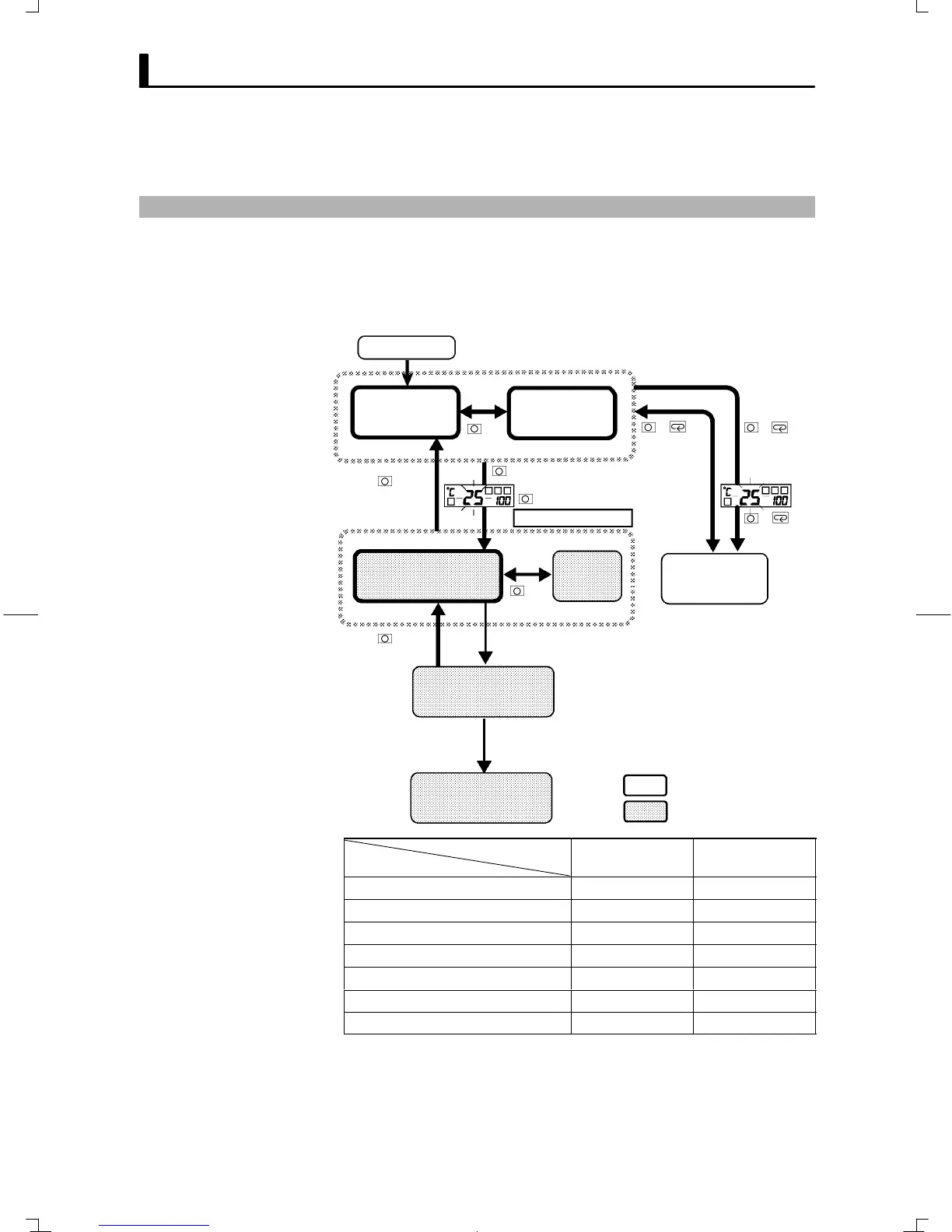

Parameters are divided into groups, each called a level". Each of the set
values (setup items) in these levels is called a parameter." The parameĆ
ters on the E5GN are divided into the following seven levels:
When the E5GN is turned ON, all items in the display light for about one
second.
Password input
set value “1201”
Advanced
function setting level
Calibration level
Password input
set value “-169”
Control stops.
Initial setting level
Less than
1 second
key
key
Commu-
nications
setting level
The PV flashes after one second.
Power ON
Operation level
1 second min.
+ key
Protect level
Control in progress
Control stopped
Adjustment level
key 3 seconds min.
Less than
1 second
key
1 second min.
key
1 second min.
key
Note :
Communications setting level is displayed
only when E5GN-V03V with communica-
tions function is used.
3 seconds min.
+ key
The PV display
flashes .
+ key
Control in
Progress
Control Stopped
Protect level f -
Operation level f -
Adjustment level f -
Initial setting level - f
Advanced function setting level - f
Calibration level - f
Communications setting level - f
f : Indicates items that can be set.
Of these levels, the initial setting level, communications setting level,
advanced function setting level and calibration level can be used only
when control has stopped. Note that the controller outputs are stopped
when these four levels are selected.
