APPENDIX
E5GN
A10

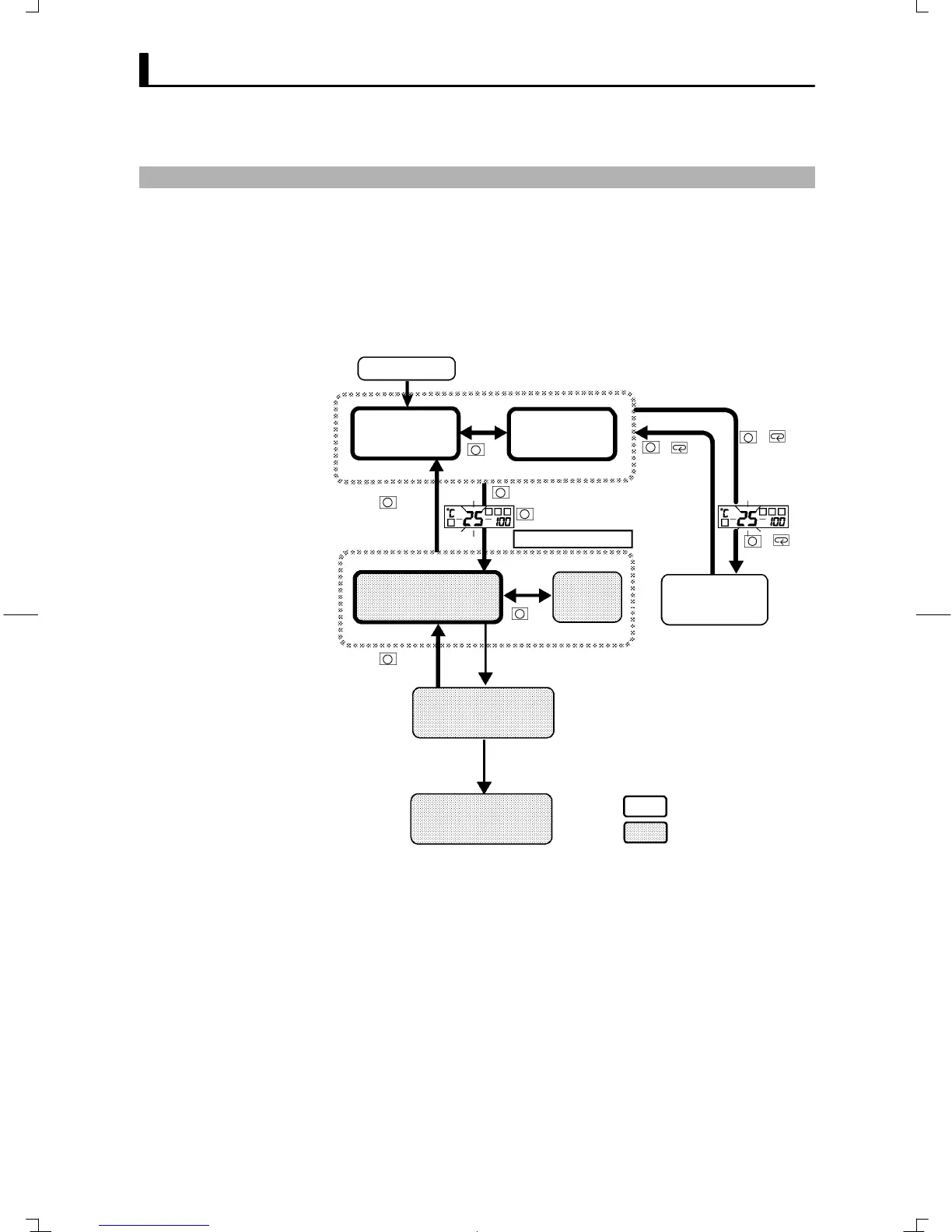

SETUP LEVELS DIAGRAM
The following diagram shows an overview of the setup levels on the E5GN.
To move to the advanced function setting level and calibration level, you
must enter passwords. Some parameters are not displayed depending on
the protect level setting and the conditions of use.
Control stops when you move from the operation level to the initial setting
level.
Password input
set value 1201
Advanced
function setting level
Calibration level
Password input
set value -169
Control stops.
Initial setting level
Less than
1 second
key
key
Commu-
nications
setting level
The PV display flashes
after one second.
Power ON
Operation level
1 second min.
+ key
Protect level
Control in progress
Control stopped
Adjustment level
key 3 seconds min.
Less than
1 second
key
1 second min.
key
1 second min.
key
3 seconds min.
+ key
+ key
The PV display
flashes.
