Omron E5GN User Manual

APPENDIX
E5GN
A–6

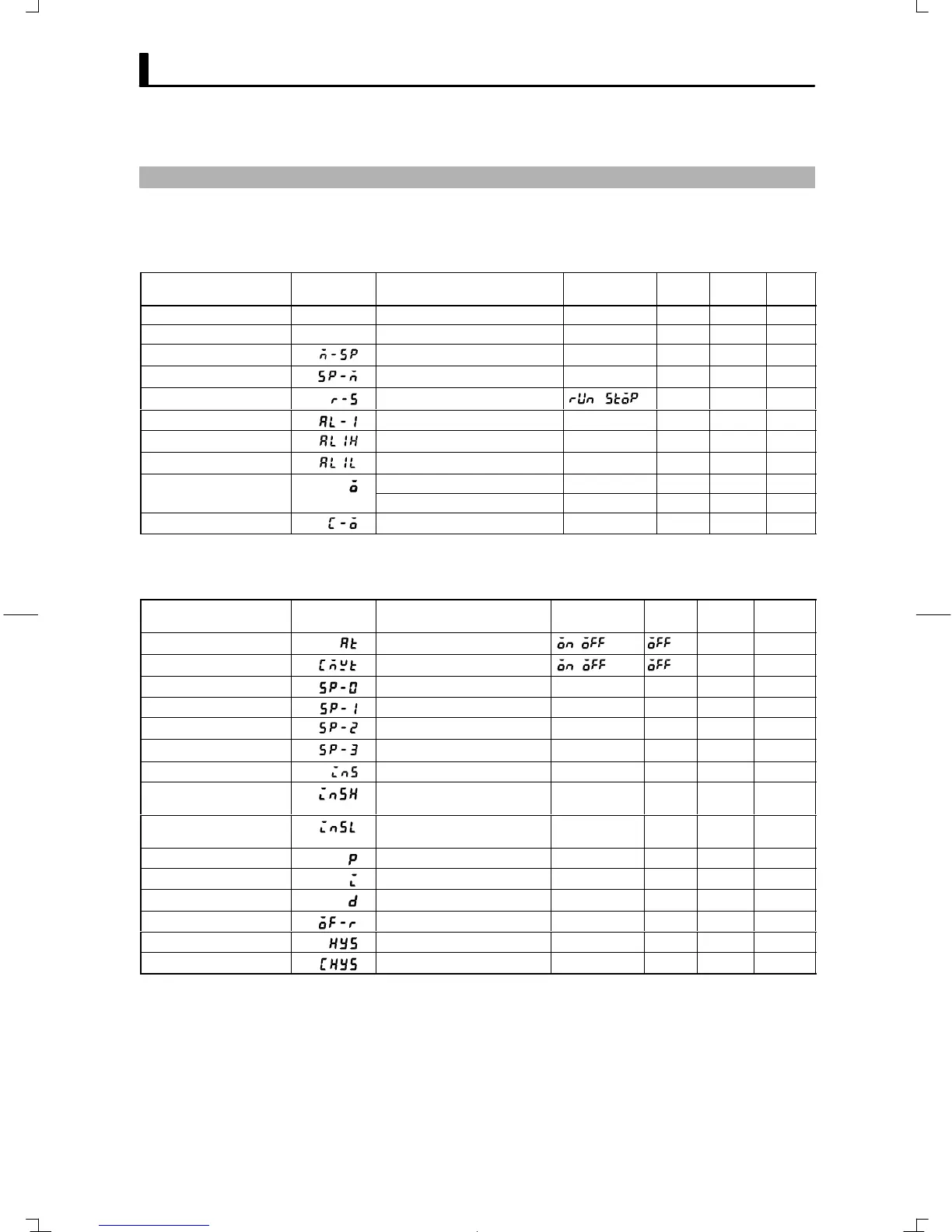

PARAMETER OPERATIONS LIST
Operation level
Parameter Name Symbol Setting (monitor) Value Display Default Unit
Set
Value
PV Sensor input indication range EU
PV/SP SP lower limit to SP upper limit 0 EU
Multi-SP 0 to 3 0 None
Set point during SP ramp SP lower limit to SP upper limit EU
Run/stop Run/stop
,
Run None
Alarm value 1 -1999 to 9999 0 EU
Upper-limit alarm value 1 -1999 to 9999 0 EU
Lower-limit alarm value 1 -1999 to 9999 0 EU
MV monitor (OUT1) -5.0 to 105.0 (standard) %
0.0 to 105.0 (heating and cooling) %
MV monitor (OUT2) 0.0 to 105.0 %
Adjustment level
Parameter Name Symbol Setting (monitor) Value Display Default Unit
Setting
Value
AT execute/cancel ON, OFF
,
None
Communications writing ON, OFF , None
Set point 0 SP lower limit to upper limit 0 EU
Set point 1 SP lower limit to upper limit 0 EU
Set point 2 SP lower limit to upper limit 0 EU
Set point 3 SP lower limit to upper limit 0 EU
Temperature input shift -199.9 to 999.9 0.0 _C or _F
Upper-limit temperature
input shift value
-199.9 to 999.9 0.0 _C or _F
Lower-limit temperature
input shift value
-199.9 to 999.9 0.0 _C or _F
Proportional band 0.1 to 999.9 8.0 EU
Integral time 0 to 3999 233 Second
Derivative time 0 to 3999 40 Second
Manual reset value 0.0 to 100.0 50.0 %
Hysteresis (OUT1) 0.1 to 999.9 1.0 EU
Hysteresis (OUT2) 0.1 to 999.9 1.0 EU
