CHAPTER 5 PARAMETERS
E5GN
5–10
This level is for executing AT (autoĆtuning) or setting up the control.
This level provides you with basic controller setup parameters for PID (proportional band, inteĆ
gral time, derivative time).
Control in progress
Power ON
Operation
level
Adjustment
level
less than
1 sec.
key
To move to the adjustment level from the operation
level, press the key for less than one second.
Ă• The set points 0 to 3 in the adjustment level are set
values for switching the set point during multiĆSP
input.
Ă• You can change adjustment level parameters by setĆ
ting operation/adjustment protection to 0". If the
protect level is set 1" to 3", adjustment level
parameters cannot be displayed and the adjustment
level cannot be moved to.

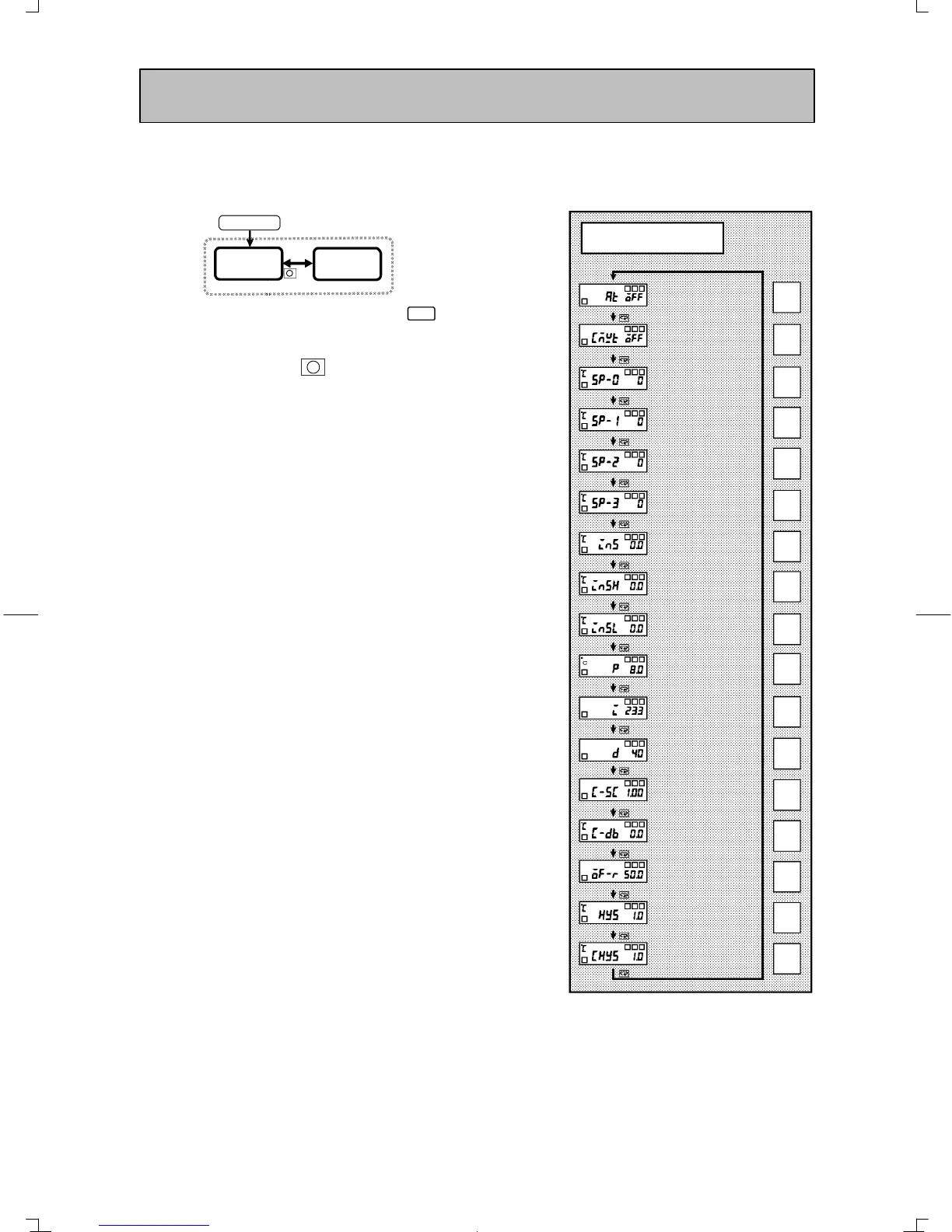

Adjustment Level
Page
Adjustment level
AT execute/cancel
Communications
writing
Set point 0
Set point 1
Set point 2
Set point 3
Temperature input
shift value
UpperĆlimit temperaĆ
ture input shift value
LowerĆlimit temperaĆ
ture input shift value
Proportional band
Integral time
Derivative time
Cooling coefficient
Dead band
5-11
5-11
5-12
5-12
5-12
5-12
5-13
5-13
5-13
5-14
5-14
5-14
5-15
5-15
Manual reset value
Hysteresis (OUT1)
5-16
5-16
Hysteresis (OUT2)
5-16
