When PID constants I (integral time) and D (derivative time) are set to 0", control
is executed according to proportional operation. The default set point becomes the
center value of the proportional band.
Related parameter
manual reset value" (adjustment level)
Proportional
Operation
CHAPTER 3 BASIC OPERATION
E5GN
316

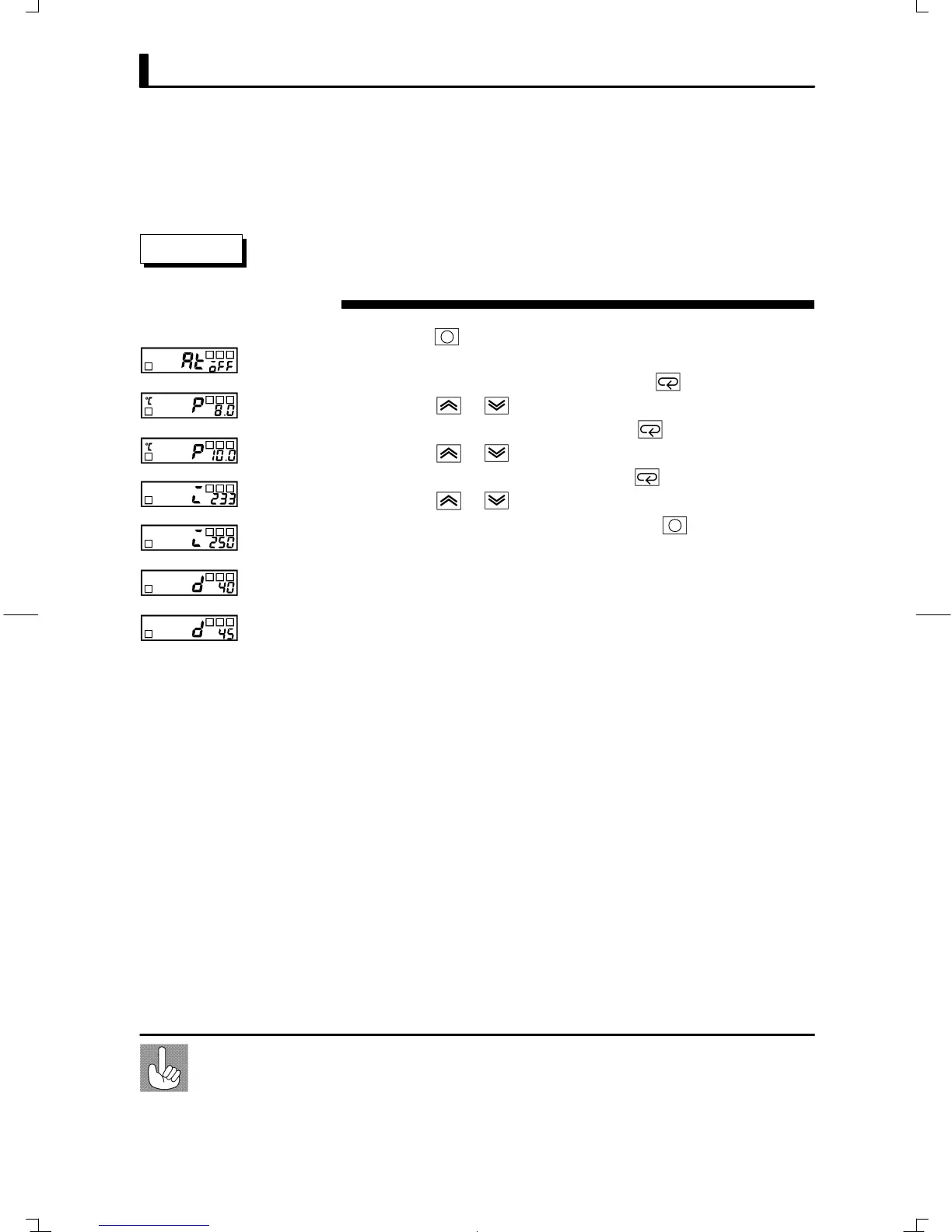

The individual PID constants can be manually set in the Proportional
band", Integral time" and Derivative time" parameters in the adjustĆ
ment level".
In this example, let's set the proportional band" parameter to 10.0", the
integrated time" parameter to 250" and the derivative time" parameĆ
ter to 45".
(1) Press the key to move from the operation level" to the adjustĆ
ment level".
(2) Select proportional band" by pressing the
key.
(3) Press the
or key to set the parameter to 10.0".
(4) Select integrated time" by pressing the key.
(5) Press the or key to set the parameter to 250".
(6) Select derivative time" by pressing the key.
(7) Press the or key to set the parameter to 45".
(8) To return to the operation level," press the key.
JManual setup
Operation Procedure
AT execute/
cancel
Adjustment level
Proportional
band
Integrated
time
Derivative
time
