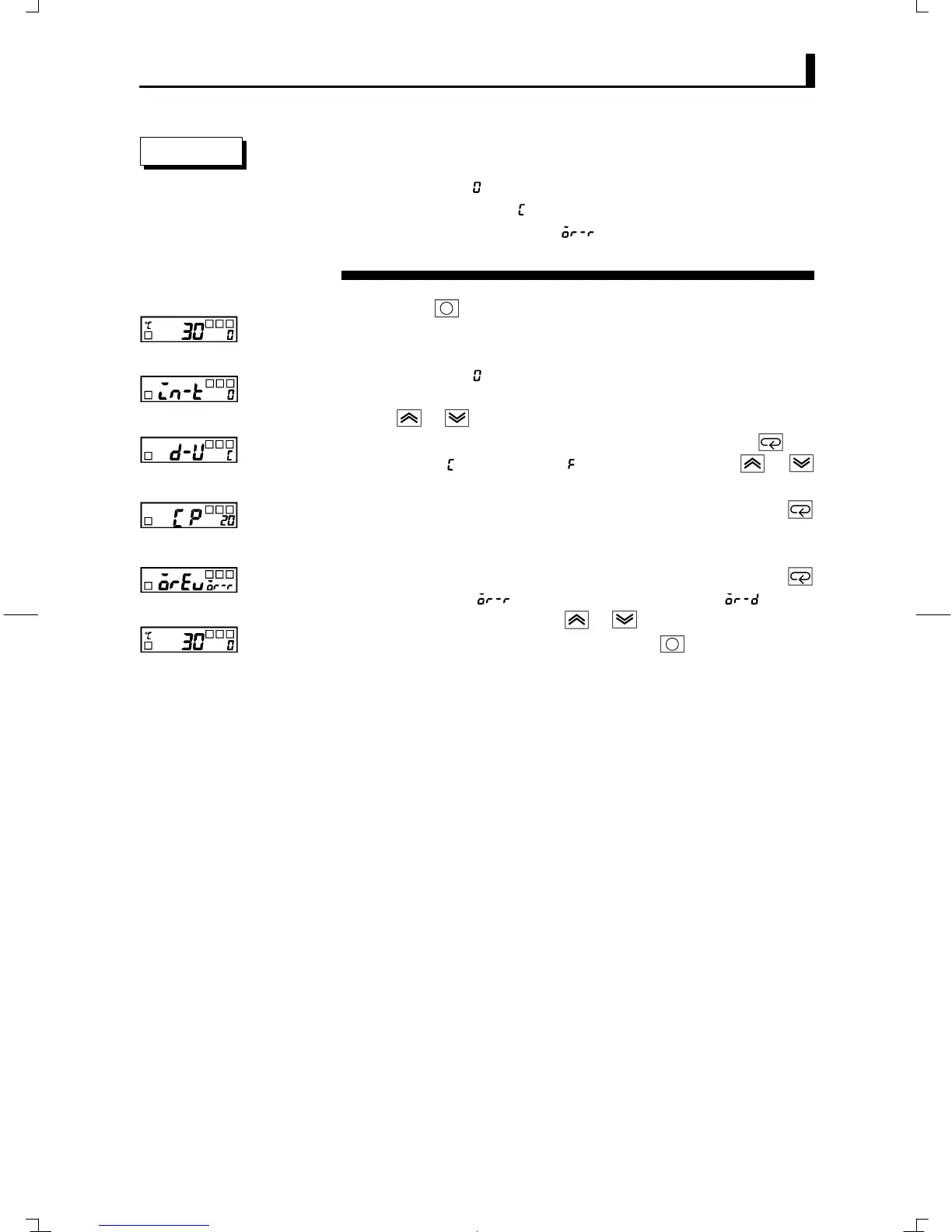

3.5Setting Output Specifications
E5GN
39
In this example, let's monitor the input type", temperature unit",
direct/reverse operation" and control period (heat)" parameters.
input type" =  ": K thermocouple
temperature unit" =  ": _C
direct/reverse operation" = ": reverse operation
control period (OUT1)" = 20 (secs)"
(1) Press the key for at least three seconds to move from the operaĆ
tion level" to the initial setting level".
(2) The input type is displayed. When you are setting the input type for
the first time,  ": K thermocouple is set. (0" is set in the case of a
platinum resistance thermometer.) To select a different sensor, press
the or keys.
(3) Select the temperature unit" parameter by pressing the key.
Default is ": _C. To select ": _F, press either of the or
keys.
(4) Select the control period (OUT1)" parameter by pressing the
key.
Default is 20".
(5) Select the direct/reverse operation" parameter by pressing the
key. Default is ": reverse operation. To select ": direct
operation, press either of the or keys.
(6) To return to the operation level" press the key for at least one
second.
Operation Procedure
Operation level
Input type
Temperature unit
Direct/reverse
operation
PV/SP
PV/SP
Initial setting level
Operation level
Control period
(OUT1)
