Scene maintenance area

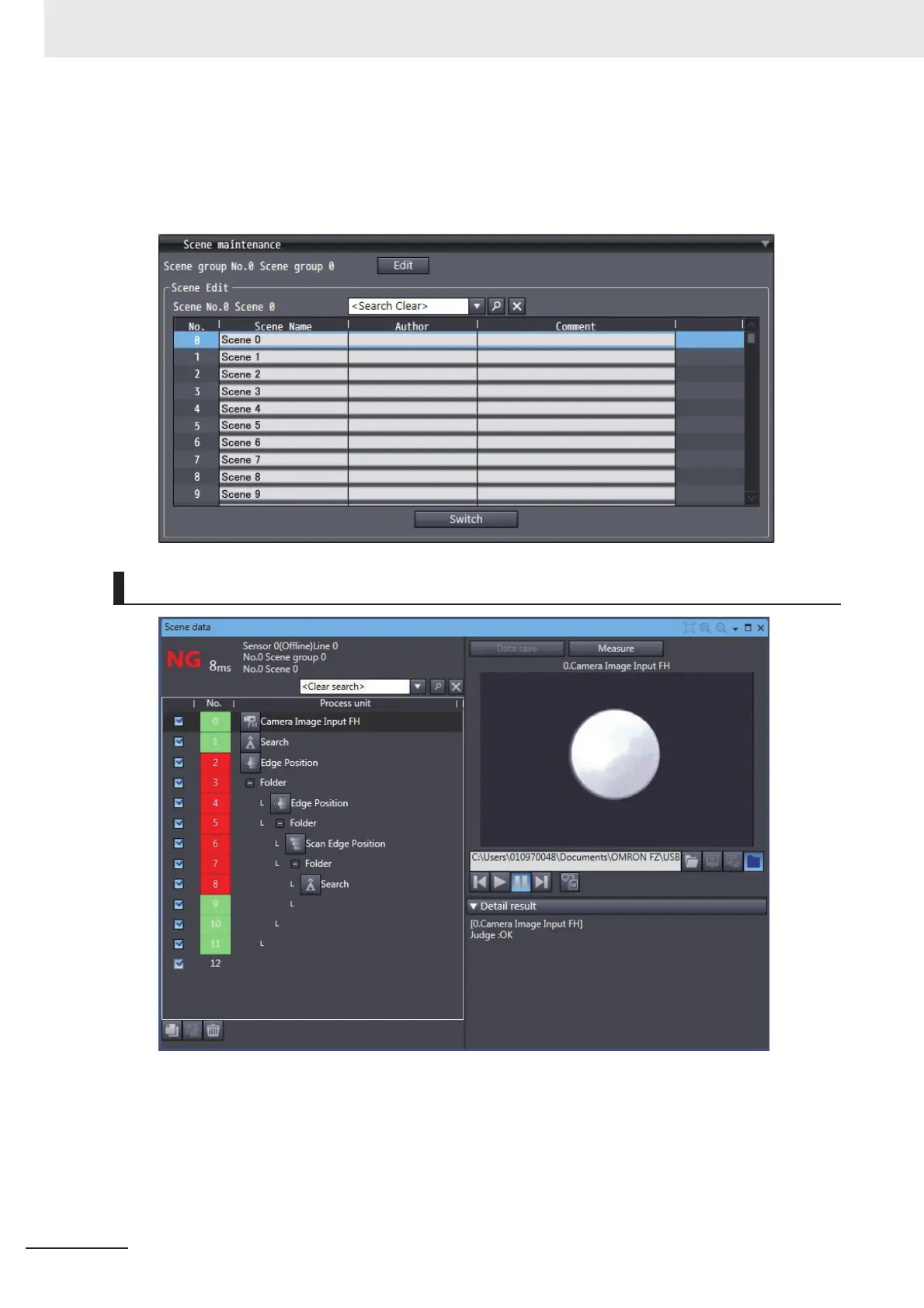

Clicking the scene maintenance item bar opens the scene maintenance window.
This screen allows you to manage and switch the scene group data and scene data.
For details on the specifications, refer to 2-5 Basic Operations of Scene Data on page 2-25.
This editing screen allows you to build the processing unit flow.
A new processing unit can be added to the flow by dragging and dropping any processing unit in the
Toolbox on to the list.
It is also possible to check the image that is the measurement target, and the measurement results
for each processing unit.
Scene data editing screen
