2 - 19
2 Basic Operations
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
2-4 Description of Screen Components
2
2-4-5 Edit Pane
z
Image control section
z
Image size control section
This is the same as in the monitor window. Refer to Image size control section on page 2-15.
z
Data save
This saves the settings data to non-volatile memory of the FH sensor.
z
Measure
Performs a single measurement.
The measurement process is performed for the image that is currently displayed.
z
Test measurement settings
z
Flow
This is the same as in the monitor window. Refer to Flow on page 2-16.
z
Detail result
This is the same as in the monitor window. Refer to Detail result on page 2-17.
z
Image display settings
This is the same as in the monitor window. Refer to Image display settings on page 2-17.

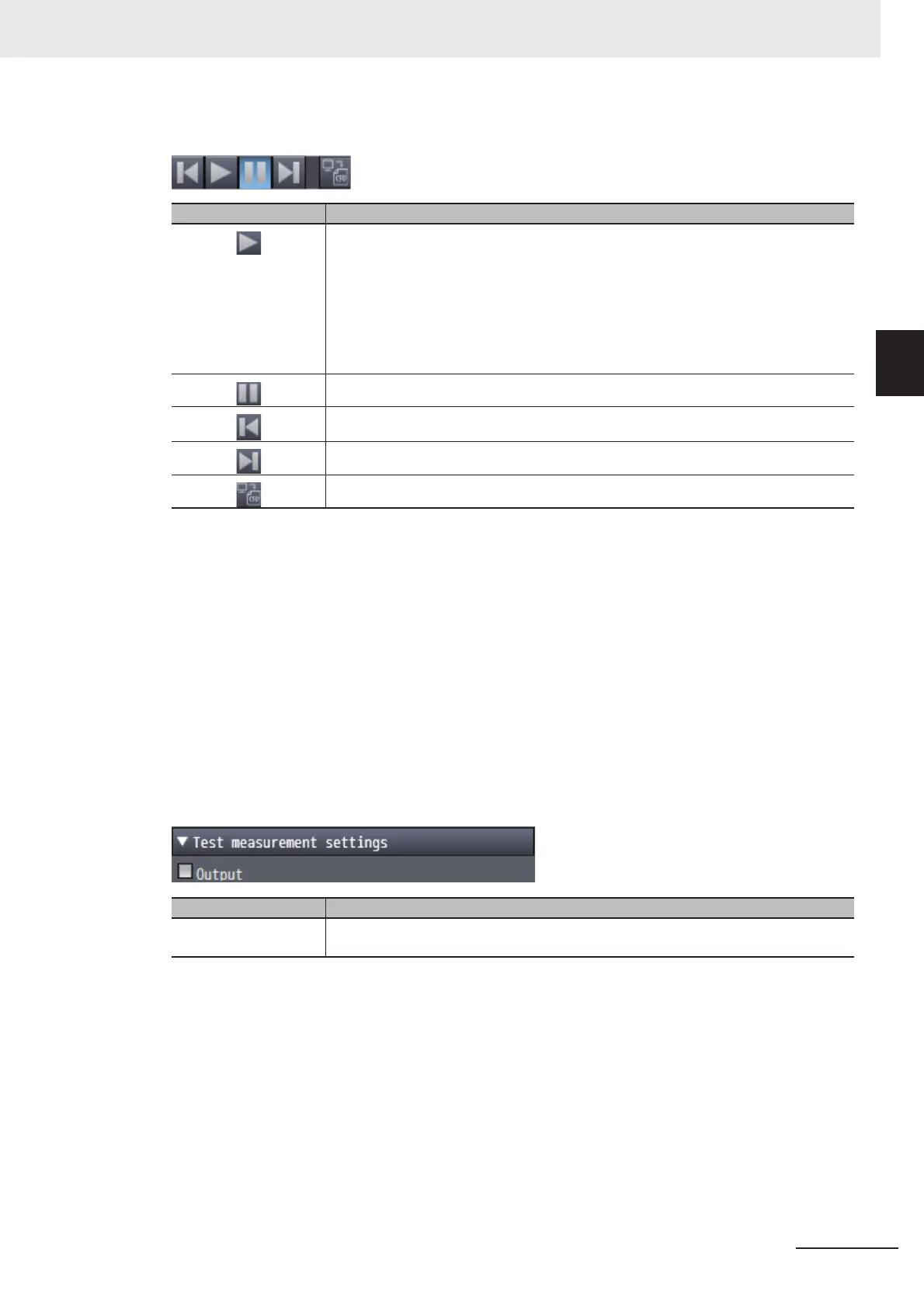

Button Description
Performs continuous measurement of images.
In the case of camera images, continuously measures and displays camera images.
In the case of logging images, continuously measures and displays images in the
logging folder.
In the case of file images, continuously measures and displays images in the folder.
When logging images and file images are selected, continuous measurement is
stopped after all images are measured.
Stops continuous measurement.
Measures and displays the previous image.
Measures and displays the next image.
Saves the latest image in a file.
Item Description
Output
Outputs the measurement results to an external device when test measurement is
performed.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
