2 - 21
2 Basic Operations
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
2-4 Description of Screen Components
2
2-4-5 Edit Pane

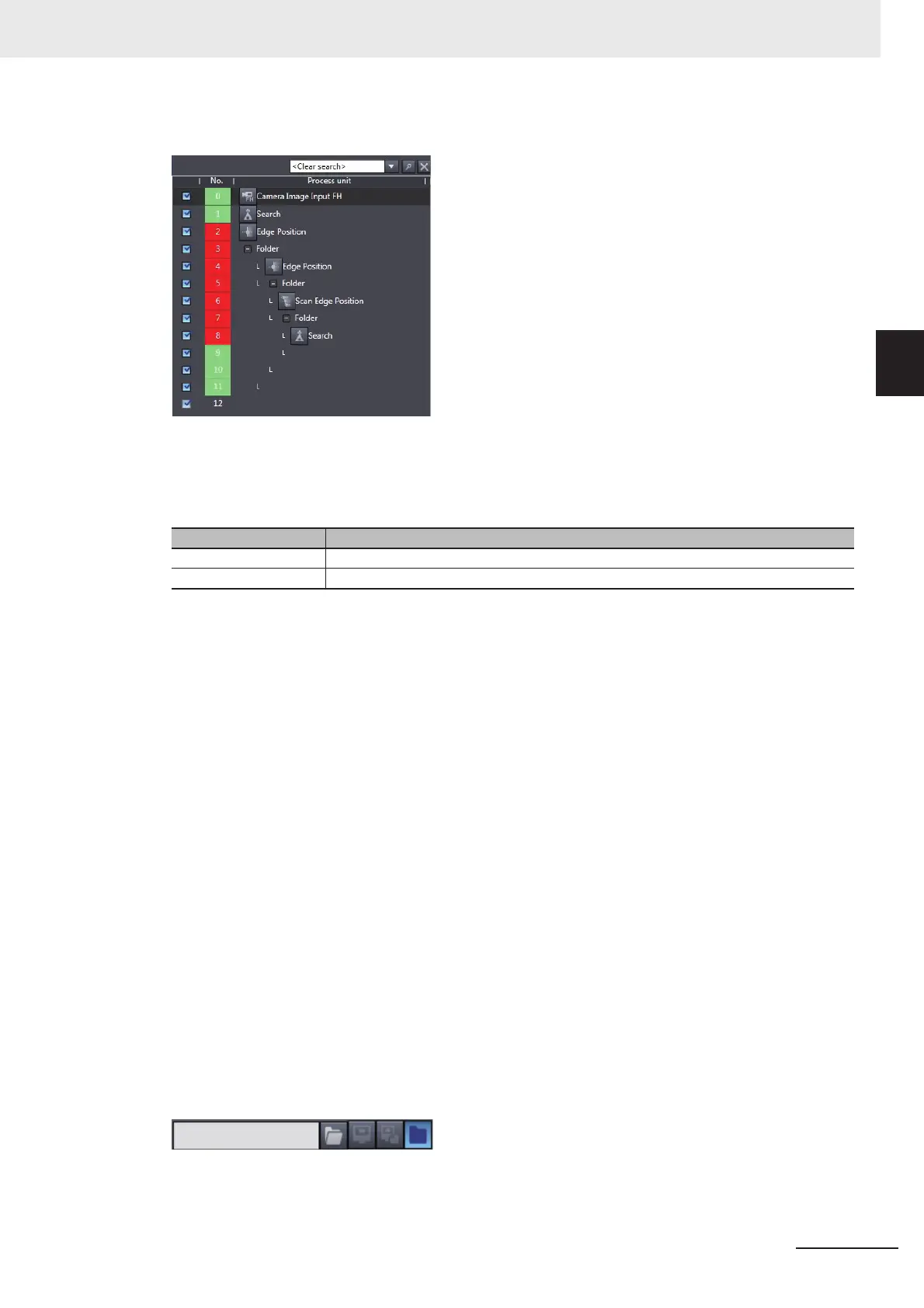

Flow display
This displays the processing flow for the relevant line or current scene.
Each editing process (adding, copying, deleting, etc.) of the processing units in the flow can be per-
formed.
The registered processing units are displayed in the flow list.
With this tool, it is possible to select a processing unit to be used for measurement.
The measurements whose processing units with the checkmark removed will not be performed.
Data save
This is the same as in the Scene maintenance screen. Refer to Data save on page 2-19.
Transfer data
This transfers the settings for line 0 to line 1.
The button is displayed only when the operation mode is in Non-stop Adjustment Mode.
Non-stop data transfer
This transfers the settings for line 1 to line 0.
The button is displayed only when the operation mode is in Non-stop Adjustment Mode.
For details on “Transfer data” and “Non-stop data transfer”, refer to Setting the Operation Mode -
Non-stop Adjustment Mode in Vision System FH/FZ5 Series User's Manual (Cat. No. Z365).
Measure
This is the same as in the Scene maintenance screen. Refer to Measure on page 2-19.
File selection section
This is the same as in the Scene maintenance screen. Refer to File selection section on page 2-18.
Item Description
Search Searches for the specified processing unit from within the processing flow.
Flow list Displays the processing flow for the relevant line or current scene.
To Next Page
