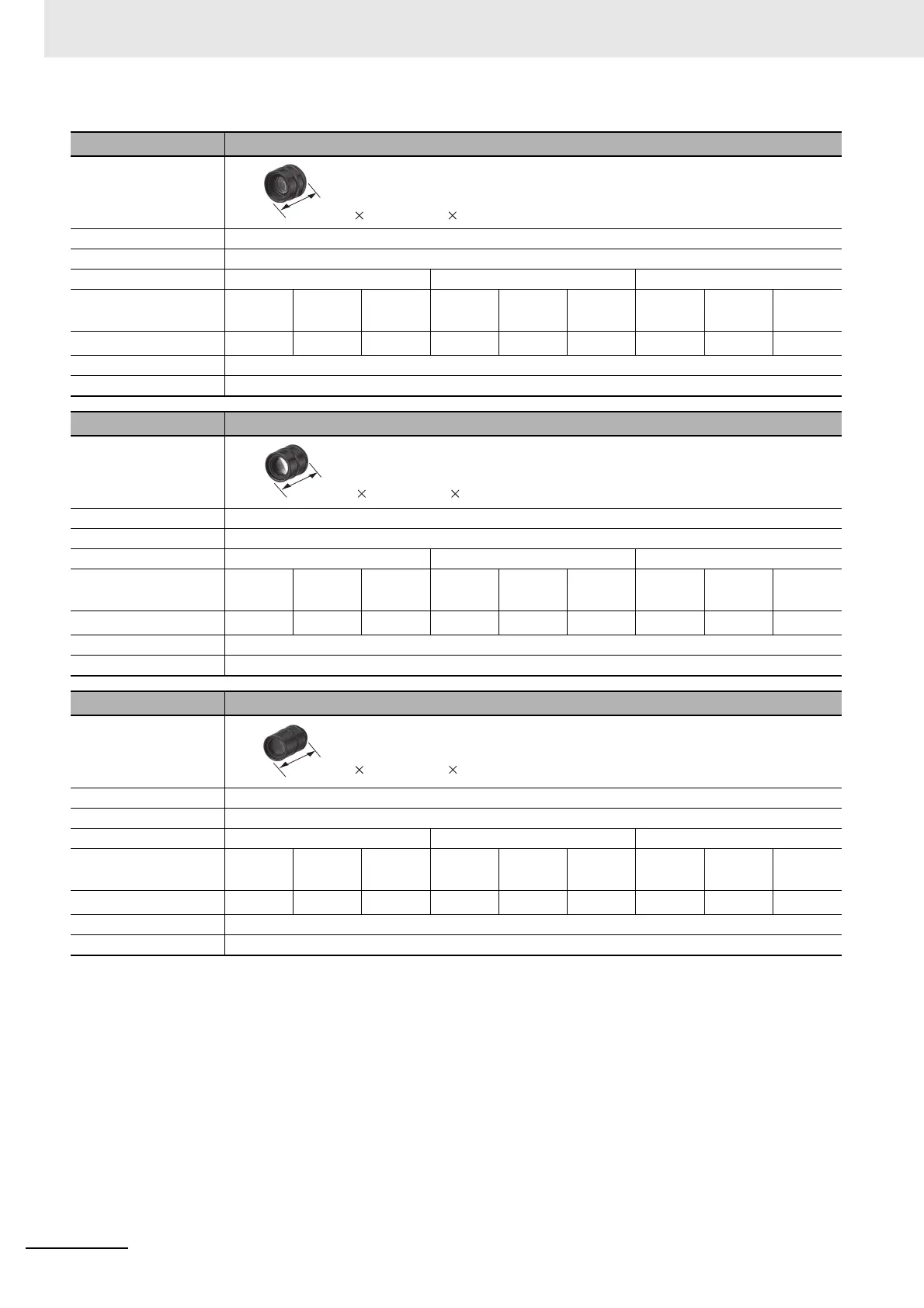

Model
3Z4S-LE VS-MC30-
*1
Appearance/Dimen-
sions (mm)
Focal length 30 mm
Filter size M27.0 P0.5
Optical magnification 0.06 × 0.15 × 0.45 ×
Aperture (fixed F
No
.)
*2
2 5.6 8 2 5.6 8 2 5.6 8
Depth of field (mm)
*3
47.1 131.9 188.4 8.2 22.9 32.7 1.1 3.2 4.6
Maximum sensor size 2/3 inch
Mount C Mount
Model
3Z4S-LE VS-MC35-
*1
Appearance/Dimen-
sions (mm)
Focal length 35 mm
Filter size M27.0 P0.5
Optical magnification 0.26 × 0.3 × 0.65 ×
Aperture (fixed F
No
.)
*2
1.9 5.6 8 1.9 5.6 8 1.9 5.6 8
Depth of field (mm)
*3
2.8 8.4 11.9 2.2 6.5 9.2 0.6 1.7 2.5
Maximum sensor size 2/3 inch
Mount C Mount
Model
3Z4S-LE VS-MC50-
*1
Appearance/Dimen-
sions (mm)
Focal length 50 mm
Filter size M27.0 P0.5
Optical magnification 0.08 × 0.2 × 0.48 ×
Aperture (fixed F
No
.)
*2
2 5.6 8 2 5.6 8 2 5.6 8
Depth of field (mm)
*3
33.8 75.6 108.0 6.0 13.4 19.2 1.3 2.9 4.1
Maximum sensor size 2/3 inch
Mount C Mount
31 dia.
24.0[0.06 ] to 35.7[0.45 ]
31 dia.
32.0[0.26 ] to 45.7[0.65 ]
31 dia.
44.5[0.08 ] to 63.9[0.48 ]
