5 Setup and Wiring
5 - 38
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
• Panels have been reduced in size due to space-saving and miniaturization in devices and systems,
and the temperature inside the panel may be at least 10 to 15°C higher than outside the panel. Imple
-
ment the following measures against o
verheating at the installation site and in the panel, and allow a
sufficient margin for the temperature.
• The Controller may not start normally if the temperature is below 0°C when the power is turned ON.
M
aintain an air temperature of at least approximately 5°C inside the panel, by implementing mea-
sures such as installing a low-capacity space heater in the
panel. Alternatively, leave the Controller
power ON to keep the Controller warm.
• Rapid temperature changes can cause condensation to
occur, resulting in malfunctioning due to
short-circuiting. When there is a possibility of this occurring, take measures against condensation,
such as leaving the Controller power ON at night or installing a heater in the control panel to keep it
warmer.
The Controller is tested for conformity with the sine wave
vibration test method (IEC 60068-2-6) and the
shock test method (IEC 60068-2-27) of the Environmental Testing for Electrotechnical Products. It is
designed so that malfunctioning will not occur within the specifications for vibration and shock. If, how-
ever, the Controller is to be used in a location in which it will
be directly subjected to regular vibration or
shock, then implement the following countermeasures:
• Separate the control panel from the source of the vibr
ation or shock. Or secure the Controller and the
panel with rubber padding to prevent vibration.
• Make the building or the floor vibration-resistant.
• To prevent shock when other devices in the panel such as electromagnetic contactors operate,
secur
e either the source of the shock or the Controller with rubber padding.
• To ensure safe access for operation and maintenance, se
parate the Controller as much as possible
from high-voltage equipment and power machinery.
• Secure the minimum bending radius of the ca
ble. Otherwise the cable may be damaged.
• Consider the physical size of USB memory, or SD memory
card as these will be inserted in to the
mounted Sensor Controller.
Ambient temperature and humidity
Vibration and Shock
Accessibility for Operation and Maintenance

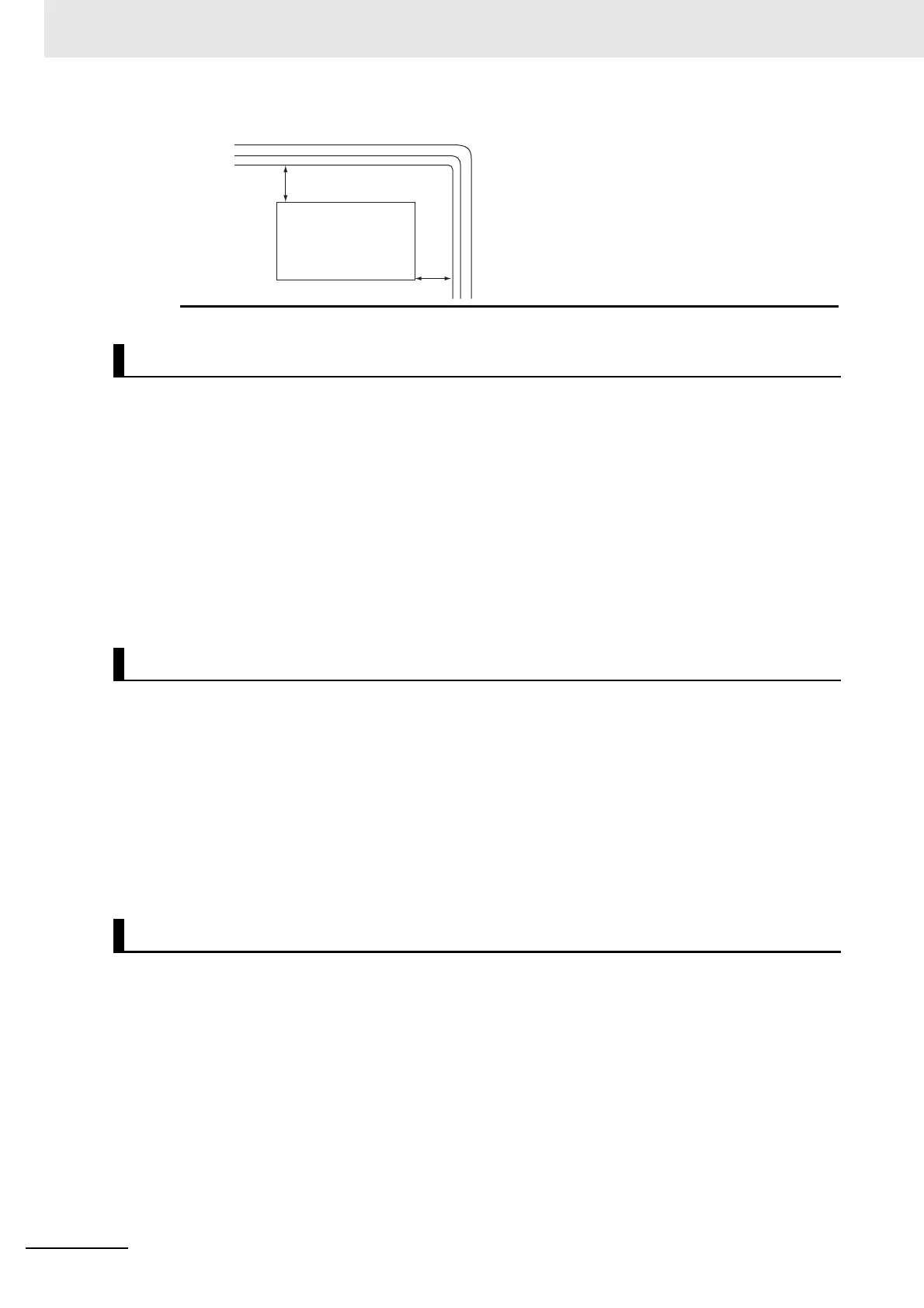

Sensor
Controller
200 mm min.
200 mm min.
Power lines
To Next Page
