Omron SYSMAC FH Series Hardware Setup Manual

5 - 39
5 Setup and Wiring
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
5-8 Installation in a Control Panel
5
5-8-2 FH-1000/FH-3000 Series
Precautions for Correct Use
Ambient Temperature
• Install and store the product in a location that meets the following conditions:
• Surrounding temperature of 0 to 50
°C (-20 to +65°C in storage)
• Relative humidity of between 35 to 85%RH
• Do not let the ambient temperature exceed 50
°C (122°F).
• Provide a forced-air fan cooling or air conditio
ning if the ambient temperature is near 50°C
(122°F) so that the ambient temperature never exceeds 50°C (122° F).

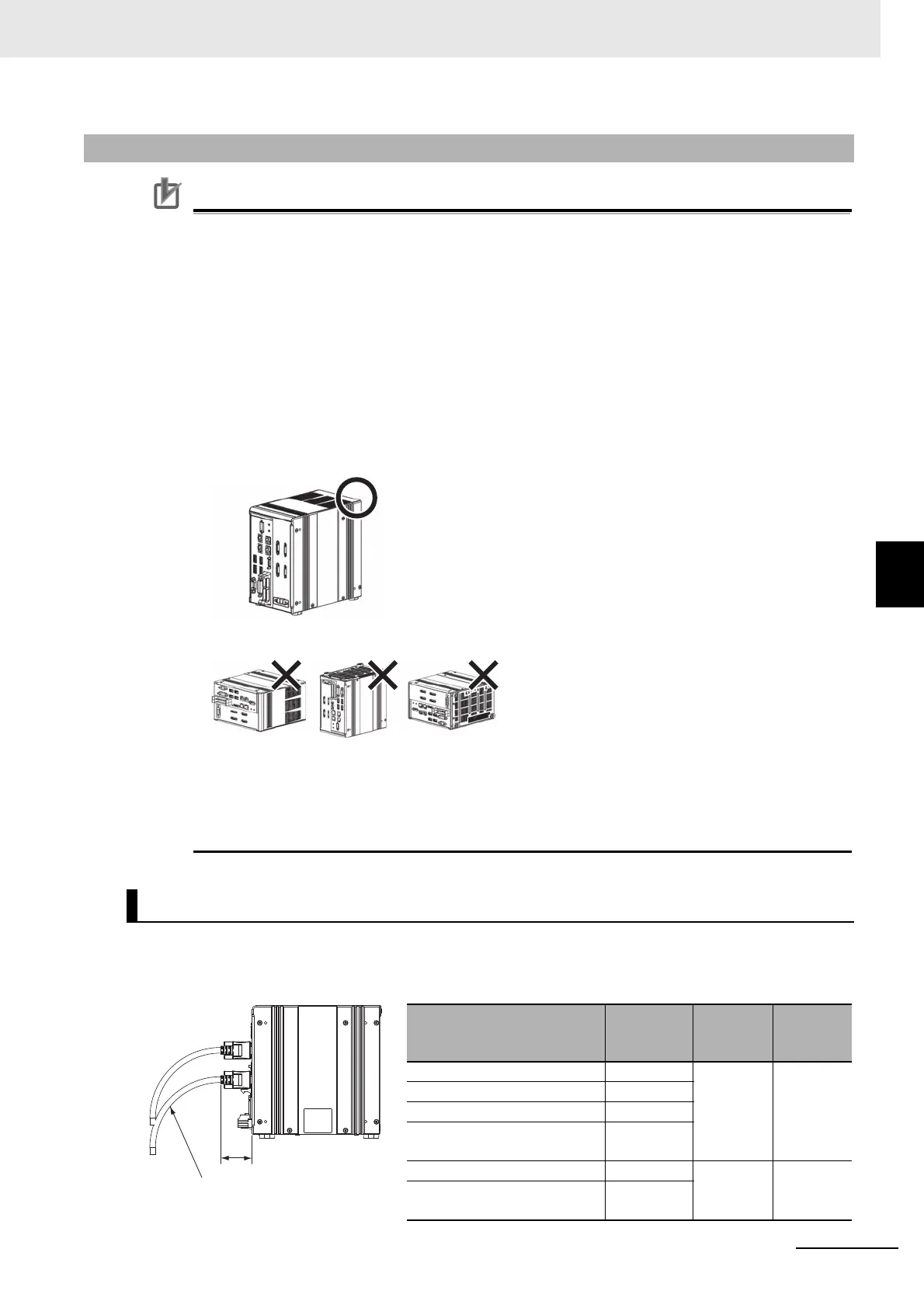

Orientation of Product
• For good heat dissipation, install the product o
nly in the position shown below so as not to
block the ventilation holes.
• Do not install the product in the following positions.
• For good ventilation, provide a clearance of 50
mm or more above the Sensor Controller
away from other devices in the normal floor mounting. For the right and left sides, provide a
clearance of 30 mm or more, and for the back side, 15 mm or more. These clearances are
also required when mounting multiple sensor controllers side by side. For the back mounting,
the back-side clearance of 15 mm is nor required.
When you connect the cable to the Sensor Controller, secure the minimum bending radius of the cable
or cable connector.
5-8-2 FH-1000/FH-3000 Series
Accessibility for Operation and Maintenance
Minimum bending radius
Connector length
Name Model
Minimum
bending
radius
Connector
length
Camera Cable FZ-VS3 69 mm 30 mm
Right-angle Camera Cable FZ-VSL3
Bend resistant Camera Cable FZ-VSB3
Bend resistant Right-angle
Camera Cable
FZ-VSLB3
Long-distance Camera Cable FZ-VS4 78 mm 42 mm
Long-distance Right-angle
Camera Cable
FZ-VSL4
