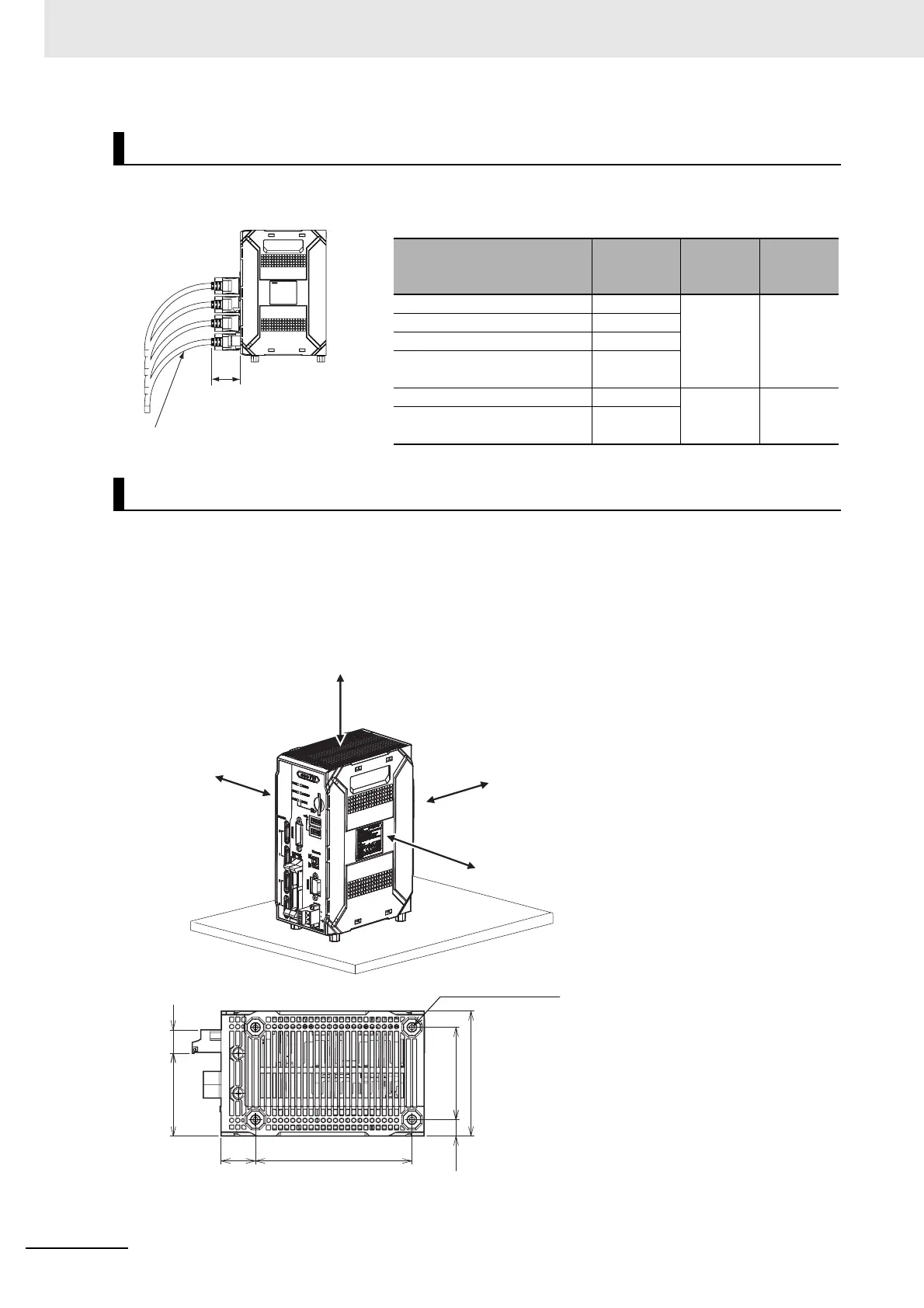

When you connect the cable to the Sensor Controller, secure the minimum bending radius of the cable
or cable connector.
• Make sure to tighten all inst
allation screws securely.
• To keep proper air flow, keep the top of the FH Sensor Controller 50 mm or more apart from other
d
evices. Install the FH Sensor Controller with a clearance of 30 mm on the right and left side, and 15
mm for rear planes. The clearance is required for installing multiple units side-by-side. For the back
mounting, the back-side clearance of 15 mm is nor required.
 Mounting the base of the Sensor Controller (Floor mounting)
• Recommended tightening torque: 0.54 N•m to 0.6 N•m
• The tolerance:
±0.2 mm
Accessibility for Operation and Maintenance
Installation in a Control Panel
Minimum bending radius
Connector length
Name Model
Minimum
bending
radius
Connector
length
Camera Cable FZ-VS3 69 mm 30 mm
Right-angle Camera Cable FZ-VSL3
Bend resistant Camera Cable FZ-VSB3
Bend resistant Right-angle
Camera Cable
FZ-VSLB3
Long-distance Camera Cable FZ-VS4 78 mm 42 mm
Long-distance Right-angle
Camera Cable
FZ-VSL4
Clearance: 50 mm
Clearance: 30 mm
Clearance: 15 mm
Clearance: 30 mm
52.9 15
59
Four, M4 depth 6.5
10.5
80
22 100
