5 Setup and Wiring
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
5-8 Installation in a Control Panel
5
5-8-3 FH-L Series

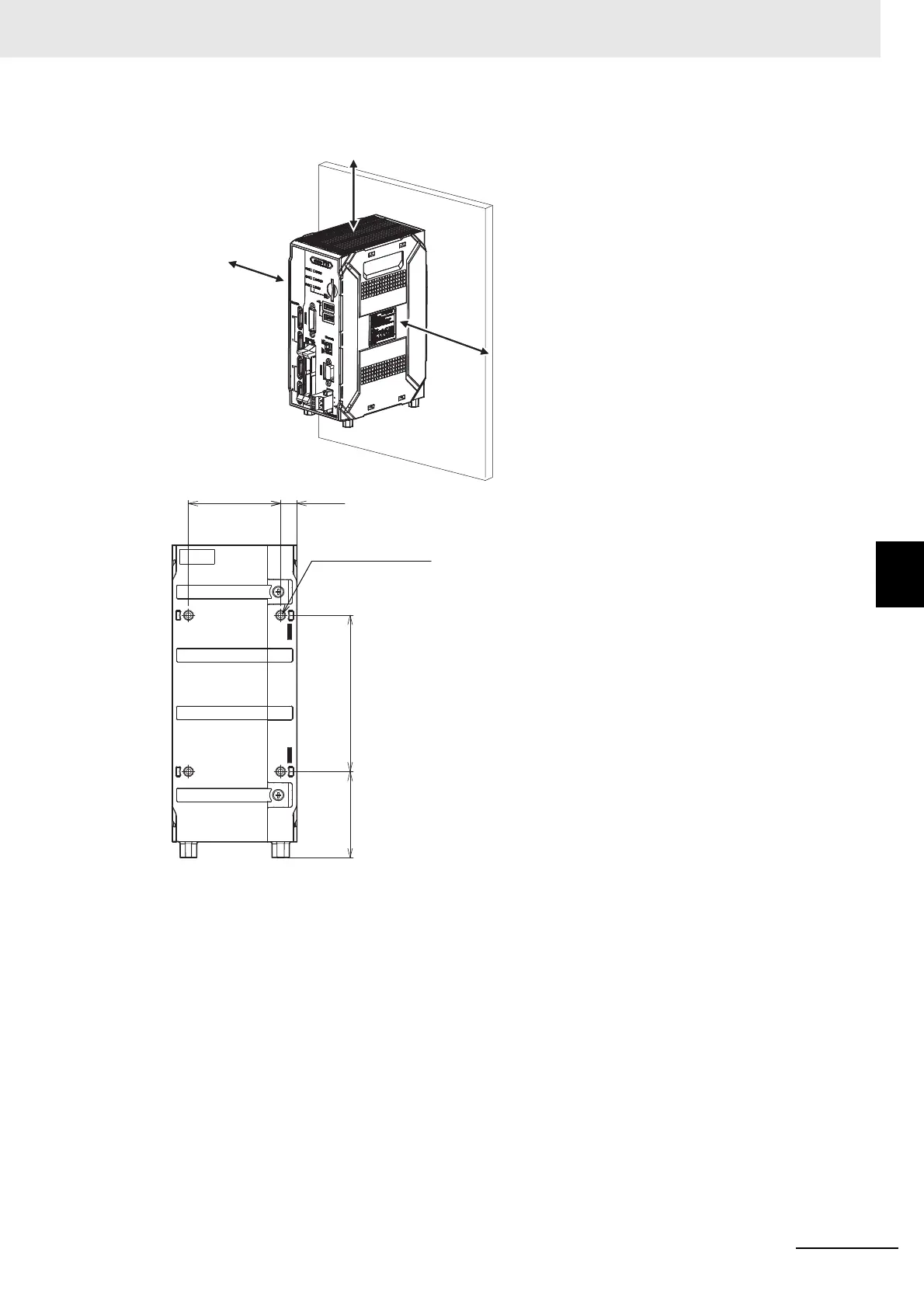

 Mounting of the Back Side
• Recommended tightening torque: 0.54 N•m to 0.6 N•m
• The tolerance:
±0.2 mm
Clearance: 50 mmClearance: 50 mmClearance: 50 mm
Clearance: 30 mmClearance: 30 mmClearance: 30 mm
Clearance: 30 mm
10055
Four, M4 depth 6.5
59 10.5
