Omron SYSMAC FH Series Hardware Setup Manual

5 Setup and Wiring
5 - 44
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

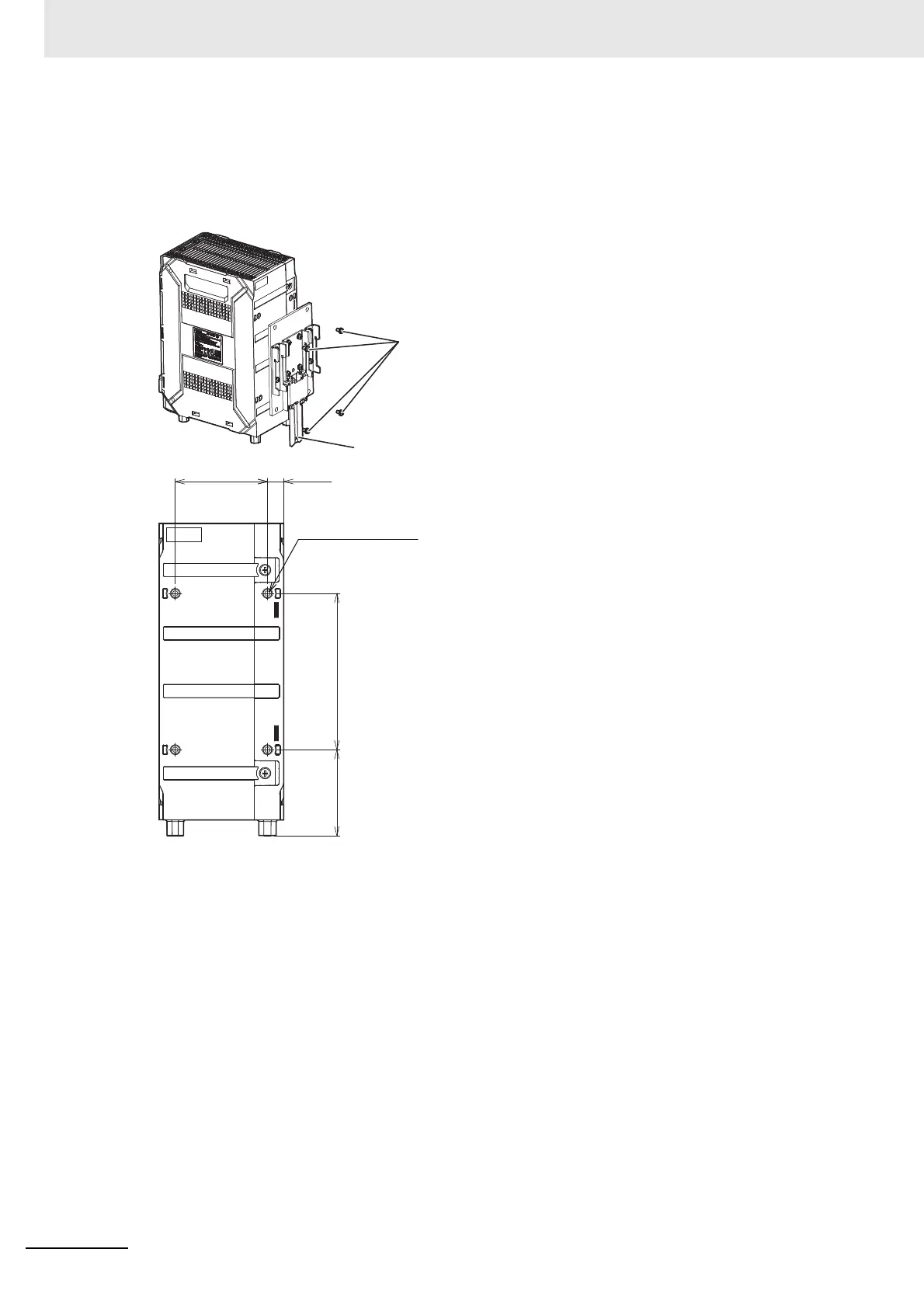

 Mounting the DIN rail
1 Mount DIN rail mounting bracket: FH-XDM-L, to the four mount holes on the back of the Sensor
Controller.
2 Mount the DIN rail.
• Recommended tightening torque: 0.54 N
•m to 0.6 N•m
• The tolerance:
±0.2 mm
Screw for Fixing
Four, M4 x 10
FH-XDM-L
10055
Four, M4 depth 6.5
59 10.5
