Omron SYSMAC FH Series Hardware Setup Manual

3 Configuration
3 - 10
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

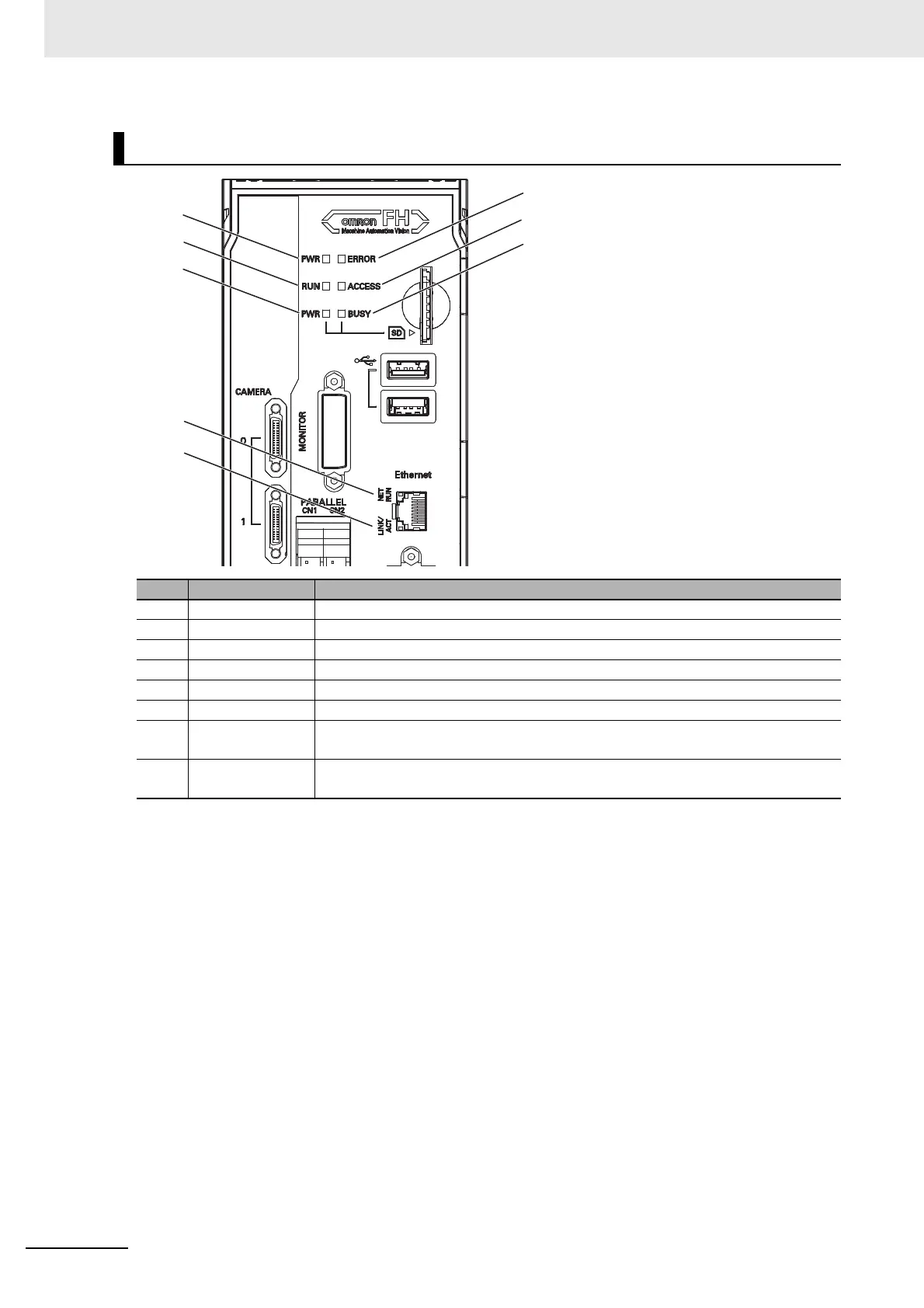

Component Names and Functions
LED name Description
(A) PWR LED Lit while power is ON.
(B) ERROR LED Lit when an error has occurred.
(C) RUN LED Lit while the layout turned on output settin
g is displayed.
(D) ACCESS LED Blinks while the internal nonvolatile memory is accessed.
(E) SD PWR LED Lit while power is supplied to the SD memory card and the card is usable.
(F) SD BUSY LED Lit when access to the SD memory card.
(G) Ethernet NET
RUN LED
Lit while Ethernet communications are usable.
(H) Ethernet NET
LINK/ACT LED
Blinks when connected with an Ethernet device
, and blinks while performing com-
munications.
(A)
(C)
(E)
(B)
(D)
(F)
(G)
(H)
