Omron SYSMAC FH Series

3 Configuration
3 - 22
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
Additional Information
We have the 2D CAD data or 3D CAD data.
You can download CAD data from www.fa.omron.co.jp.

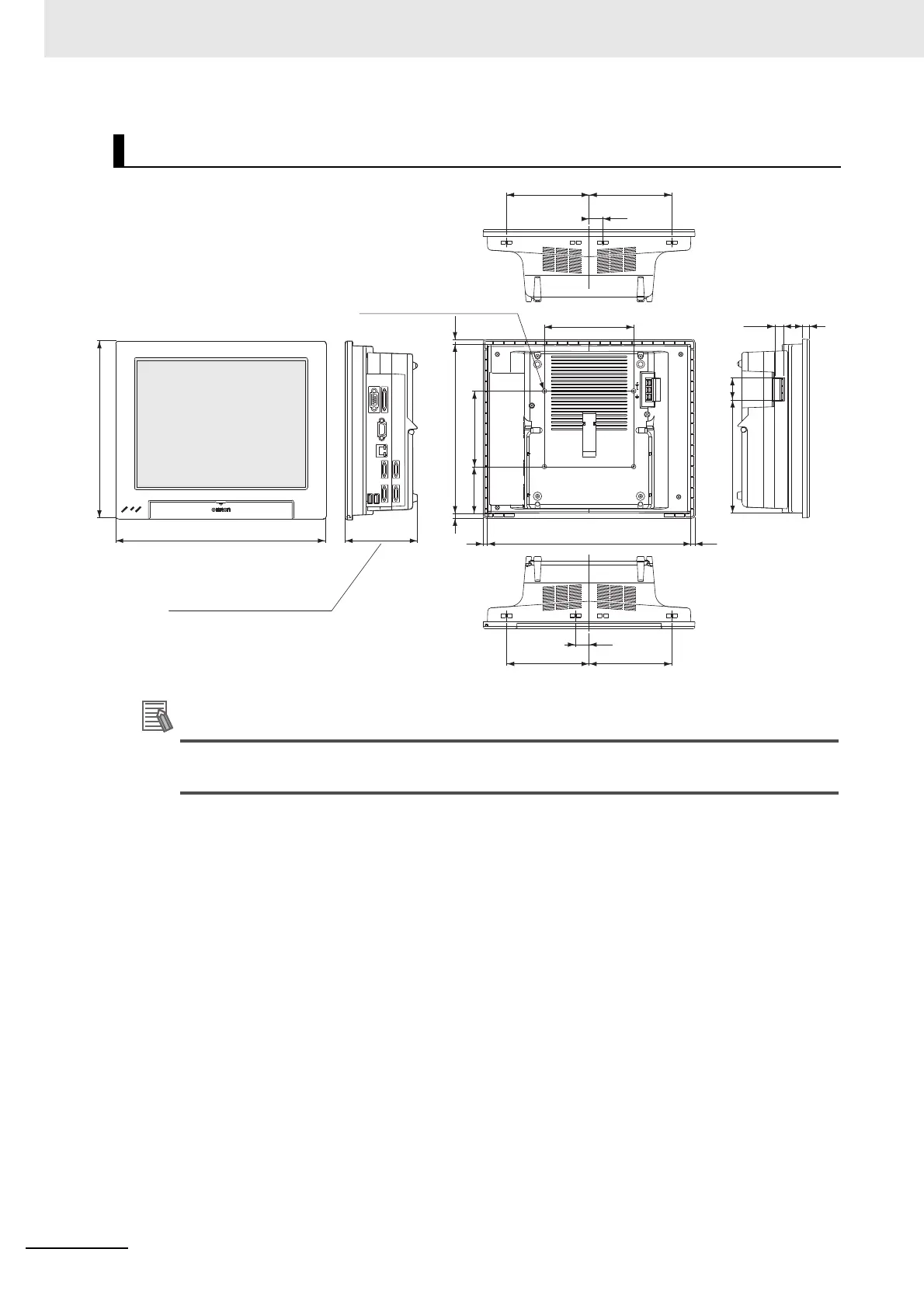

Dimensions
246
296
130
110
7
6
68
Four, M3 mounting holes
with a depth of 6 mm
(7)
(6)
+
-
12.8(28.4)10
33
(163.5)
104
20
120 120
20
120 120
308
260
* The size of the 2-camera
type is 83.
(Unit: mm)
