3-2 Camera
3
3-2-6 Intelligent Compact Digital CMOS Camera: FZ-S camera Series
 Narrow view: FZ-SQ010F
 Standard view: FZ-SQ050F
*1. The mounting brackets can be connected to either side.

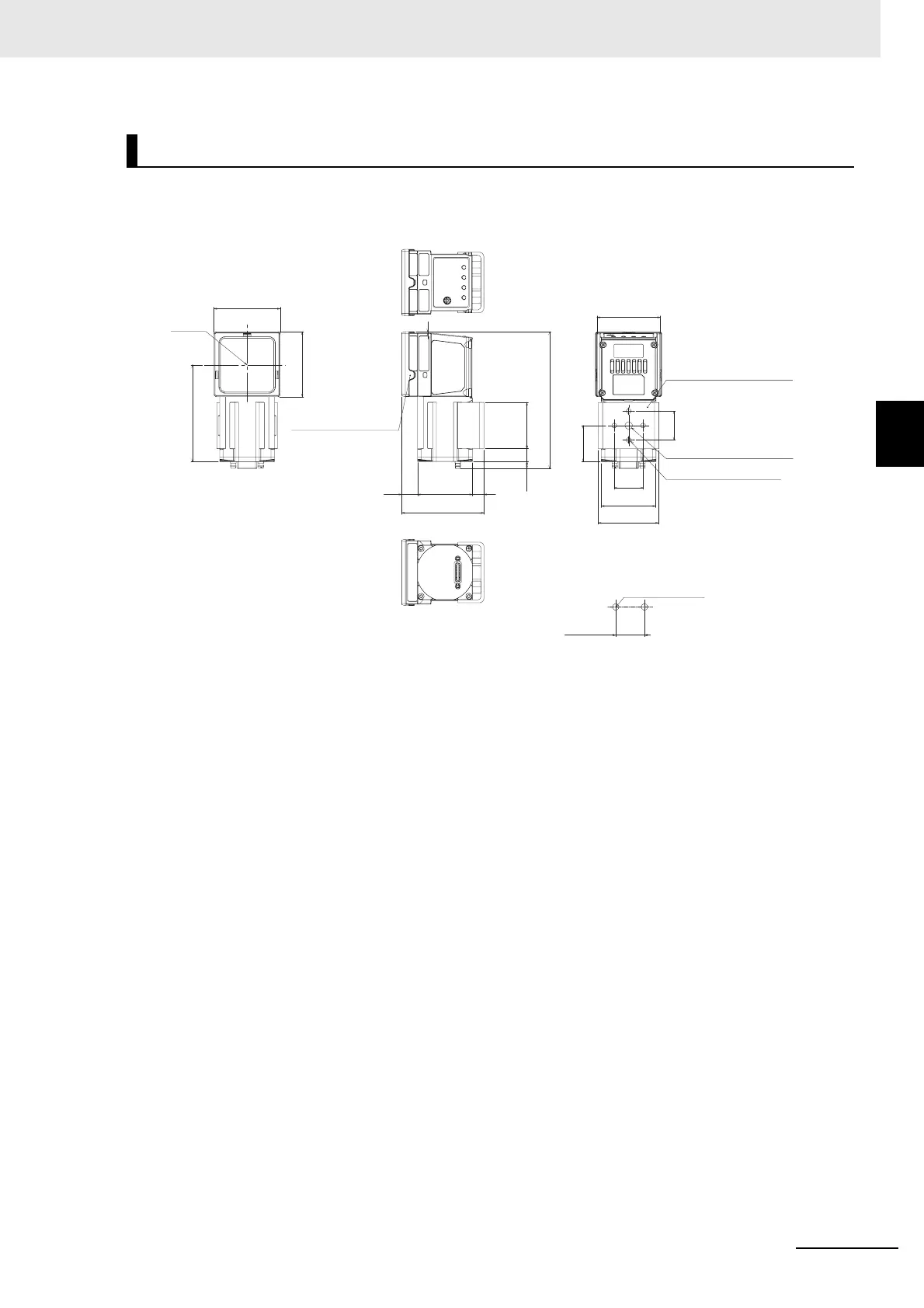

Dimensions
1
(57)
11 38
(94.8)
44
Mounting Bracket *1
1/4-20UNC Depth: 6
Four, M4 Depth: 6
46
45
67
Optical
axis
8
9
4.8
32
20
Polarizing
Filter Attachment
20
(25)
38
42
20±0.1
Two, 4.5 dia.
Mounting Hole Dimensions
Tightening torque: 1.2 N·m
(Unit: mm)
