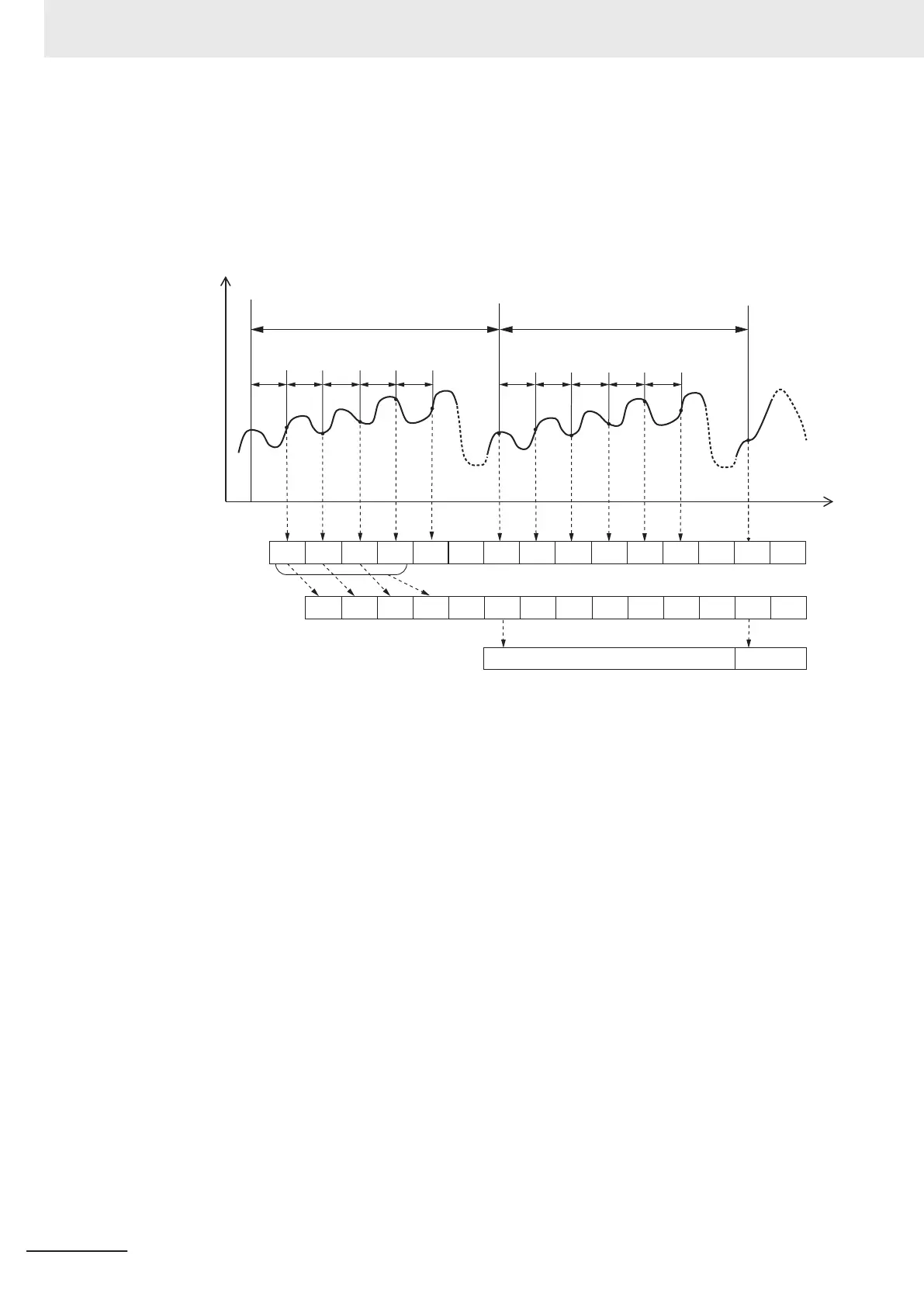

The High-speed Analog Input Units convert input signals based on the Digital Filter Processing Pe-
riod. Converted analog input data is stored in moving average buffers to perform the moving aver-
age processing. If the moving average count is not reached, the analog input data stored in the buf-
fers is processed as moving average data. The moving average data is output as an analog input
value at the timing of sampling.
D1 D2 D3
Average
1
Average
6
Average6 Average16
Average
7
Average
8
D1
D2
D3
D4
D5
…
D13
D14
D15
Digital Filter Processing Period Digital Filter Processing Period
Sampling period Sampling period
D1 D2 D3 D4 D5 D10 D11 D12 D13 D14 D15
… …
D20
Input
value
Time
…
Average
9
Average
10
Average
11
… …
Average
16
Moving average
processing buffer
Moving average data
Analog input value
Average1 = (D1+D2+D3+D4) /4
Average2 = (D2+D3+D4+D5) /4
Average6 = (D6+D7+D8+D9) /4
Average16 = (D16+D17+D18+D19) /4
D10
D11
D12
------

Moving Average Count Setting
Set the moving average count in the Unit operation settings. The settings are shown in the follow-
ing table.
8 Functions
8 - 24
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
