Omron SYSMAC NX series User Manual

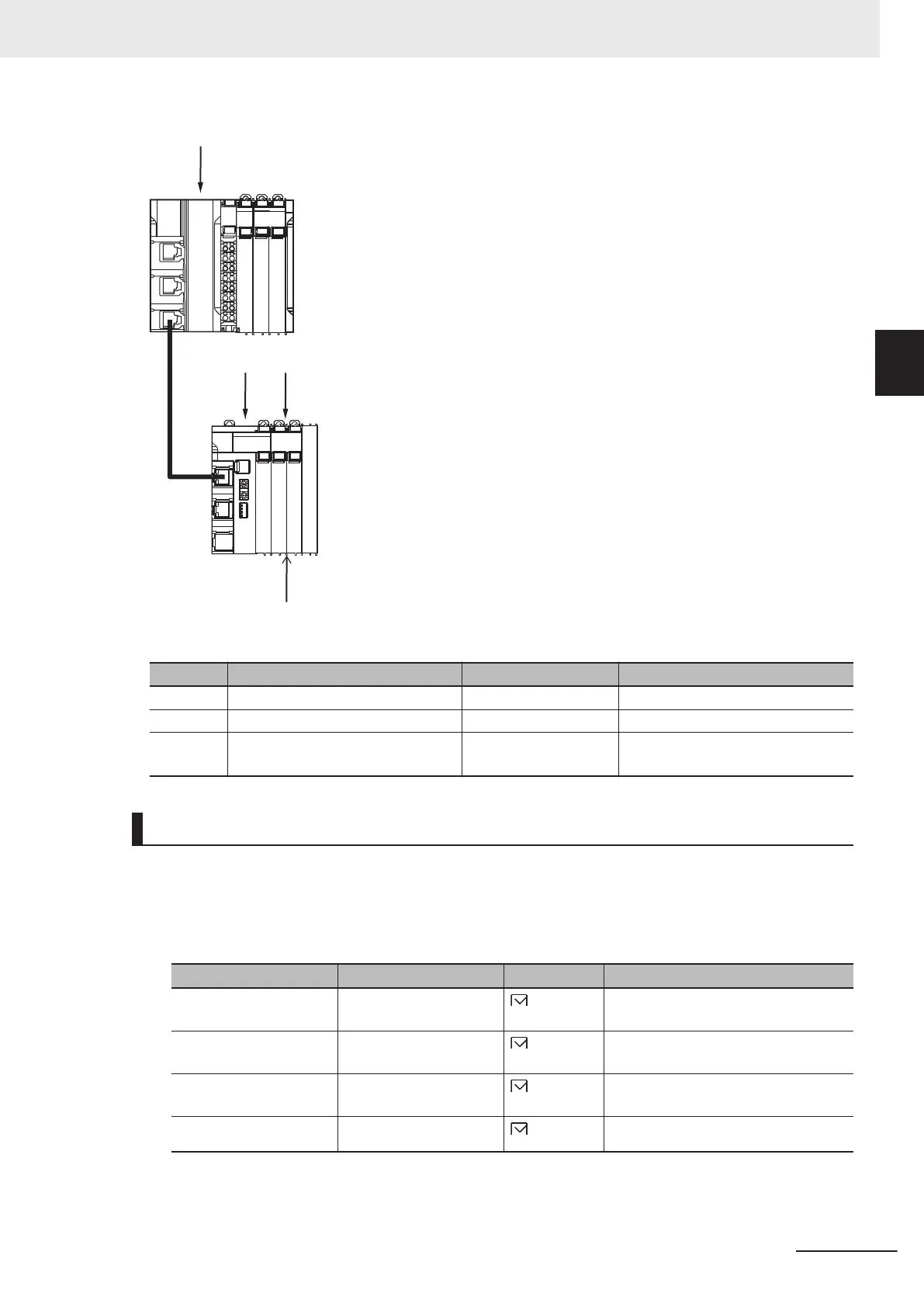

Output device
(a)
(b)
(c)
Letter Description Model Description
(a) NX-series CPU Unit
NX102-££££
---
(b) EtherCAT Coupler Unit NX-ECC203 Node address: 1
(c) High-speed Analog Input Unit NX-HAD401
• NX Unit number: 1
• Channel used: Ch1
Variable Table
External variables and internal variables that are used in the programming are given below.

External Variables
Use the system-defined variables given in the table below as external variables.
Variable name Data type Constant Description
_EC_PDSlavTbl[1] ARRAY[1..192] OF
BOOL
Process Data Communicating Slave
Table (Node1)
_EC_CommErrTbl[1] ARRAY[1..192] OF
BOOL
Communications Error Slave Table
(Node1)
_EC_SlavErrTbl[1] ARRAY[1..192] OF
WORD
Slave Error Table (Node1)
_EC_InDataInvalid BOOL
Input Process Data Invalid Error
Appendices
A - 35
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
A-4 Digital Filter Design with the Library
A
A-4-4 Connection to the Communications Coupler Unit
