Omron TM Collaborative Robot: Conveyor Tracking User’s Manual 23

 When no object passes through the sensor beam, the signal is Low.

 When an object passes through the sensor beam, the signal is High.

Then, click “Start Calibration”.

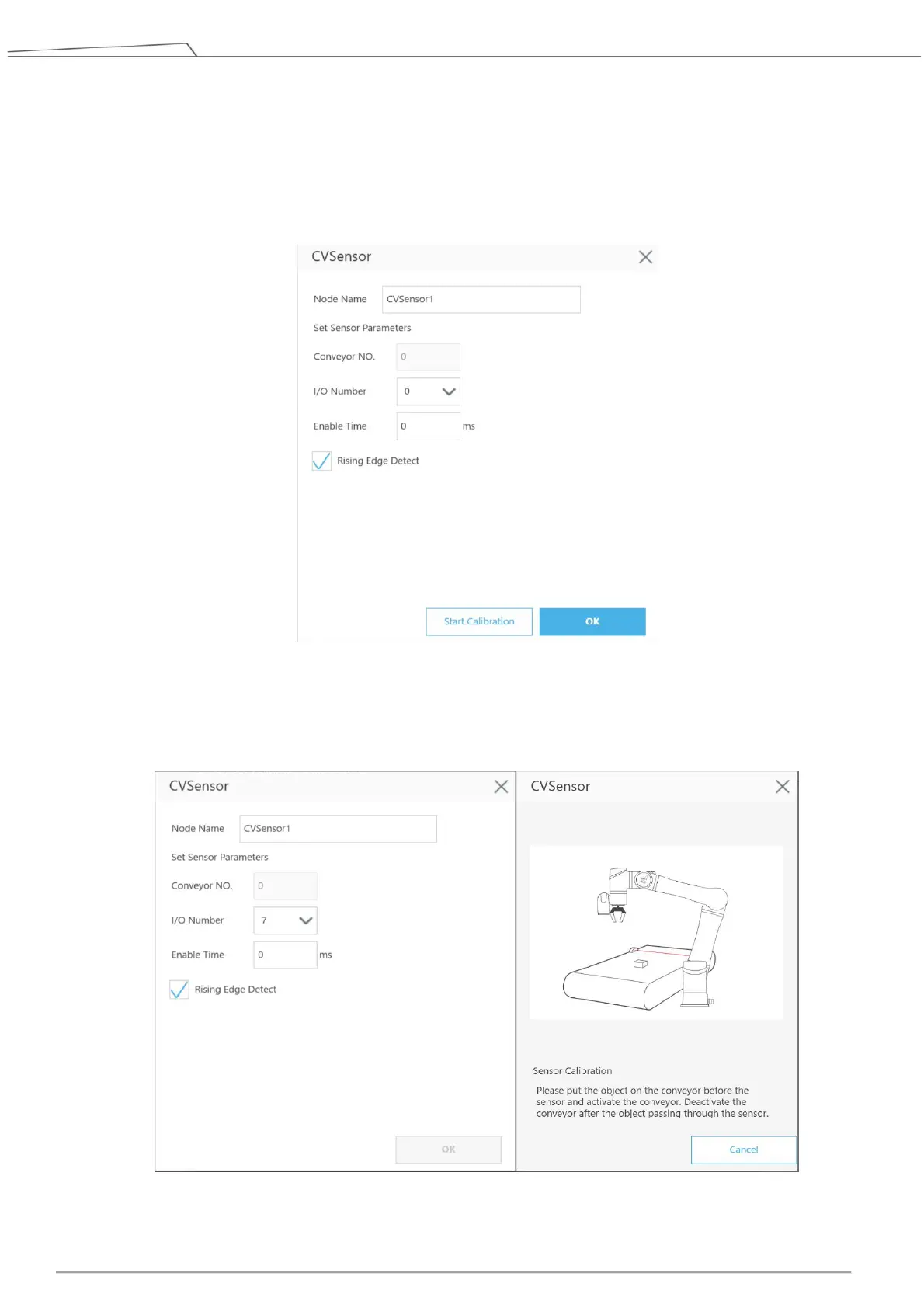

Figure 10: CVSensor

Follow the instruction on the screen to perform calibration. Users have to calibrate two Calibration

Points.

Figure 11: Sensor calibration
