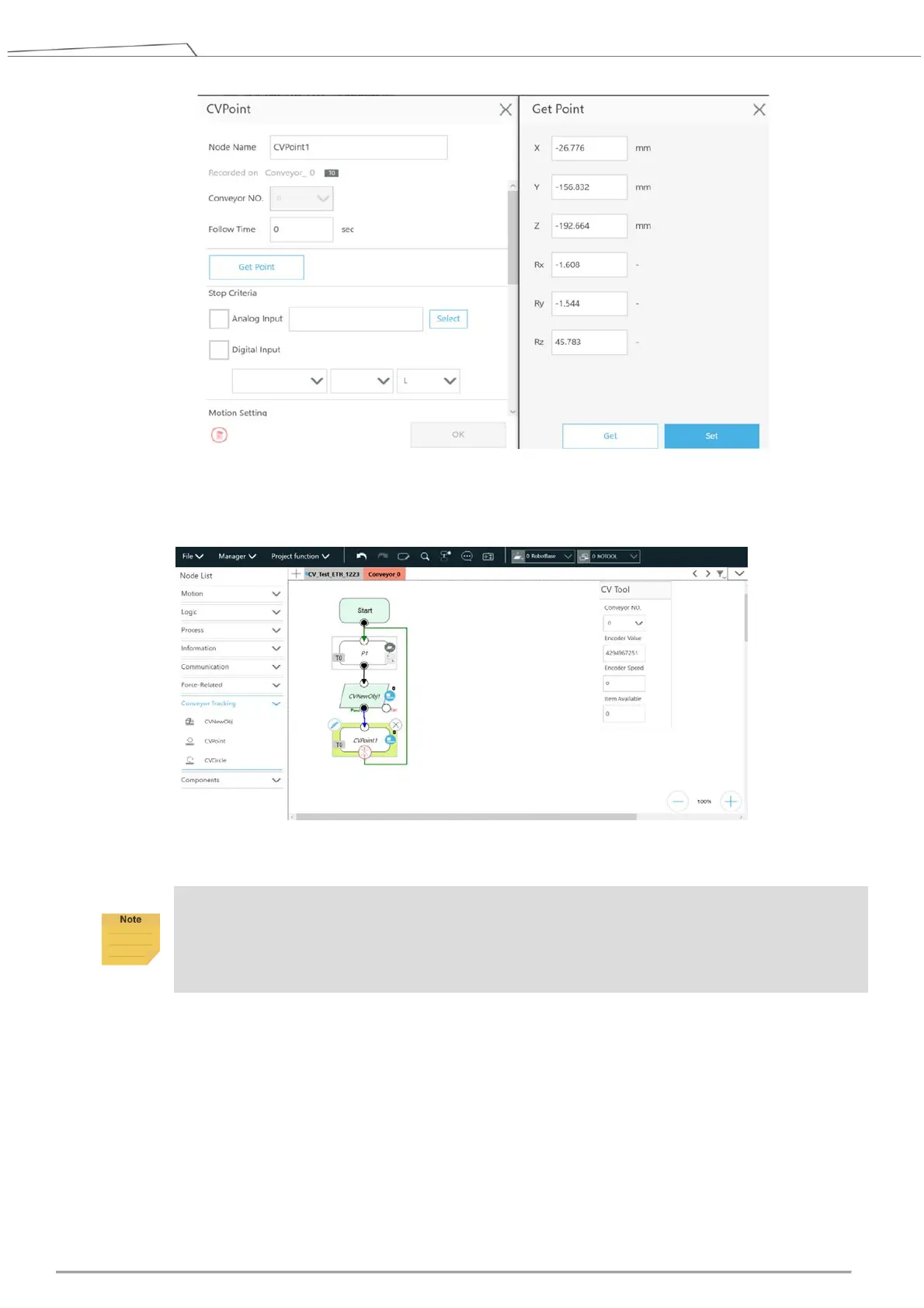

Omron TM Collaborative Robot: Conveyor Tracking User’s Manual 47

Figure 48: Get Point

18. Make the flow an infinite loop to form a simple object tracking process.

Figure 49: Form a loop

NOTE：

Use either the advanced setting of gripping objects to go with the CVPoint's end tool I/O status

and the point position setting or the output variables to go with Plug&Play software package to

control the end tool to complete the gripping and releasing process.
