Omron TM Collaborative Robot: Conveyor Tracking User’s Manual 29

peripherals.

Motion Settings: Set the motion speed of the CVCircle in-position process.

Digital Output: Set the output status of the control box or tool end.

Output Variables: The CVCircle outputs the current motion state via the custom variables. The

output variables can go with Plug&Play software package to control the end tools.

Blending: Enable the robot to move to different points in a smooth way.

Advanced Settings: Switch the end tool. The CVCircle changes the in-position pose by the end

tool setting.

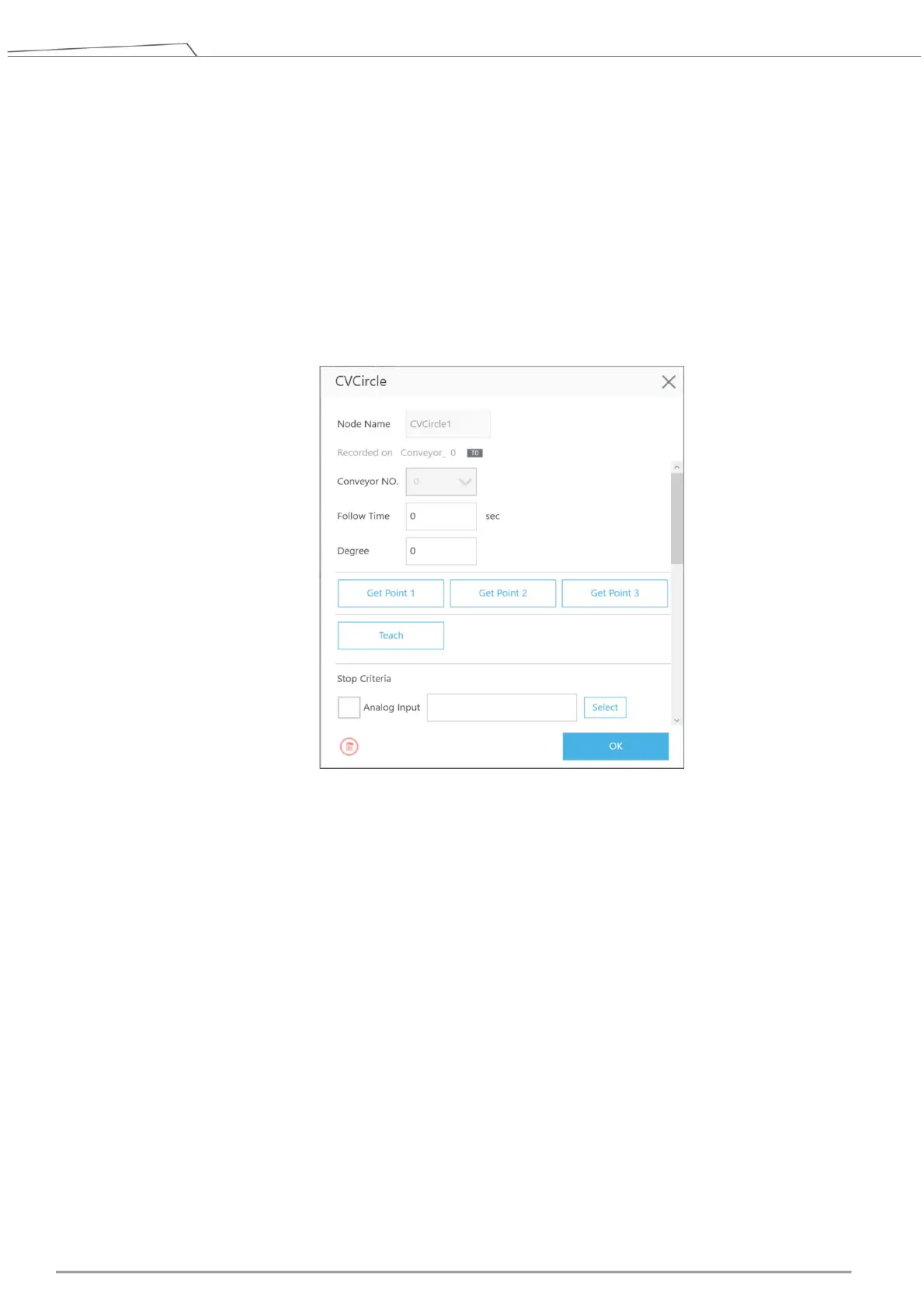

Figure 16: Get Point
