F
-
4300 CLAMP
-
ON ULTRASONIC FLOW METER
ONICON Incorporated 727.447.6140 Page 35 onicon.com
9. Reinstall the mylar; its edge abutting the bracket edge mark on the pipe and the overlapping edge in line with the line
drawn down the center of the pipe. Tape it in this position on the pipe. Take the second bracket and place it against
the edge of the guide with it centered on the halfway mark drawn on the guide.
10.
around the bracket with a pencil, marker, or chalk. Remove the bracket and the spacing guide.
11.
hardware as necessary to remove any grit, corrosion, rust, loose paint, or other contaminants. The cleaned surface
12. Replace the spacing guide back in the same position it was in and re-tape it to the pipe.
13. Position the bracket as before against the edge of the guide with the center of the bracket centered on the halfway
ensure that the bracket remains centered on the pipe.
The bracket is centered on the pipe when the bottom edges of both stainless steel side plates on the bracket are in
the angle is correct.

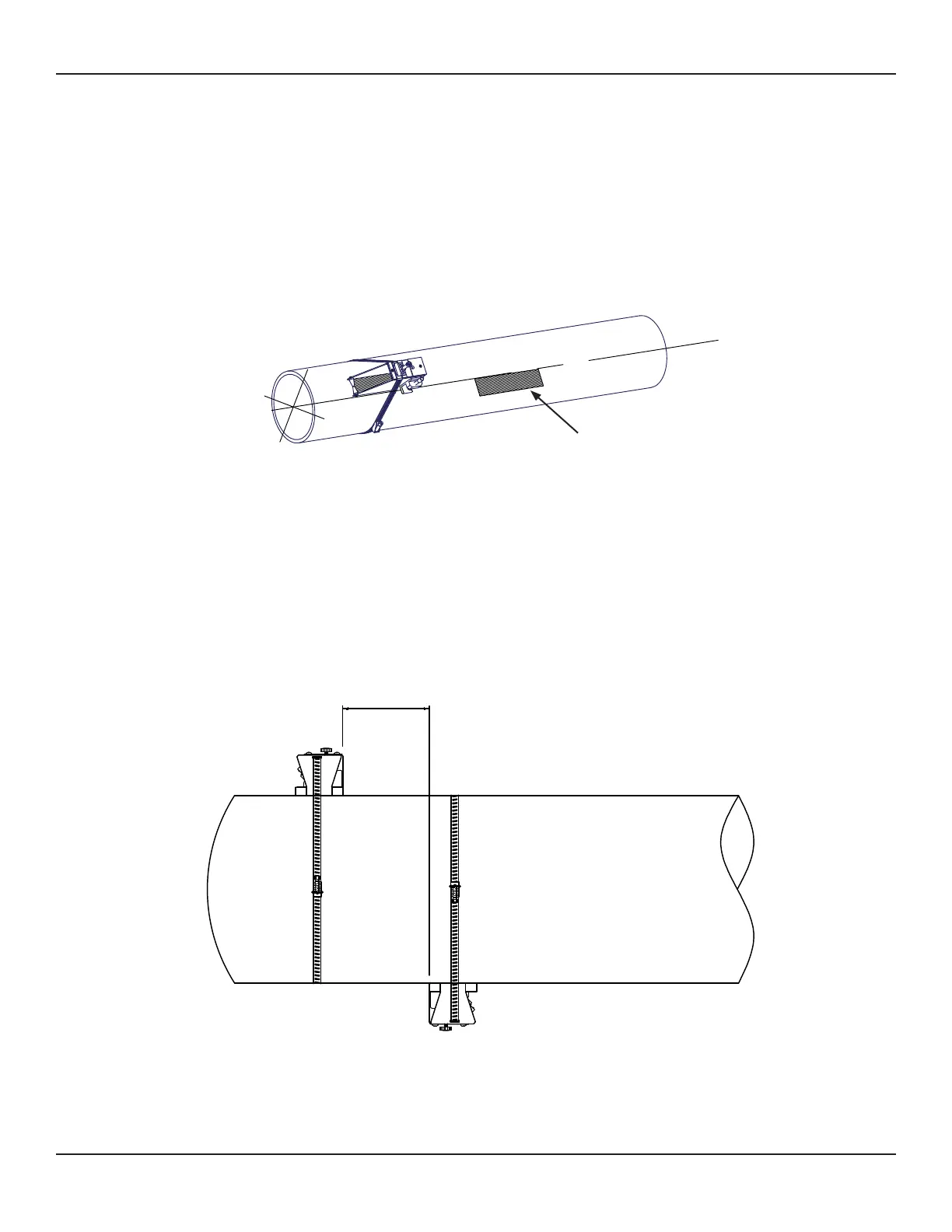

Pipe
Separation Distance
3.3.4.3 One (1) Cross Mounting Installation for 30 Series Transducers (Continued)
Opposite side of pipe
To Next Page
