Operator
’s Manual – OPTI CCA-TS2
8-17
8 DIAGNOSTICS
AND TROUBLESHOOTING

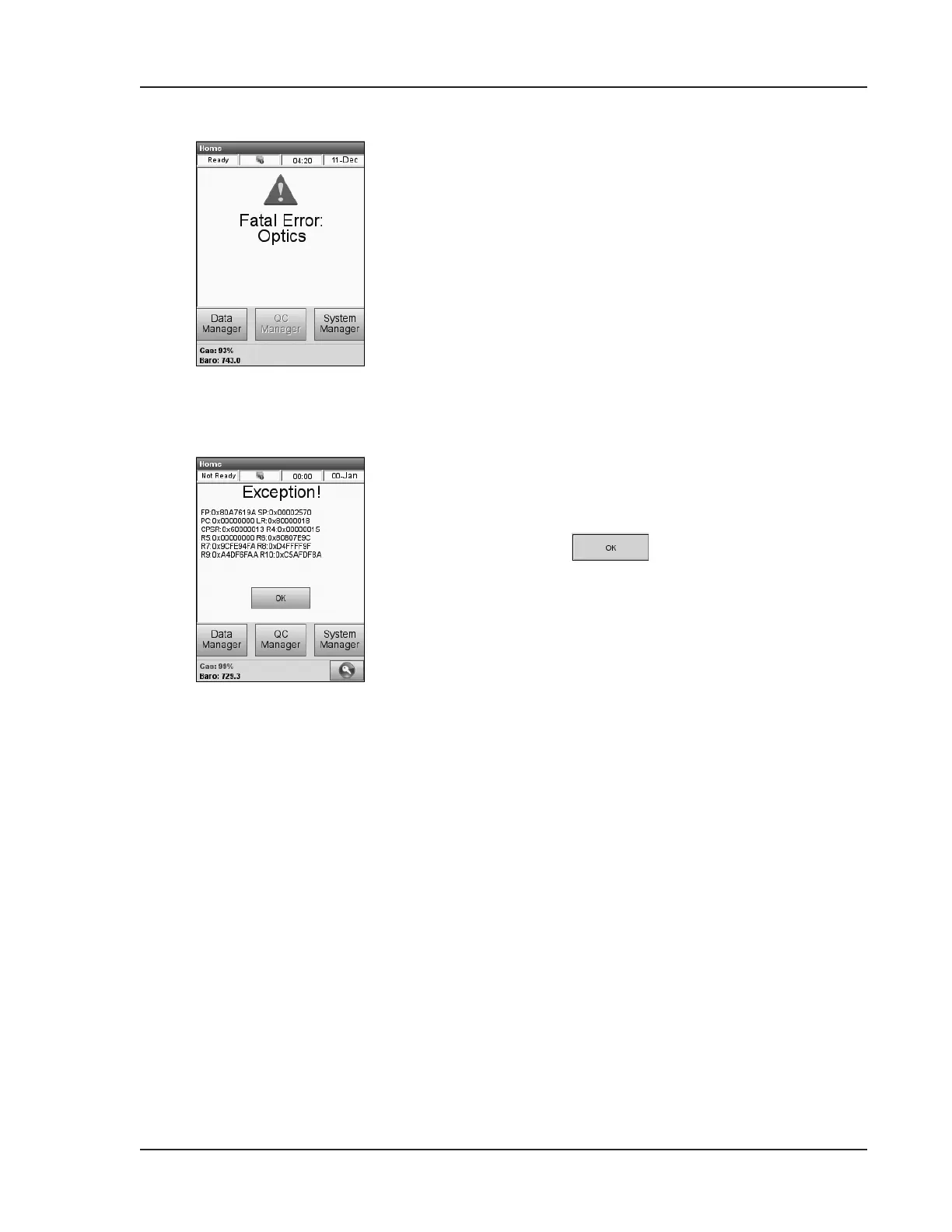

<Fatal Error: Optics>
Failure detected in optics system.
•
Shut down the system and restart to attempt to
clear the error
.
•
If the error cannot be cleared by cycling the
power
, contact
T
echnical Support for assistance.
<Exception!>
Processor exception occurred.
•
Press
to exit the screen and
contact
T
echnical Support for assistance.
146
148
