Operator’s Manual – OPTI CCA-TS2 8-33
8 DIAGNOSTICS AND TROUBLESHOOTING
8.2.21 Cassette Detect
The purpose of this test is to calibrate the Cassette
Detect function.
In the main menu, press <System Manager ->
Diagnostics>.
• Select the <Tests> tab.
•
Press <Cassette Detect> to start the
calibration (Fig. 8-41).
• Insert a patient cassette (Fig. 8-42).
• Remove the cassette and leave the cover open
(Fig. 8-43).
• Close the SMC cover (Fig. 8-44).
• The system performs a Cassette Detection
Calibration (Fig. 8-45).

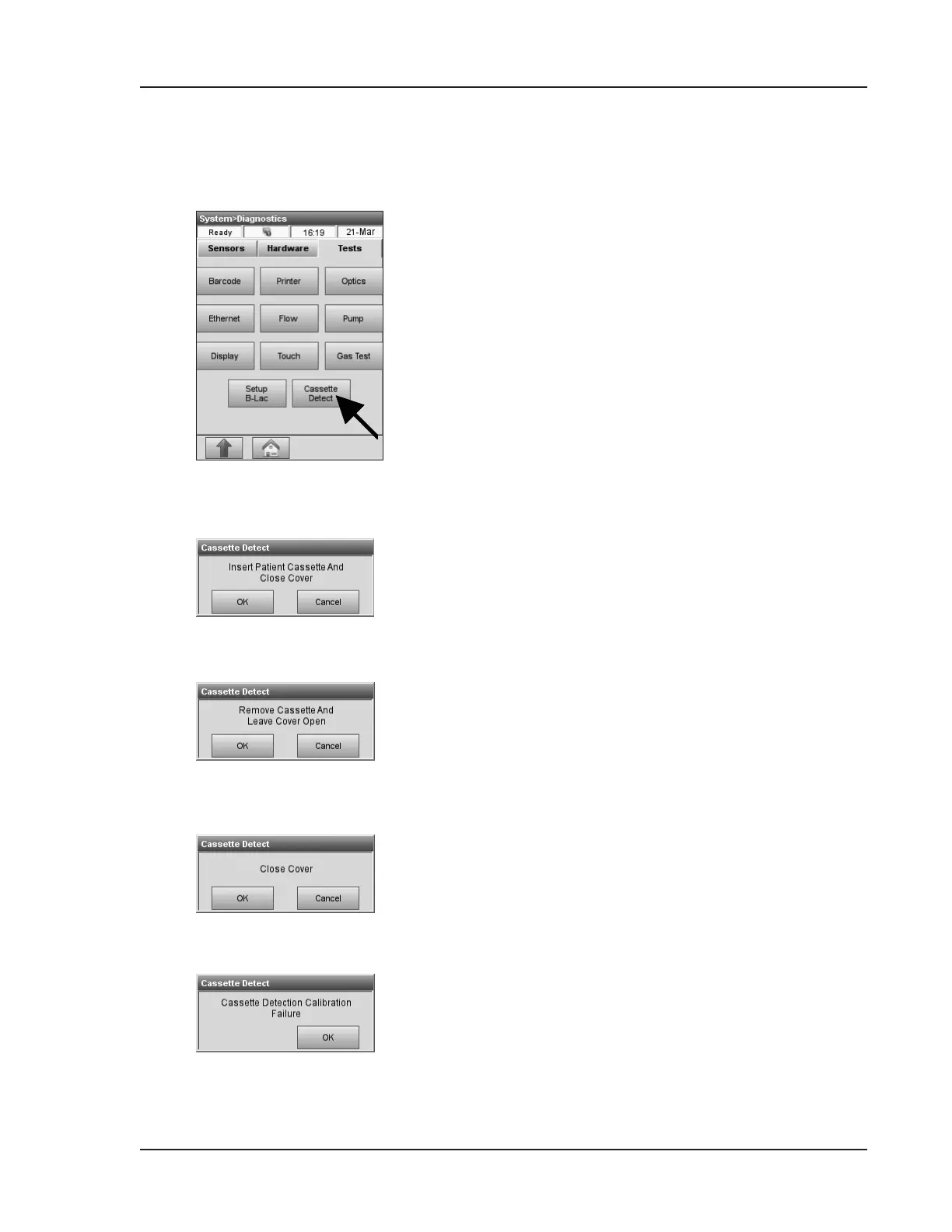

Fig. 8-41 Cassette Detect
Fig. 8-42 Insert Cassette
Fig. 8-44 Close Cover
Fig. 8-45 Calibration
Fig. 8-43 Remove Cassette
