3.2.2.5 Setting up Limits for Calculated Parameters
This menu allows you to set up reference and critical
measurement limits for all calculated parameters.
A result that is outside the limits you dene here
will be agged with a single up-arrow if above the
high reference limit, or a single down-arrow if below
the low reference limit. Results above or below the
critical limits will be agged with a double up-/or
down-arrow. A message is included on the printout
explaining each arrow.
NOTE: Whenthepatienttemperaturehasbeen
changed,boththeuncorrectedandcorrected
parameterswillbecheckedagainstthe
limitvaluesprogrammedhereandagged
accordingly.
1. In the main menu, select <System Manager>
and <Setup>. Press <Calculated Limits> on
the <Patient/QC> tab (Fig. 3-31).
2. On the <Reference> tab (Fig. 3-32), select the
parameter you want to change and press
to
enter the new limit value. By default, reference
ranges are enabled.
3. Press to access Pages 2, 3 and 4 with
the remaining parameters (Fig. 3-33).
4. Press to accept the new limit value.
The instrument is preset to the following reference
ranges:
HCO3
-
: 18.0 - 23.0 mmol/L
 BE: -2.0 - 3.0 mmol/L
BE
ecf
: -2.0 - 3.0 mmol/L
BE
act
: -2.0 - 3.0 mmol/L
BB: 46.0 - 52.0 mmol/L
tCO2: 22.0 - 29.0 mmol/L
st.HCO3
-
: 22.0 - 24.0 mmol/L
st.pH: 7.350 - 7.450
SO2(c): 95.0 - 98.0 %
O2ct: 15.0 - 23.0 mL/dL
Hct(c): 34.0 - 51.0 %
cH
+
: 36.0 - 44.0 nmol/L
AaDO2: 5.0 - 20.0 mmHg
 AnGap: 10.0 - 20.0 mmol/L
P50: 25.0 - 29.0 mmHg
nCa
++
: 0.10 - 3.00 mmol/L

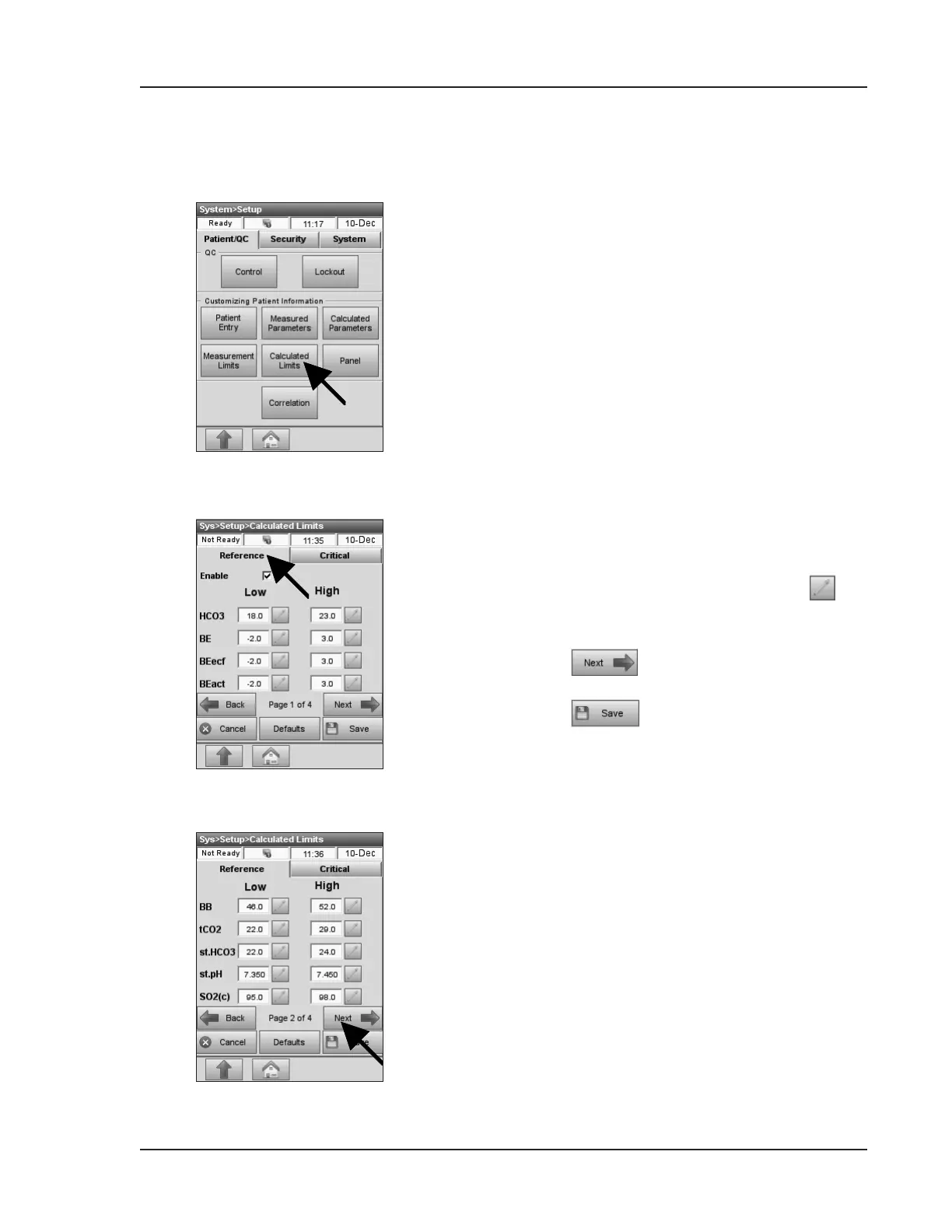

Fig. 3-31 Calculated Limits
Fig. 3-32 Reference Limits
Fig. 3-33 Enter Limits 2
