Operator
’s Manual – OPTI CCA-TS2
3-33
3 CUSTOMIZA
TION
3.2.4.4.2
Beep
Adjustment
This option lets you adjust the volume of the audible
alarm (Beep).
1.
In the main menu, select
<System Manager>
and
<Setup>
.
2.
In the
<System Setup>
menu, press the
<System>
tab and then
<Hardware>
.
3.
Select
<Beep Enable>
(Fig. 3-75).
4.
Select
<High>
or
<Low>
for
<Beep
V
olume>
.
5.
Press
to accept the changes.
6.
Press
to return to the
<Setup>
screen or
to return to the main menu.

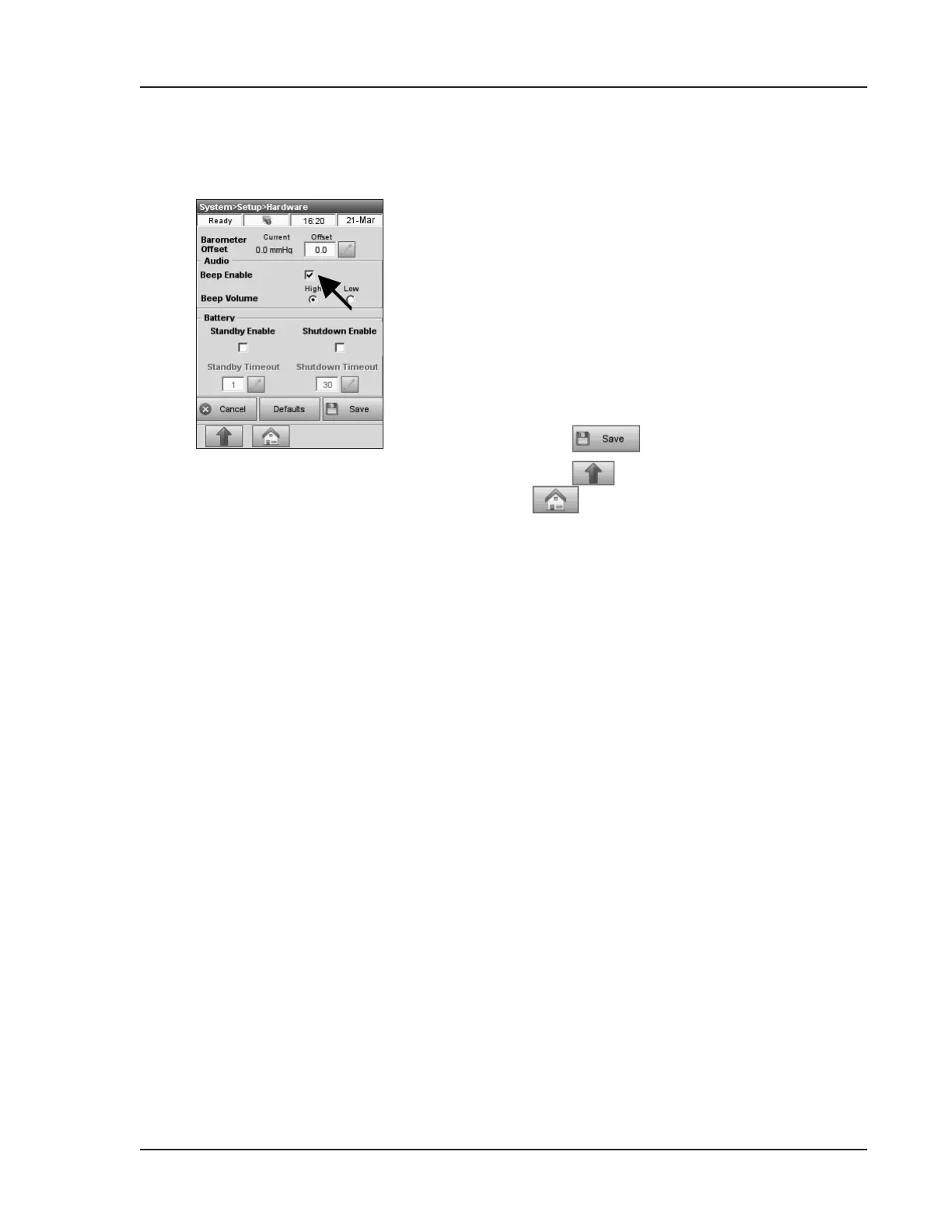

Fig. 3-75 Enable Beep
