3-36 Operator’s Manual – OPTI CCA-TS2
3 CUSTOMIZATION
<ASCII Ethernet> (Fig. 3-80) - Data in easy
to read OPTI Medical custom format. The OPTI
CCA-TS2 exports data string identical to the internal
printer output.
•
Enter IP address of the host computer and port.
• Press to accept the changes.
<ASTM Serial> (Fig. 3-81) - Complies with ASTM
standard. Please refer to OPTI CCA-TS2 interface
specications for more information.
•
Select <ASTM Handshaking>.
<None> – all data is sent without an
acknowledgement.
<Single> – communication is established
and all data is sent in a single message with
acknowledgment.
<Full> – communication is established
and each record is sent separately with an
acknowledgement.
•
Press to accept the changes.
<ASTM Ethernet> (Fig. 3-82) - Complies with
ASTM standard. Please refer to OPTI CCA-TS2
interface specications for more information.
• Enter IP address of the host computer and port.
•
Select <ASTM Handshaking>.
<None> – all data is sent without an
acknowledgement.
<Single> – communication is established
and all data is sent in a single message with
acknowledgment.
<Full> – communication is established
and each record is sent separately with an
acknowledgement.
•
Press to accept the changes.

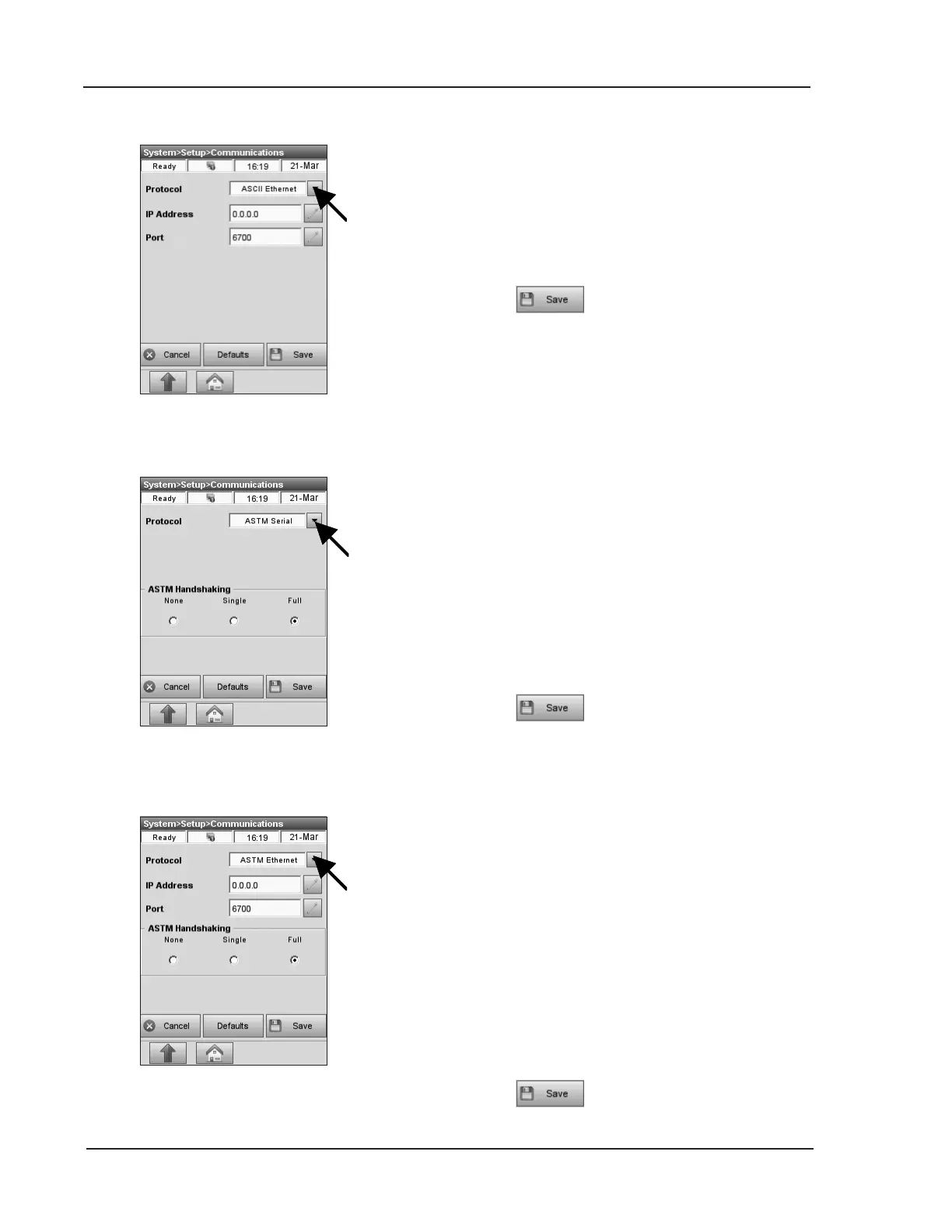

Fig. 3-80 ASCII Ethernet
Fig. 3-81 ASTM Serial
Fig. 3-82 ASTM Ethernet
