Operator’s Manual – OPTI CCA-TS2 4-7
4 CALIBRATION AND QUALITY CONTROL
9. Press the <Level 2> and <Level 3> tabs to
display the results for the respective levels.
NOTE: Resultsobtainedareapplicabletothesensor
cassettetypebeingusedforpatientsample.
• The unit automatically checks the results
against the ranges and stores the results in its
internal database.
• For parameters within range, <Pass> will
be displayed and printed.
• For parameters out of range, or if an internal
drift is detected, <Fail> will be displayed.
NOTE: Theprintoutwillstartautomaticallywhen
therstresultsaredisplayed.Thisfeature
maybeturnedoffinsetup(SeeSection
3.2.4.1).Additionalinformationonprinting
reportscanbefoundinChapter6,Data
Management.
10. Press (Fig. 4-10) to exit the results screen.
11. You will then be prompted to open the sample
chamber cover and remove the SRC (Fig. 4-11).
12. Place the SRC back into its pouch immediately
after removal from the instrument.
13. Close the sample chamber cover.
• If the SRC test failed, gently clean the SRC,
the optics window, and the inside cover of
the SMC with alcohol and a lint-free cloth
and repeat this process. If it fails again,
refer to the troubleshooting section in
Chapter 8 of this manual.
NOTE: ForapplicationofQCLockout,pleaserefer
tosection3.2.1.2.
NOTE: Verifywithyourparticularregulatory
agencyandyourinternalpolicyregarding
numberoflevelsandfrequencyofSRCsto
berun.

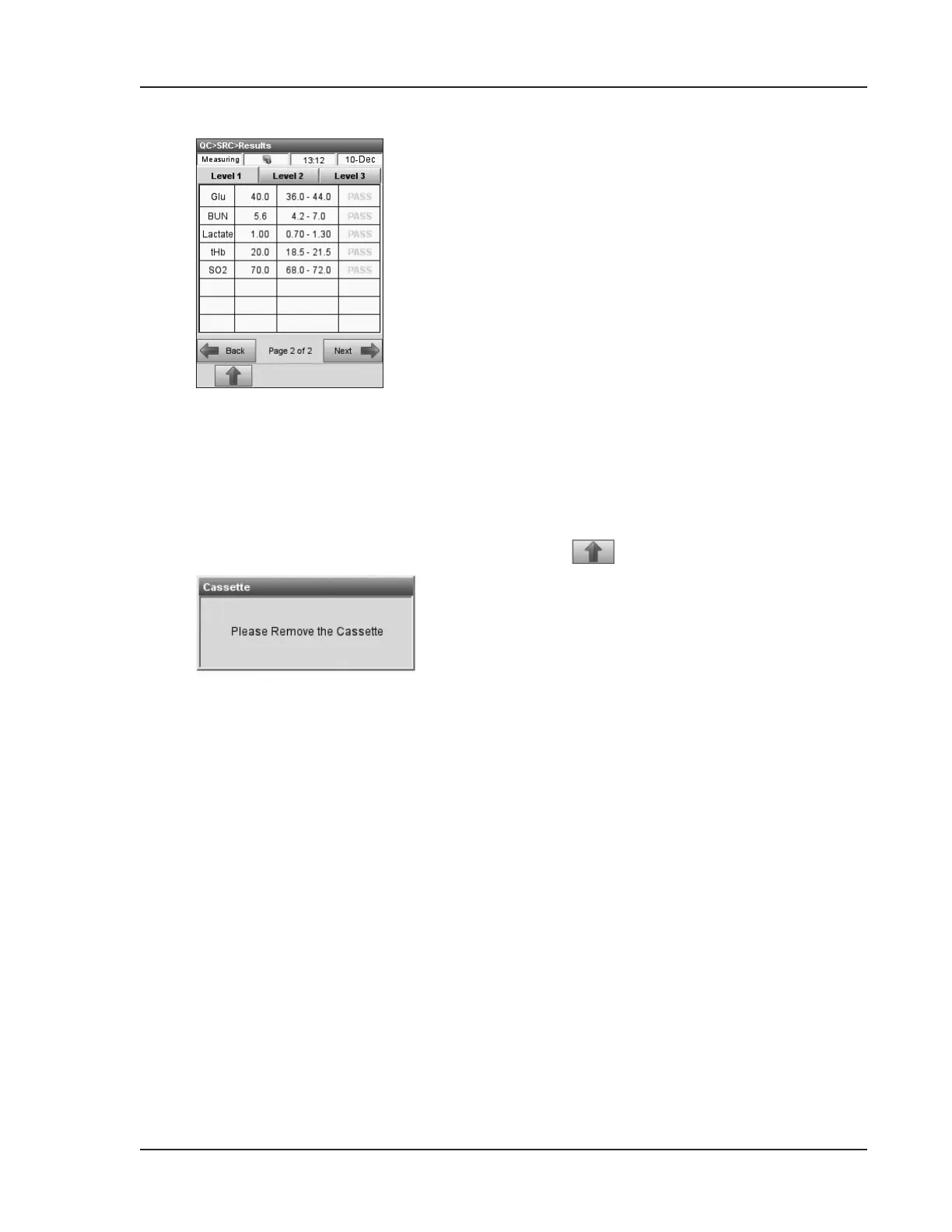

Fig. 4-10 SRC Results (2)
Fig. 4-11 Remove the cassette
